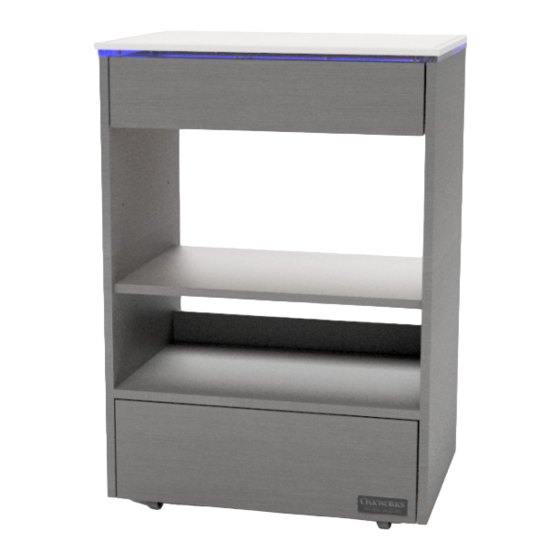

- Page 1 USER MANUAL OAKWORKS ® TROLLEYS Halo Collection Trolleys OAKWORKS Collection Trolleys www.OAKWORKS.com · 717.235.6807...
- Page 2 OAKWORKS , Inc. tial damages in connection with or ® arising out of the furnishing, per- formance, or use of this document OAKWORKS is a registered and the program material which it ® trademark of OAKWORKS , Inc. describes. ®...
-
Page 3: Table Of Contents
Halo 2 Warming Drawers - W2 ..............6 Oakworks Collection Oakworks Slimline - SL ................7 Oakworks Standard - SX ................8 Oakworks 1 Warming Drawer - W1 ............. 9 Oakworks 2 Warming Drawers - W2 ............10 Installation Grounding ......................11 Directions for Use Adjustable Shelf Install .................. -
Page 4: Product Use Description
PRODUCT USE DESCRIPTION / IMPORTANT SAFETY INSTRUCTIONS P R O D U C T U S E D E S C R I P T I O N The product is a spa trolley for commercial use. It is intended for indoor use. The product is intended to be used by trained professionals in a controlled environment. -
Page 5: Important Safety Instructions
1. Unplug from outlet before adding or removing parts. Never operate this product if it has a damaged cord, if it is not working properly, if it has been dropped or damaged, or dropped into water. Contact OAKWORKS® Inc., Customer Service before use at 717.235.6807. -
Page 6: Halo Slimline - Sl
PRODUCT DESCRIPTION - HALO COLLECTION Halo Slimline - SL Optional Storage Drawers Storage Drawer: 16.3” W x 13.8” D x 3” H Storage Load Capacity: 25 lbs. Storage Drawer: 16.3” W x 13.8” D x 4.4” H Storage Load Capacity: 25 lbs. STANDARD SPECIFICATIONS Top Drawer: Pull Out Surface:... -
Page 7: Halo Standard - Sx
PRODUCT DESCRIPTION - HALO COLLECTION Halo Standard - SX Optional Storage Drawers Storage Drawer: 21.8” W x 13.8” D x 3” H Storage Load Capacity: 25 lbs. Storage Drawer: 21.8” W x 13.8” D x 4.4” H Storage Load Capacity: 25 lbs. STANDARD SPECIFICATIONS Top Drawer: Pull Out Surface:... -
Page 8: Halo 1 Warming Drawer - W1
PRODUCT DESCRIPTION - HALO COLLECTION Halo 1 Warming Drawer - W1 Warming Drawer Capacity: 16L Warming Drawer Inside Area: 17” W x 19” D x 3.75” H (483mm x 432mm x 95mm)` Optional Storage Drawers Storage Drawer: 21.8” W x 13.8” D x 3” H Storage Load Capacity: 25 lbs. -
Page 9: Halo 2 Warming Drawers - W2
PRODUCT DESCRIPTION - HALO COLLECTION Halo 2 Warming Drawers - W2 Warming Drawer Capacity: 16L Warming Drawer Inside Area: 17” W x 19” D x 3.75” H (483mm x 432mm x 95mm)` Optional Storage Drawers Storage Drawer: 21.8” W x 13.8” D x 4.4” H Storage Load Capacity: 25 lbs. -
Page 10: Oakworks Slimline - Sl
PRODUCT DESCRIPTION - OAKWORKS COLLECTION Oakworks Slimline - SL Optional Storage Drawers Storage Drawer: 16.3” W x 13.8” D x 3” H Storage Load Capacity: 25 lbs. Storage Drawer: 16.3” W x 13.8” D x 4.4” H Storage Load Capacity: 25 lbs. -
Page 11: Oakworks Standard - Sx
PRODUCT DESCRIPTION - OAKWORKS COLLECTION Oakworks Standard - SX Optional Storage Drawers Storage Drawer: 21.8” W x 13.8” D x 3” H Storage Load Capacity: 25 lbs. Storage Drawer: 21.8” W x 13.8” D x 4.4” H Storage Load Capacity: 25 lbs. -
Page 12: Oakworks 1 Warming Drawer - W1
PRODUCT DESCRIPTION - OAKWORKS COLLECTION Oakworks 1 Warming Drawer - W1 Warming Drawer Capacity: 16L Warming Drawer Inside Area: 17” W x 19” D x 3.75” H (483mm x 432mm x 95mm)` Optional Storage Drawers Storage Drawer: 21.8” W x 13.8” D x 3” H Storage Load Capacity: 25 lbs. -
Page 13: Oakworks 2 Warming Drawers - W2
PRODUCT DESCRIPTION - OAKWORKS COLLECTION Oakworks 2 Warming Drawers - W2 Warming Drawer Capacity: 16L Warming Drawer Inside Area: 17” W x 19” D x 3.75” H (483mm x 432mm x 95mm)` Optional Storage Drawers Storage Drawer: 21.8” W x 13.8” D x 4.4” H Storage Load Capacity: 25 lbs. -
Page 14: Installation
INSTALLATION The trolley come completely assembled, except for the optional work light, and ready to use. Plug the cord into a functioning outlet that is rated for the trolley. Arrange the power cord so that it will not create a tripping hazard. Be sure access to the plug is not blocked for disconnecting the trolley from power. -
Page 15: Directions For Use
DIRECTIONS FOR USE A D J U S T A B L E S H E L F I N S T A L L For trolleys that come with a shelf, insert the provided four (4) metal dowels into the 4 corresponding holes depending on what position the shelf will be at. -
Page 16: Installation Of Optional Hot Towel Cabi
DIRECTIONS FOR USE I N S T A L L A T I O N O F O P T I O N A L H O T T O W E L C A B I Note: Can only be installed on specific Standard, Slimline, and 1 Warming Drawer models. •... -
Page 17: Optional Work Light Install And Operation
DIRECTIONS FOR USE OPTIONAL WORK LIGHT INSTALL AND OPERATION The Halo Trolley Collection and Oakworks Trolley Collection offer an optional work light feature. WORK LIGHT INSTALLATION To install the work light, screw the work light bracket into the trolley using the screws provided. Plug the work light into the power strip located on the back of the trolley. -
Page 18: Halo Collection Accent Lights Operation
DIRECTIONS FOR USE H A L O C O L L E C T I O N A C C E N T L I G H T S O P E R A T I O N The Halo Collection Trolleys offer a multi-color LED light bar. Operate the light bar with the remote as shown below to create customized accent lighting for the trolley. -
Page 19: Cleaning & Disinfection
Follow the cleaners/disinfectant manufacturers’ directions for use. Please note that cleaning and disin- fecting an OAKWORKS ® table is a two part process. First it must be cleaned of any visible soil, then it can be disinfected. OAKWORKS ® recommends that the table be positioned in the flat position during the cleaning process. -
Page 20: Inspections
INSPECTIONS / WARRANTY/ PRODUCT LABEL I N S P E C T I O N S RECOMMENDED REGULAR INSPECTIONS (monthly or local standard) • Check for damage to any cables. • Visually inspect components for obvious damage that could cause problems during operation. RECOMMENDED PERIODIC INSPECTIONS (yearly or local standard) •... -
Page 21: Specifications
SPECIFICATIONS ENVIRONMENTAL CONDITIONS Conditions Temperature Humidity Atmospheric Pressure Normal Use 50° (10°C) to 104° (40°C) 20% to 60% RH 98 to 105 kPa Storage & Transport -20° (-29°C) to 135° (57°C) 20% to 95% RH 98 to 105 kPa ELECTRICAL SPECIFICATIONS Designed for North America Europe... -
Page 22: Halo Trolley Dimensions
SPECIFICATIONS D I M E N S I O N S - H A L O C O L L E C T I O N HALO SLIMLINE DIMENSION: HALO STANDARD DIMENSION: HALO WARMING DRAWER DIMENSION:... -
Page 23: Oakworks Trolley Dimensions
SPECIFICATIONS D I M E N S I O N S - O A K W O R K S C O L L E C T I O N OAKWORKS SLIMLINE DIMENSION: OAKWORKS STANDARD DIMENSION: OAKWORKS WARMING DRAWER DIMENSION:... -
Page 24: Contact Information
USER MANUAL OAKWORKS ® TROLLEYS C O N T A C T I N F O R M A T I O N: OAKWORKS Inc. ® 923 East Wellspring Road New Freedom, PA 17349 Phone: 717.235.6807 FAX: 717.235.6798 www.OAKWORKS.com Original Instructions...
