- Page 1 USER MANUAL PROLUXE Convertible ™ converts in seconds! ...then back to a portable! your portable table converted to a lift table and back again made in the USA with US & imported parts www.OAKWORKS.com · 717.235.6807...
- Page 2 ® damages in connection with or arising out of the furnishing, performance, or OAKWORKS is a registered use of this document and the program ® trademark of OAKWORKS , Inc. material which it describes. ®...
-
Page 3: Table Of Contents
Cleaning & Disinfection Recommended Cleaners/Disinfectants ..................14 Cleaning Process ..........................15 Inspections & Maintenance ........................15 Warranty Information ..........................15 Model Number & Serial Number Proluxe Convertible ..........................16 Specifications Product Specifications ........................17 Environmental Conditions ......................17 Electrical Specifications ........................17 Guidance and manufacturer’s declaration - Electromagnetic emissions ......................18 Recommended separation distances ...................18... -
Page 4: Product Use Description
There are no known contraindications to the use of this equipment. The ProLuxe Convertible should not be used in any other manner than that described within this manual. Use of any unnecessary force or unauthorized procedures could result in injury to practitioner, client or equipment. - Page 5 2. Unplug from outlet before adding or removing parts. 3. Never operate this furnishing if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Contact Oakworks Customer Service before use at 717.235.6807.
-
Page 6: Product Description & Photo

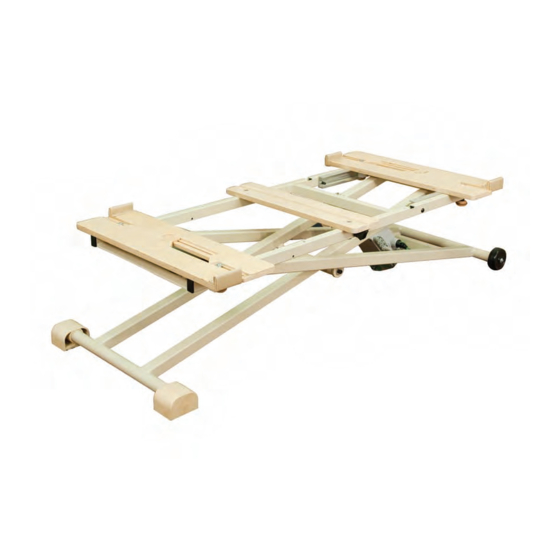

PRODUCT DESCRIPTION knobs (4) wheels (2) electric motor End bumper of portable table support Center alignment groove Adjustable portable table supports (2 sets) Portable table secure strap Strap cleat Hook behind the cleat TABLE SPECIFICATIONS Height Range 20” - 36” Width fits portable tables 27”... -
Page 7: Installation
Arrange the power cord and control cords so that they will not create a tripping hazard. Be sure access to the plug is not blocked for disconnecting the table from power. PREPARE YOUR PROLUXE CONVERTIBLE This is a one time only procedure for each given portable table. - Page 8 9. Once your portable table is on the ProLuxe Convertible, you are ready to align & secure it to the base. Hinge of portable table Center alignment groove A. Align the hinge of the portable B.
- Page 9 INSTALLATION C. Be sure that the knobs are loose D. Keeping the portable table centered, push the adjustable table supports so you can adjust the table supports. together against the sides of your portable table. NOTE: On tables with a backrest, leave a little space between the end bumpers and the backrest before tightening to allow movement of...
-
Page 10: Grounding
INSTALLATION GROUNDING DANGER Risk of Electric Shock - Connect this furnishing to a properly grounded outlet only. Groundi ng fo r 1 20 V o l t p r o d uct s : Thi s pro duc t i s fo r us e o n a n o m i n al 12 0- vol t c ircu it a nd ha s a ground ing pl ug tha t look s li ke the pl ug s h o wn b el o w. -
Page 11: Directions For Use
DIRECTIONS FOR USE CONTROL OPERATIONS CAUTION Be sure the self-locking molded rubber feet are flat side down to ensure safety and stability. The tables offer height positioning with electronic ease. Operate the Foot control and Optional Hand Control as shown below to raise or lower the height of the table. FOOT CONTROL OPERATION DOWN HAND CONTROL OPERATION (OPTIONAL) -
Page 12: Loading Your Portable Table
DIRECTIONS FOR USE LOADING YOUR PORTABLE TABLE This is done every time you remove and replace your portable table. All the adjustments to the base do not need to be done again. 1. Open your portable table on its 2. Remove the shiatsu cables or bolts side. - Page 13 DIRECTIONS FOR USE Follow these steps to place your portable table on top of the ProLuxe Convertible. Make sure you have already completed the “one-time” setup section called “Prepare your ProLuxe Convertible” (page 4-8) 3. With your ProLuxe Convertible at...
-
Page 14: Removing Your Portable Table
1. Remove the portable table secure strap. 2. Lift your portable table 3. Reattach your portable’s cabling system to restore off the ProLuxe Convertible your table to a safe operating configuration. base. Fold your portable table & you’re ready to go! -
Page 15: Moving The Table
DIRECTIONS FOR USE MOVING THE TABLE Before moving any of the Tables, disconnect the power cord from the power outlet. The CAUTION table weighs as much as 200 lbs. (91 kg.) Use extreme caution when lifting the table to move it. Two people are required to move the table safely. DO NOT use the table to transport a patient. -
Page 16: Face Rest & Arm Rest
DIRECTIONS FOR USE FACE REST & ARM HAMMOCK All of your portable table accessories will work with the ProLuxe Convertible. Install according to manufacturer’s instructions. FACE REST ARM HAMMOCK Shown here with QuickLock Face Shown here with QuickLock Face Rest, Rest &... -
Page 17: Cleaning & Disinfection
To reduce the risk of electric shock: DANGER - Always unplug this furnishing from the electrical outlet before cleaning. The following cleaners were tested by OAKWORKS ® and found to be acceptably compatible with all materials used in construction of our tables: Formula 409 ®... -
Page 18: Cleaning Process
- Always unplug this furnishing form the electrical outlet before cleaning. ® Follow the cleaners/disinfectant manufacturers’ directions for use. Please note that cleaning and disinfecting an OAKWORKS table is a two part process. First it must be cleaned of any visible soil, then it can be disinfected. The table should be cleaned as soon as possible after use. -
Page 19: Model Number & Serial Number
MODEL NUMBER & SERIAL NUMBER PROLUXE CONVERTIBLE The model number and serial number are located on the underside of the middle section. Serial Number Model Number 16796025 PXEXFT311873ACTTVN Ser#:PXR563146 PX FT 30 x 22-38 x 72 3M/TT/2S TTSKYBLUE 01/04/2013 Order#:654321 Notes: Sample Product Label Model Numbers and Serial Numbers always start with a letter. -
Page 20: Specifications
SPECIFICATIONS PRODUCT SPECIFICATIONS Table Weights: 115 lbs. (52 kg.) Shipping Weights: 135 lbs. (61 kg.) Lifting Capacity 550 lbs. (250 kg.) ENVIRONMENTAL CONDITIONS Conditions Temperature Humidity Atmospheric Pressure Normal Use 50° (10°C) to 104° (40°C) 20% to 60% RH 98 to 105 kPa Storage &... -
Page 21: Guidance And Manufacturer's Declaration - Electromagnetic Emissions
SPECIFICATIONS Guidance and manufacturer’s declaration - electromagnetic emissions The table is intended for use in the electromagnetic environment specified below. The customer or the user of the table should assure that it is used in such an environment. Emissions Test Compliance Electromagnetic environment - guidance The table uses RF energy only for its internal... -
Page 22: Guidance And Manufacturer's Declaration - Electromagnetic Immunity
SPECIFICATIONS Guidance and manufacturer’s declaration - electromagnetic immunity The table is intended for use in the electromagnetic environment specified below. The customer or the user of the table should assure that it is used in such an environment. Electromagnetic Immunity Test IEC 60601 test level Compliance level environment - guidance... - Page 23 SPECIFICATIONS Guidance and manufacturer’s declaration - electromagnetic immunity The table is intended for use in the electromagnetic environment specified below. The customer or the user of the table should assure that it is used in such an environment. Electromagnetic Immunity Test IEC 60601 test level Compliance level environment - guidance...
-
Page 24: Contact Information
Inc. ® AKWORKS 923 East Wellspring Road New Freedom, PA 17349 Phone: 717-235-6807 FAX: 717-235-6798 www.oakworks.com 3034177 CONFORMS TO: ANSI/AAMI STD ES60601-1 IEC STD 60601-1 3RD EDITION IEC STD 60601-1-2 3RD EDITION IEC STD 60601-1-6 3RD EDITION CERTIFIED TO CAN/CSA STD C22.2 NO. 60601-1...
