- Page 1 USER MANUAL OAKWORKS ® PerformaLift Series 4-Section Electric Salon Top 2-Section Lift-Assist Backrest Top 1-Section Flat Top www.OAKWORKS.com · 717.235.6807...
- Page 2 OAKWORKS , Inc. consequential damages in ® connection with or arising out of the furnishing, performance, or use OAKWORKS is a registered of this document and the program ® trademark of OAKWORKS , Inc. material which it describes. ®...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Product Use Description......................1 Important Safety Instructions Symbol Identification ..................... 1 Safety Instructions ...................... 1-2 Product Description & Photo 4-Section Electric Salon ....................3 Control Operation - Electric Salon ................. 4 2-Section Lift-Assist Backrest ..................5 Control Operation - Lift Assist Backrest ................ 6 1-Section Flat Top ...................... -
Page 4: Product Use Description
There are no known contraindications to the use of this equipment. The PerformaLift Series should not be used in any other manner than that described within this manual. Use of any unnecessary force or unauthorized procedures could result in injury to practitioner, client or equipment. - Page 5 3. Never operate this furnishing if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Contact Oakworks Customer Service before use at 717.235.6807. 4. Keep the cord away from heated surfaces.
-
Page 6: Product Description & Photo

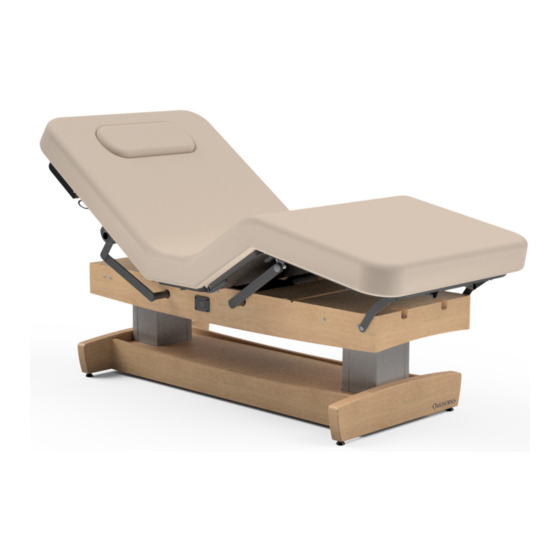

PRODUCT DESCRIPTION PerformaLift 4-Section Electric Salon STANDARD SPECIFICATIONS OPTIONS Motion 1 Powered 20”-34” (51-86 cm.) Height Range Adjustable Breast Comfort (ABC) System Powered ±15º Trendelenburg/ Reverse Wood Finishes Motion 2 Trendelenburg Locking Casters Motion 3 Powered 0-70º Backrest Integrated Heated Top Motion 4 Powered 0-30º... -
Page 7: Control Operation - Electric Salon
Do not sit on backrest or footrest sections. The hood area under the backrest top is not designed for storage. DO NOT use this area for holding anything. Damage can occur to the table. The OAKWORKS PerformaLift Electric Salon Tables offer trendelenburg, height, backrest, footrest and ®... -
Page 8: 2-Section Lift-Assist Backrest
PRODUCT DESCRIPTION PerformaLift 2-Section Lift-Assist Backrest STANDARD SPECIFICATIONS OPTIONS Motion 1 Powered 20”-34” (51-86 cm.) Height Range Adjustable Breast Comfort (ABC) System Powered ±15º Trendelenburg/ Reverse Wood Finishes Motion 2 Trendelenburg Locking Casters Motion 3 Manual 0-80º Backrest Integrated Heated Top Foot Control All powered motions ACCESSORIES... -
Page 9: Control Operation - Lift Assist Backrest
Do not sit on backrest section. The hood area under the backrest top is not designed for storage. DO NOT use this area for holding anything. Damage can occur to the table. The OAKWORKS PerformaLift Lift-Assist Backrest tables offer trendelenburg, height, and optional ABC ®... -
Page 10: 1-Section Flat Top
PRODUCT DESCRIPTION PerformaLift 1-Section Flat Top STANDARD SPECIFICATIONS OPTIONS Motion 1 Powered 20”-34” (51-86 cm.) Height Range Adjustable Breast Comfort (ABC) System Powered ±15º Trendelenburg/ Reverse Wood finishes Motion 2 Trendelenburg Locking Casters Foot Control All powered motions Integrated Heated Top Hand Control All powered motions ACCESSORIES... -
Page 11: Control Operation - Flat Top
PRODUCT DESCRIPTION CONTROL OPERATIONS -FLAT TOP The OAKWORKS PerformaLift Flat Top tables offer trendelenburg, height, and optional ABC ® positioning with electronic ease. Operate the foot and hand control as shown below to raise or lower the Trendelenburg, height and optional ABC functions of the table. -
Page 12: Installation
INSTALLATION All tables come completely assembled and ready to use. Plug the cord into a functioning outlet that is rated for the table. (See Grounding below) Arrange the power cord and control cords so that they will not create a tripping hazard and where the controls are located to your liking and are conveniently accessible. -
Page 13: Directions For Use
DIRECTIONS FOR USE MOVING THE TABLE Before moving the table, disconnect the power cord from the power outlet. The table weighs as CAUTION much as 250 lbs. (113 kg.) Never lift the table by grasping the table top. You could damage the table and the electronics that run the tabletop. -
Page 14: Lift-Assist Backrest Adjustment
DIRECTIONS FOR USE LIFT-ASSIST BACKREST ADJUSTMENT CAUTION Do not sit on the backrest section. TO RAISE THE BACK REST TO LOWER THE BACK REST: Raise the back rest by pressing the lever Press the lever under the head section and under the head section and lifting up to push the back rest down. -
Page 15: Removing Top Pad
DIRECTIONS FOR USE R E M O V I N G T O P P A D The top pad has been designed to be easily removable and replaceable with no tools needed. IF THE TABLE HAS A HEATED TOP: Unplug the table from the wall outlet and disconnect the wires circled from the control box located under the platform. -
Page 16: Adjustable Breast Comfort (Abc) System (Option)
Do not place foreign objects into the ABC System. Only use as intended. • For safety of your client, use a cloth sheet between the ABC System and your client. The OAKWORKS Adjustable Breast Comfort (ABC) System is designed to lower the pressure on breasts and pectoral ®... -
Page 17: Integrated Heated Top (Option)
DIRECTIONS FOR USE INTEGRATED HEATED TOP (OPTION) USING THE INTEGRATED HEATED TOP: The table comes with the option for a fully integrated dual zone heated top pad. Simply press the heating indicator(s) located on the right side rail of the table to the desired heat level. The heat can reach up to 40°C (105°F). -
Page 18: Quicklock Face Rest (Accessory Option)
DIRECTIONS FOR USE QuickLock FACE REST: (ACCESSORY OPTION) • QuickLock Face Rest Weight Limit - 25 lbs (11.3 kg) CAUTION • Do not put excessive weight or pressure on the Face Rest. • Excessive pressure can cause premature failure of the Face Rest. Double articulating action provides nearly limitless positioning options with the QuickLock Face Rest. -
Page 19: Adjustable Side Arm Rest (Accessory Option - Salon Only)
DIRECTIONS FOR USE ADJUSTABLE SIDE ARM RESTS (ACCESSORY OPTION - SALON ONLY) • Do not use the arm rest for client support during the mounting or dismounting of the chair. CAUTION • The arm rest is not designed to support the client’s weight. TO INSTALL THE ARM RESTS: The Arm Rests adjust automatically as the back rest moves to remain parallel to the floor. -
Page 20: Boiance Shelf Support (Accessory Option)
DIRECTIONS FOR USE BOIANCE SHELF SUPPORT: (ACCESSORY OPTION) • Boiance Shelf Support Weight Limit - 25 lbs (11.3 kg) CAUTION • Do not put excessive weight or pressure on the Boiance Shelf Support. • Excessive pressure can cause premature failure of Boiance Shelf Support. USING THE BOIANCE SHELF SUPPORT: The shelf and bracket used together allow you to create the perfect place for clients’... -
Page 21: Bluetooth Speaker (Accessory Option)
DIRECTIONS FOR USE BLUETOOTH SPEAKER (ACCESSORY OPTION) BLUETOOTH SPEAKER ATTACHMENT: Located on the Face Rest Bracket on the underside of the head end of the table. Position Bluetooth Speaker with the magnetic attachment facing up. Plug the cord into the side of the speaker and attach it to the bracket. CONNECTING TO BLUETOOTH SPEAKER: Turn Bluetooth Speaker on by pressing the power button. -
Page 22: Led Lighting (Accessory Option)
DIRECTIONS FOR USE LED LIGHTING (ACCESSORY OPTION) USING THE LED LIGHTING: The table has LED lighting installed for ultimate customization. Use the remote to change the colors, bright- ness, speed, and more. The remote works with RF waves, therefore, the client can use the remote anywhere throughout the room. - Page 23 DIRECTIONS FOR USE TABLE RESET PROCEDURE - HAND CONTROL 1. Press & hold the 2nd set of buttons simultaneously - wait 5-6 seconds for retract to begin. 2. Hold until the columns are fully retracted then continue holding for 5 seconds after full retraction. 3.
-
Page 24: Set Zero Height
DIRECTIONS FOR USE SET ZERO HEIGHT 1. Lower the table to the lowest point. 2. Press and hold the table height down button on the foot or hand control for 10 seconds. 3. When no clicking noise is heard from the Control Box during this process, the zero limits have been reached. -
Page 25: Cleaning & Disinfection
Follow the cleaners/disinfectant manufacturers’ directions for use. Please note that cleaning and disin- fecting an OAKWORKS ® table is a two part process. First it must be cleaned of any visible soil, then it can be disinfected. OAKWORKS ® recommends that the table be positioned in the flat position during the cleaning process. -
Page 26: Inspections & Maintenance
INSPECTIONS / WARRANTY I N S P E C T I O N S RECOMMENDED REGULAR INSPECTIONS (monthly or local standard) • Check for damage to the power, hand control(s) and foot control(s) on all cables. • Visually inspect components for obvious damage that could cause problems during operation. RECOMMENDED PERIODIC INSPECTIONS (yearly or local standard) •... -
Page 27: Model Number & Serial Number
MODEL NUMBER & SERIAL NUMBER MODEL & SERIAL NUMBERS The model number and serial numbers are located on the underside of the foot section of the table top Model Number 16796025 PMXA4EF1T411USXXXX Ser#: PAD123456 06/03/2020 Order#:785461 PerformaLift, 4 Sect XA/4EF/1/T/4/11/US/XX/XX TT Stone Notes: XXX Serial Number Model and Serial numbers always start with a letter. -
Page 28: Specifications
SPECIFICATIONS ENVIRONMENTAL CONDITIONS Conditions Temperature Humidity Atmospheric Pressure Normal Use 50° (10°C) to 104° (40°C) 20% to 60% RH 98 to 105 kPa Storage & Transport -20° (-29°C) to 135° (57°C) 20% to 95% RH 98 to 105 kPa ELECTRICAL SPECIFICATIONS Designed for: North America Europe... - Page 29 THIS PAGE IS INTENTIONALLY LEFT BLANK...
- Page 30 THIS PAGE IS INTENTIONALLY LEFT BLANK...
- Page 31 THIS PAGE IS INTENTIONALLY LEFT BLANK...
-
Page 32: Contact Information
USER MANUAL OAKWORKS ® PerformaLift Series CONTACT INFORMATION: OAKWORKS Inc. ® 923 East Wellspring Road New Freedom, PA 17349 Phone: 717.235.6807 FAX: 717.235.6798 www.oakworks.com 3034177 CONFORMS TO: UL STD 962 Certified to CAN/CSA STD C22.2 #68 Original Instructions Manual Part Number SPA-RA-PM-150...
