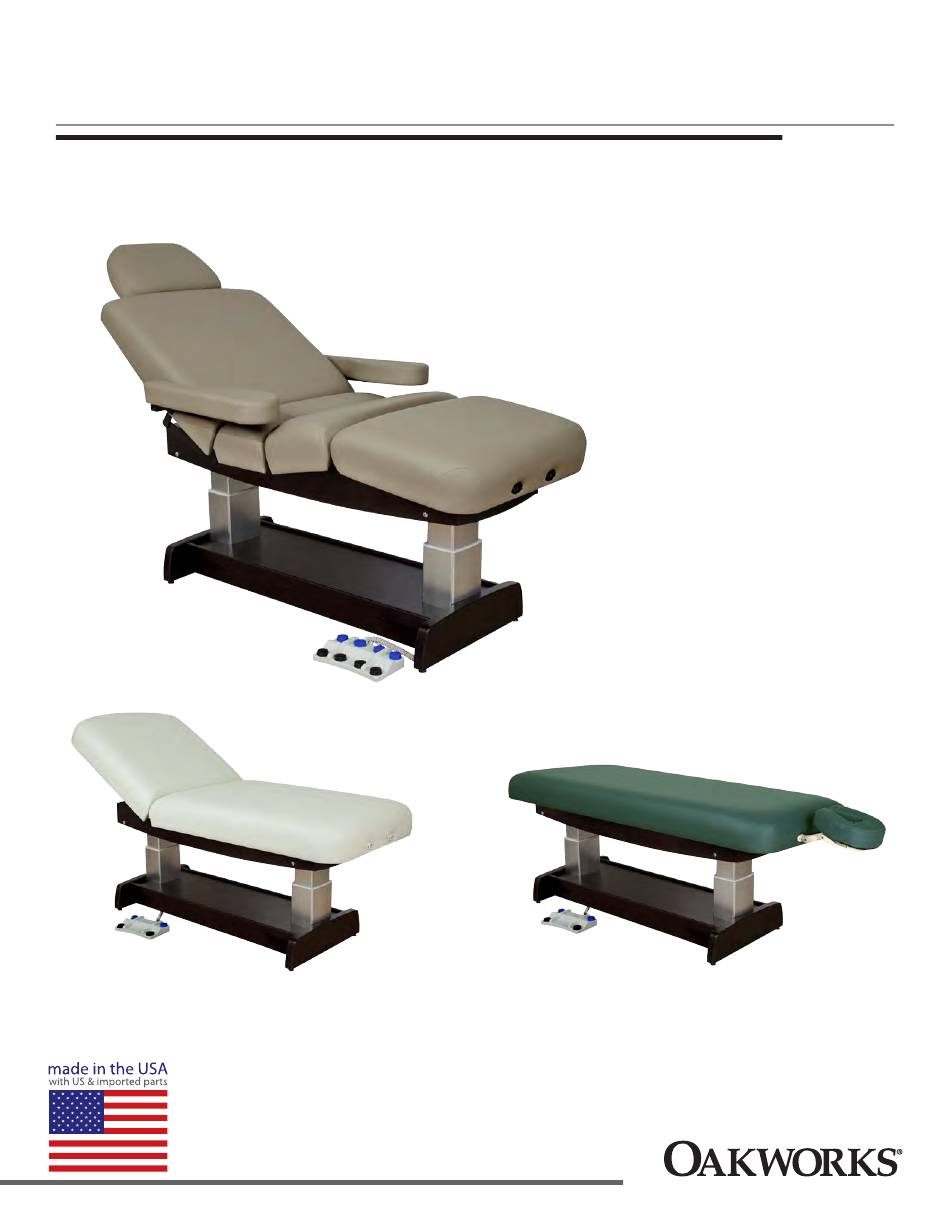

- Page 1 INSTRUCTION/MAINTENANCE MANUAL Series PerformaLift ™ Electric Salon Top Shown with optional Adjustable Side Arm Rests and Universal Table Extender Flat Top Shown with optional Lift-Assist Backrest Top QuickLock Face rest platform ™ and Boiance crescent ™ www.oakworks.com · 717.235.6807...
- Page 2 OAKWORKS , Inc. ® tial damages in connection with or arising out of the furnishing, per- formance, or use of this document OAKWORKS is a registered ® and the program material which it trademark of OAKWORKS , Inc. ® describes.
-
Page 3: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS Symbol Identification ....................1 Important Safety Instructions ................1-2 Section I: Product Description & Photo Electric Salon Top ..................3 Lift Assist Backrest Top................4 Flat Top ......................5 Section II: Installation Grounding ....................6 Leveling ....................... -
Page 4: Symbol Identification
There are no known contraindications to the use of this equipment. The PerformaLift Series should not be used in any other manner than that described within this manual. Use of any unnecessary force or unauthorized procedures could... -
Page 5: Important Safety Instructions
The PerformaLift Series Exam Table should not be used adjacent to or stacked with other equip- ment and that if adjacent or stacked use is necessary, the PerformaLift Series Exam Table should be observed to verify normal operation in the configuration in which it will be used. -
Page 6: Electric Salon Top

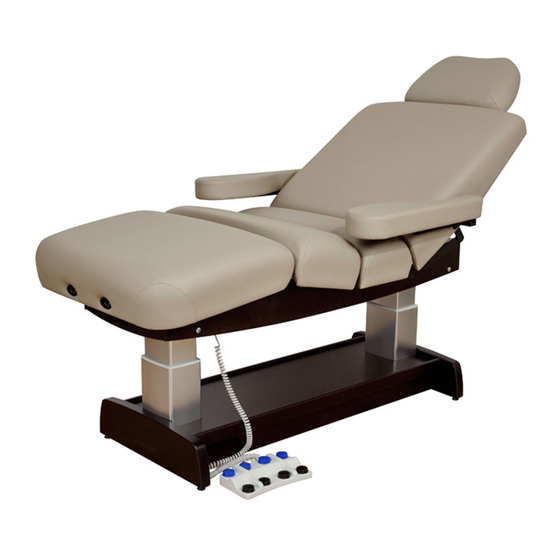

PRODUCT DESCRIPTION PerformaLift ™ Electric Salon Top Universal Table Extender (optional accessory) Arm rests (2) (optional accessory) Electric Lift Towers (2) Accessory outlets (2) Shown with Foot Control optional stain T a b le S p ec s* : • Lifting Capacity: 550 lbs. -
Page 7: Lift Assist Backrest Top
PRODUCT DESCRIPTION PerformaLift ™ Lift-Assist Backrest Top Electric Lift Towers (2) Accessory outlets (2) Foot Control Table Specs* : • Lifting Capacity: 550 lbs. (250 kg) • Height Range: 22”-38” (56 - 97 cm) • Widths: 29” or 31” (74 or 79 cm) • Length: 73”... -
Page 8: Flat Top
PRODUCT DESCRIPTION PerformaLift ™ Flat Top Electric Lift Towers (2) Accessory outlets (2) Shown with optional QuickLock™ Face Rest and Boiance™ Foot Control Crescent Table Specs* : • Lifting Capacity: 550 lbs. (250 kg) • Height Range: 21”-37” (53 - 94 cm) • Widths: 29”... -
Page 9: Section Ii: Installation
INSTALLATION The tables come completely assembled and ready to use. Plug the cord READ AND into a functioning outlet that is rated for the table. SAVE THESE Arrange the power cord and control cords so that they will not create a tripping hazard and where the controls are located to your liking and INSTRUCTIONS are conveniently accessible. -
Page 10: Leveling
INSTALLATION LEVELING INSTRUCTIONS: If Table Will Not Sit Flat on the Floor: The tables are equipped with Leveler Feet that adjust to level the table on uneven floors. To adjust the Leveler Feet to suit common floor dif- ferences, you will need to use a ”... -
Page 11: Moving The Table
INSTALLATION MOVING THE TABLE CAUTION Grasp at base The table weighs as much at low height range corner as 235 lbs. DO NOT lift or move the unit without using The table weighs approximately 235 lbs. (107 kg) You will need 4 people proper safety procedures working together if it is necessary to move the table. -
Page 12: Section Iii: Directions For Use
DIRECTIONS FOR USE FOOT CONTROL OPERATIONS (ELECTRIC TOP) CAUTION The Multi-function Foot Control operates all functions of the table with the touch of a button. Follow the directions below to access these functions. Do not sit on the elevated If a function button does not release, pressing and holding any other function back rest or leg section. -
Page 13: Foot Control
DIRECTIONS FOR USE FOOT CONTROL OPERATIONS (LIFT-ASSIST BACKREST TOP & FLAT TOP) Operate the foot control as shown below to raise or lower the height CAUTION or to adjust the tilt of the table. When operating the table controls be sure to observe all cautions Table Up Head End Up and warnings given in the manual... - Page 14 DIRECTIONS FOR USE HAND CONTROL OPERATIONS (ELECTRIC TOP) CAUTION The Multi-function Hand Control operates all functions of the table with the touch of a button. Follow the directions below to access these functions. Do not sit on the elevated If a function button does not release, pressing and holding any other function back rest or leg section.
-
Page 15: Hand Control
DIRECTIONS FOR USE HAND CONTROL OPERATIONS (LIFT-ASSIST BACKREST TOP & FLAT TOP) Head End Up Head End Down Table Up Table Down... -
Page 16: Locking Casters
DIRECTIONS FOR USE LOCKING CASTERS LOCK UNLOCK To lock, push locking tab down. To unlock, pull tab up as shown. -
Page 17: Arm Rests
DIRECTIONS FOR USE ARM REST INSTALLATION AND ADJUSTMENT INSTRUCTIONS OPTIONAL ACCESSORY AVAILABLE ON 4 SECTION TOP ONLY CAUTION: Do not use the arm rest for customer weight support during the mounting or dismounting of the table. The arm rest is not designed to support the patient’s weight. -
Page 18: Lowered Arm Rest
DIRECTIONS FOR USE LOWERED ARM REST INSTRUCTIONS For a totally comfortable and relaxed patient, add a Lowered Arm Rest Shelf to your lift table. It’s covered in the same luxurious plush padding as the table itself. The Lowered Arm Rest Shelf can be removed when not in use and stored away. -
Page 19: Section Iv: Maintenance & Service
• Check for tears or cracks in the tabletop pads. MAINTENANCE • No specific maintenance tasks are required. • Oakworks medical tables are designed and built to provide many years of dependable service. Please follow local regulations and laws when disposing of the electrical components used in this table. -
Page 20: Troubleshooting
TROUBLESHOOTING DUTY CYCLE The Oakworks PerformaLift Series Exam Table has two lifting columns that control height and Trendelenburg and two actuators to control the electric top. Each of these devices has a duty cycle of approximately 10%, meaning 2 minutes of operation within a 20 minute period. -
Page 21: Foot And Hand Control Replacement
MAINTENANCE & SERVICE QUESTIONS TO ASK BEFORE CALLING CUSTOMER SERVICE • Is the unit plugged in? • Does the outlet have power? • Check all connections of the control box, is everything seated securely? • Do any of the foot control buttons work? FOOT OR HAND CONTROL IMPORTANT REPLACEMENT INSTRUCTIONS... -
Page 22: Parts Identification
MAINTENANCE & SERVICE POWER CORD PLUG PARTS OAKWORKS Part #.: Voltage (AC) Power Cord Plug 5097-11 120v 60 Hz 3 prong grounded hospital grade; North America 5097-3 220v 50 Hz Continental Plug; Europe 5097-4 220v 50 Hz Swiss plug; Switzerland... -
Page 23: Warranty Information
MAINTENANCE & SERVICE WARRANTY INFORMATION View complete warranty details at www.oakworks.com PART NUMBER & SERIAL NUMBER LOCATION Model Number Serial Number PF Series & PerformaLift Tables ™ 3034177 CONFORMS TO: 16796025 PFEXES312572ACTTVNF8 ANSI/AAMI STD ES60601-1 IEC STD 60601-1-6 SER#: PEX123456 Certified to CAN/CSA STD C22.2 No. -
Page 24: Wiring Diagram
MAINTENANCE & SERVICE WIRING DIAGRAM ELECTRICAL SPECIFICATIONS Designed for: North America Europe Input Service 120 VAC/15 amp/60Hz 220 VAC/10 amp/50/60Hz Current Draw 4.0 amps 2.0 amps Maximum 6.0 amps 3.0 amps Momentary Current Consumption Voltage Output to 24 VDC 24 VDC Actuators Electric Shock Class 1 Equipment... -
Page 25: Guidance And Manufacturer's Declaration -Electromagnetic Emissions
NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. EMC Report for Oakworks Inc. on the Performalift Page 75 of 79... -
Page 26: Guidance And Manufacturer's Declaration -Electromagnetic Immunity
Intertek MAINTENANCE & SERVICE Report Number: 101033247ATL-0 19.0 IEC 60601-1-2 (Ed.3) Clause 5 (IEC 60601-1-2 (Ed.3) Clause 5) Data: Guidance and manufacturer’s declaration –electromagnetic immunity The PERFORMALIFT is intended for use in the electromagnetic environment specified below. The customer or the user of the PERFORMALIFT should assure that it is used in such an environment. - Page 27 Intertek MAINTENANCE & SERVICE Report Number: 101033247ATL-0 19.0 IEC 60601-1-2 (Ed.3) Clause 5 (IEC 60601-1-2 (Ed.3) Clause 5) Data: Guidance and manufacturer’s declaration –electromagnetic immunity The PERFORMALIFT is intended for use in the electromagnetic environment specified below. The customer or the user of the PERFORMALIFT should assure that it is used in such an environment.
-
Page 28: Contact Information
Series I N S T R U C T I O N M A N U A L PerformaLift ™ CONTACT INFORMATION: Inc. ® akworks 923 East Wellspring Road New Freedom, PA 17349 Phone: 717-235-6807 FAX: 717-235-6798 www.oakworksmed.com European Authorized Representative Emergo Europe Molenstraat 15 The Hague, 2513 BH Netherlands...
