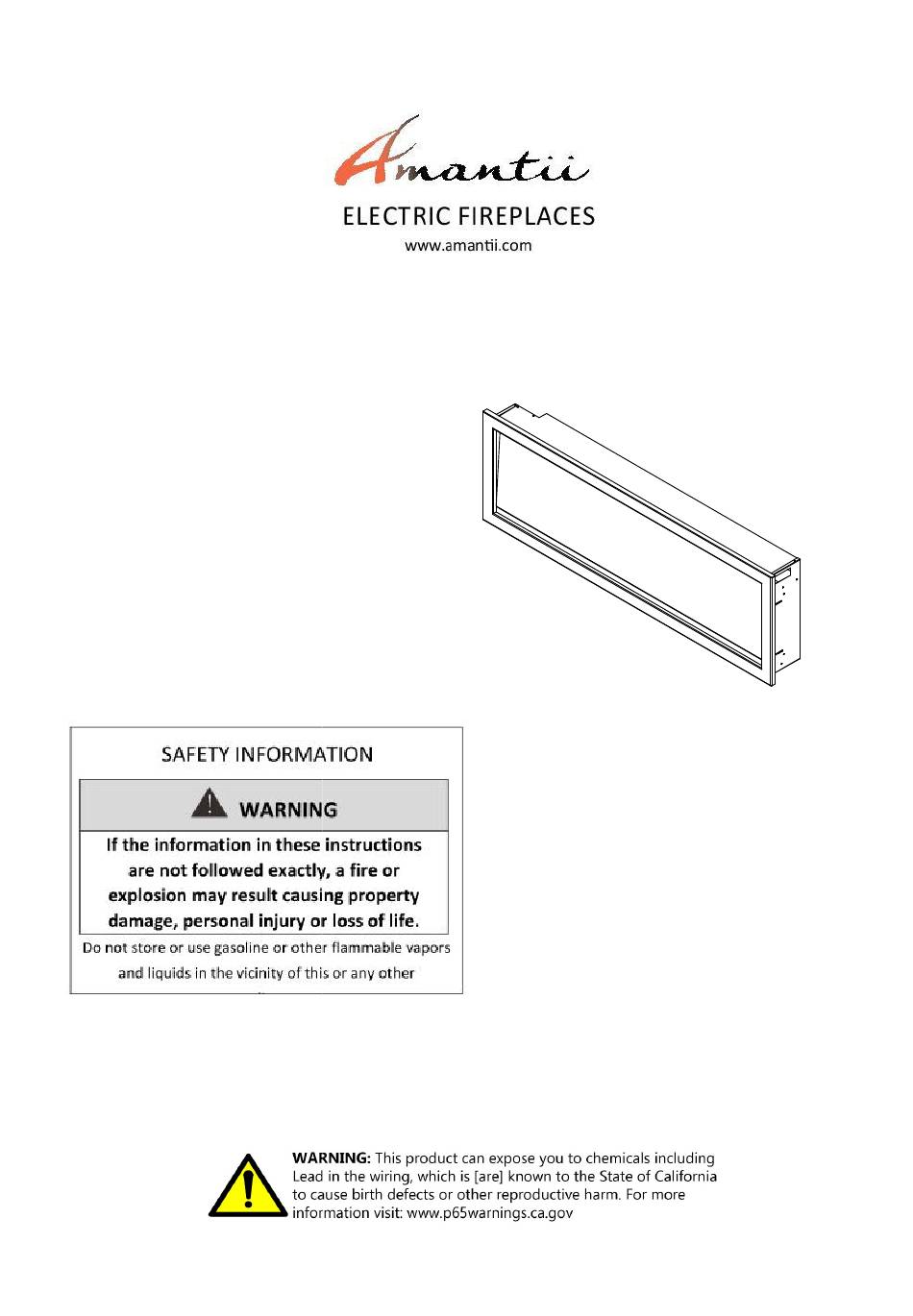

INSTALLATION AND OPERATION INSTRUCTIONS FOR
INSTALLATION AND OPERATION INSTRUCTIONS FOR
INSTALLATION AND OPERATION INSTRUCTIONS FOR
SYM-34
SYM-42
SYM-50
SYM-60
SYM-74
SYM-88
SYM-100
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
INSTALLER: LEAVE THIS MANUAL WITH
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
34-B
42-B
50-B
60-B
74-B
88-B
100-B
1
THE APPLIANCE.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Amantii SYM-42-B
Summary of Contents for Amantii SYM-42-B
- Page 1 INSTALLATION AND OPERATION INSTRUCTIONS FOR INSTALLATION AND OPERATION INSTRUCTIONS FOR INSTALLATION AND OPERATION INSTRUCTIONS FOR SYM-34 34-B SYM-42 42-B SYM-50 50-B SYM-60 60-B SYM-74 74-B SYM-88 88-B SYM-100 100-B INSTALLER: LEAVE THIS MANUAL WITH INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE. THE APPLIANCE.
-
Page 2: Table Of Contents
Please read and carefully follow all of the instruction found in this manual. Please pay special attention to the safety instructions provided in this manual. The instructions included here will assure that you have many years of dependable and enjoyable service from your Amantii product. IMPORTANT INSTRUCTIONS ............................ -
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS 1. Read all instructions before installing or using this heater. 2. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet from the front, sides and rear of the heater. 3. Always unplug heater when not in use. 4. - Page 4 appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Page 5 Cautions Always install the heater in accordance with this guide. If in doubt obtain expert advice. Always make sure the electrical socket is accessible and located adjacent to, but not above the heater. Always disconnect the heater from the electrical supply before moving it, or Do’s carrying out cleaning, maintenance.
-
Page 6: Unpacking And Testing Appliance
UNPACKING AND TESTING APPLIANCE UNPACKING AND TESTING APPLIANCE Carefully remove the appliance from the box. Carefully remove the appliance from the box. Prior to installing the appliance, test to make sure the appliance operates properly by plugging Prior to installing the appliance, test to make sure the appliance operates properly by plugging Prior to installing the appliance, test to make sure the appliance operates properly by plugging the power supply cord into a 120 Volt grounded outlet. -
Page 7: Sym-34-B
SYM-34-B Description This appliance has been tested in accordance Built-in Appliance Voltage 120V AC 60Hz with the UL Standard 2021 for fixed and location dedicated electric room appliances in the United Watts 1200W Max States and Canada. If you need assistance NO HEATER during installation, please contact your local MOTOR HEATER... -
Page 8: Sym-42-B
SYM-42-B Description This appliance has been tested in accordance Built-in Appliance Voltage 120V AC 60Hz with the UL Standard 2021 for fixed and location dedicated electric room appliances in the United Watts 1200W Max States and Canada. If you need assistance... -
Page 9: Sym-50-B
SYM-50-B Description This appliance has been tested in accordance Built-in Appliance Voltage 120V AC 60Hz with the UL Standard 2021 for fixed and location dedicated electric room appliances in the United Watts 1200W Max States and Canada. If you need assistance NO HEATER during installation, please contact your local MOTOR HEATER... -
Page 10: Sym-60-B
SYM-60-B Description This appliance has been tested in accordance Built-in Appliance Voltage 120V AC 60Hz with the UL Standard 2021 for fixed and location dedicated electric room appliances in the United Watts 1200W Max States and Canada. If you need assistance NO HEATER during installation, please contact your local MOTOR HEATER... -
Page 11: Sym-74-B
SYM-74-B Description This appliance has been tested in accordance Built-in Appliance Voltage 120V AC 60Hz with the UL Standard 2021 for fixed and location dedicated electric room appliances in the United Watts 1200W Max States and Canada. If you need assistance NO HEATER during installation, please contact your local MOTOR HEATER... -
Page 12: Sym-88-B
SYM-88-B Description Built-in Appliance Voltage 120V AC 60Hz This appliance has been tested in accordance with the UL Standard 2021 for fixed and location Watts 1200W Max dedicated electric room appliances in the United NO HEATER States and Canada. If you need assistance MOTOR HEATER during installation, please contact your local Appliance Width... -
Page 13: Sym-100-B
SYM-100-B Description This appliance has been tested in accordance Built-in Appliance with the UL Standard 2021 for fixed and Voltage 120V AC 60Hz location dedicated electric room appliances in Watts 1200W Max the United States and Canada. If you need NO HEATER assistance during installation, please contact MOTOR HEATER... -
Page 14: Bathroom Use
FOR BATHROOM USE If this unit is installed in a bathroom it must be protected by a GIF receptacle or circuit. If receptacle is used it must be readily accessible. To prevent electric shock, please be aware that this unit is an electrical appliance that is NOT watertight and must be installed as to prevent water from entering unit. -
Page 15: Outdoor Installations
OUTDOOR INSTALLATIONS The SYM-B series electric fireplaces are suitable for installation in outdoor areas protected from direct water impingement. In addition to maintaining the listed mantel and combustibles clearances, a rain protection overhang factor of 1/2 shall be constructed to the front and to each side of the installed appliance. -
Page 16: Installation-Wall Mount
INSTALLATION-WALL MOUNT WALL MOUNT NOTE: Due to the many different materials used to build NOTE: Due to the many different materials used to build walls, it is highly recommended that walls, it is highly recommended that you consult your local builder before you install this appliance on a wall. you consult your local builder before you install this appliance on a wall. -
Page 17: Installation- Built-In
120 Volt grounded outlet. The rough wall opening size of the fireplace: The rough wall opening size of the fireplace: W(“) D(“) H(“) SYM-34-B 33 3/8 SYM-42-B 43 1/4 SYM-50-B 51 1/4 SYM-60-B 61 1/4 SYM-74-B 75 1/4... - Page 18 2. When the trim is removed, take off the front glass panel. When the trim is removed, take off the front glass panel. 3. Unscrew the 2 screws located on each side and take off the inner side steel panels. Unscrew the 2 screws located on each side and take off the inner side steel panels.
- Page 19 4. Put the trim back onto the appliance and fasten with Put the trim back onto the appliance and fasten with screws.(NOTE: This step is to make screws.(NOTE: This step is to make sure that the fireplace fits the wall opening well and there is no gap between the trim and sure that the fireplace fits the wall opening well and there is no gap between the trim and sure that the fireplace fits the wall opening well and there is no gap between the trim and the wall after installation)
- Page 20 6. Remove the trim following STEP 1. Screw back the inner side steel panels. Remove the trim following STEP 1. Screw back the inner side steel panels. Remove the trim following STEP 1. Screw back the inner side steel panels. 7.
-
Page 21: Installation- Semi-Flush Built-In
See dealer for more details. The rough wall opening size of the fireplace: The rough wall opening size of the fireplace: W(“) D(“) H(“) SYM-34-B 33 3/8 SYM-42-B 43 1/4 SYM-50-B 51 1/4 SYM-60-B 61 1/4 SYM-74-B 75 1/4... - Page 22 2. When the trim is removed, take off the front glass panel. When the trim is removed, take off the front glass panel. 3. Unscrew the 2 screws located on each side and take off the inner side steel panels. Unscrew the 2 screws located on each side and take off the inner side steel panels.
- Page 23 4. Put the trim back onto the appliance and fasten with screws.(NOTE: This step is to make sure that the fireplace fits the wall opening well and there is no gap between the trim and the wall after installation) 5. Put the fireplace into the wall opening and fix it to the wall by screwing 2 screws each side.
- Page 24 6. Remove the trim following STEP 1. Screw back the inner side steel panels. 7. Put back the front glass panel and screw back the trim after you finish the media decoration.
-
Page 25: Hard- Wire Installation
HARD- WIRE INSTALLATION WIRE INSTALLATION Turn off the appliance completely and let cool before servicing. Only a qualified Turn off the appliance completely and let cool before servicing. Only a qualified Turn off the appliance completely and let cool before servicing. Only a qualified service person should service and repair this electric appliance. -
Page 26: Decorative Media Installation
MEDIA OPTIONS The only media that comes with this appliance is ‘Clear decorative media’. Consumers may The only media that comes with this appliance is ‘Clear decorative media’. Consumers may The only media that comes with this appliance is ‘Clear decorative media’. Consumers may purchase optional decorative media if they choose. -
Page 27: Operation
OPERATION The fireplace can be operated either by the switches located on the left bottom of the fireplace unit or by supplied remote control. Plug the fireplace into a 15 Amp wall socket. MANUAL OPERATION 1. Press the Heat button repeatedly to set the heater to desired heat setting. The heater indicator LED will glow which shows the current heater settings. -
Page 28: Remote Control Operation
REMOTE CONTROL OPERATION For remote to function make sure the heater is plugged in and the main power switch located on the bottom left hand side is at position I. Important: When operating the remote make sure you point the remote to the center of the fireplace each time you press the button. -
Page 29: Installing Wall Thermostat
INSTALLING WALL THERMOSTAT INSTALLING WALL THERMOSTAT WALL THERMOSTAT WIRING DIAGRAMS WALL THERMOSTAT WIRING DIAGRAMS NOTE: The wall thermostat will be functioning when the heater is on the TEMP. setting. wall thermostat will be functioning when the heater is on the TEMP. setting. wall thermostat will be functioning when the heater is on the TEMP. -
Page 30: Replacement Parts
REPLACEMENT PARTS PART NUMBER DESCRIPTION SYM-34-B SYM-42-B SYM-50-B SYM-60-B 10701358 10701359 10701346 10701347 FRONT GLASS 3200503 3201503 3202503 3203503 TRIM 10702224 10702225 10702210 10702211 EMBER BED GLASS 10702217 10702218 10702219 10702220 BACK GLASS 601141B 601141B 601141 601141 LED STRIP FOR... - Page 31 PART NUMBER DESCRIPTION SYM-74-B SYM-88-B SYM-100-B 10701348 10701363 10701364 FRONT GLASS 3204503 3205503 3206503 TRIM 10702212 10702226 10702227 EMBER BED GLASS 10702221 10702222 10702223 BACK GLASS 601141 601141 601141 LED STRIP FOR FLAME 601142 601142 601142 601136B 601136B 601136B LED STRIP FOR EMBER BED 601137B 601137B...
-
Page 32: Exploded View
EXPLODED VIEW... -
Page 33: Truble Shooting
TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Dim or no flame Flame LED’s are burnt out Inspect the LED’s and replace them if necessary Back black cloth is falling off Change a new flicker and back and roll the flicker black cloth Ember bed is not Ember LED’s are burnt out Inspect the ember bed LED’s and... -
Page 34: Service History
SERVICE HISTORY This heater must be serviced annually depending on usage. Date Dealer Service Technician Service Performed Special Concerns Name Name NOTES:... -
Page 35: Warranty
Amantii warrants such products to be free from defects in material and workmanship for a period of two (2) years from the date of the first purchase of such products. The limited two (2) year warranty period for products also applies to any implied warranties that may exist under applicable law. Some...
