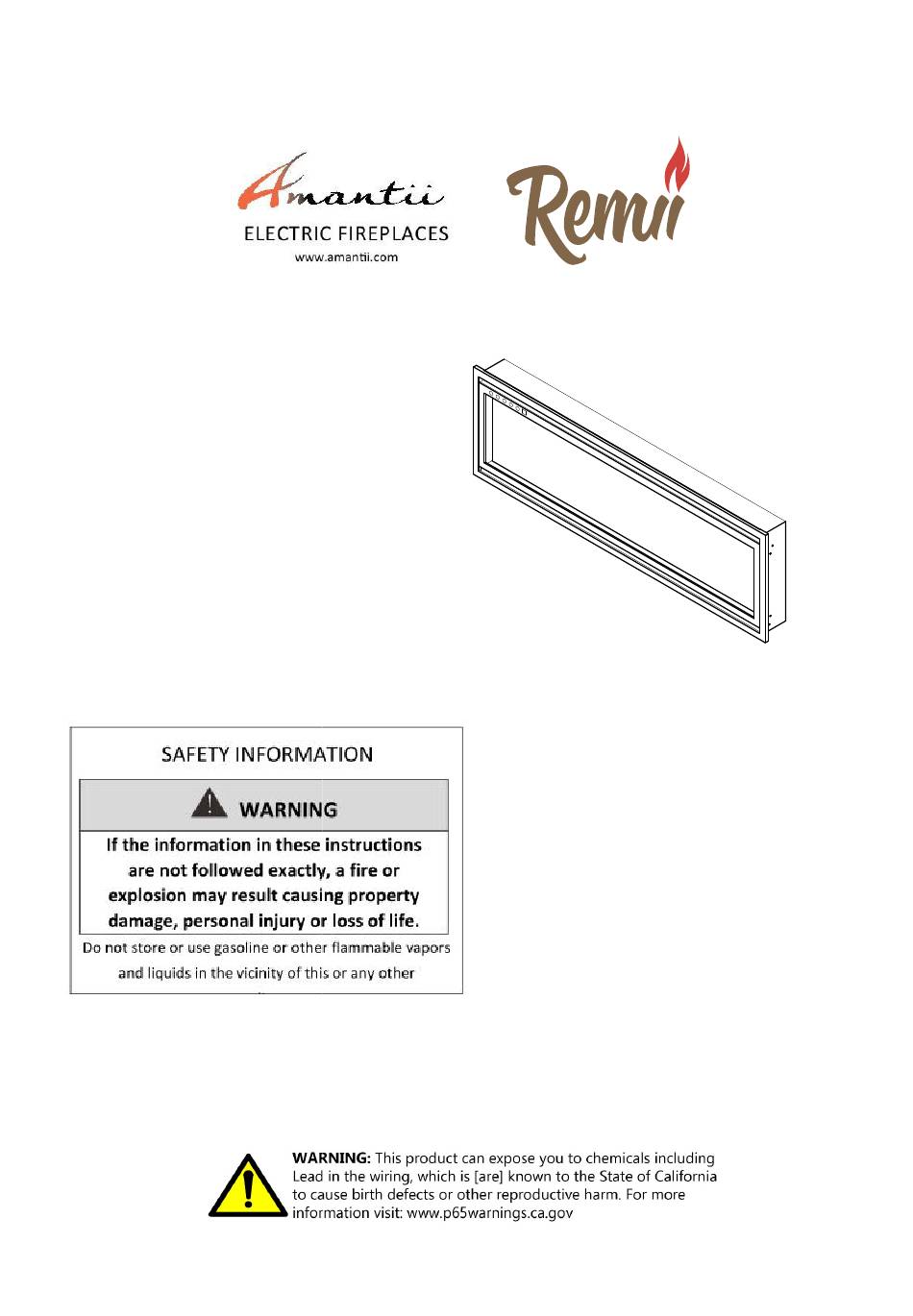

- Page 1 INSTALLATION AND OPERATION INSTRUCTIONS FOR INSTALLATION AND OPERATION INSTRUCTIONS FOR INSTALLATION AND OPERATION INSTRUCTIONS FOR SYM-SLIM-42 (WM-SLIM- 45) INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE. INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE. INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE. CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE. CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
-
Page 2: Table Of Contents
TABLE OF CONTENTS Please read and carefully follow all of the instruction found in this manual. The instructions included here will assure that you have many years of dependable and enjoyable service from your Amantii Electric Fireplace. IMPORTANT INSTRUCTIONS ............................ -
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS 1. Read all instructions before installing or using this heater. 2. Keep combustible materials, such as furniture, pillows, bedding, papers, clothes and curtains at least 3 feet from the front, sides and rear of the heater. 3. Always unplug heater when not in use. 4. - Page 4 21. Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided. 22. If the glass is damaged, do not use the heater to avoid a hazard. 23.
- Page 5 Cautions Always install the heater in accordance with this guide. If in doubt obtain expert advice. Always make sure the electrical socket is accessible and located adjacent to, but not above the heater. Always disconnect the heater from the electrical supply before moving it, or Do’s carrying out cleaning, maintenance.
-
Page 6: Unpacking And Testing The Appliance
UNPACKING AND TESTING APPLIANCE UNPACKING AND TESTING APPLIANCE Carefully remove the appliance from the box. Carefully remove the appliance from the box. Prior to installing the appliance, test to make sure the appliance operates properly by Prior to installing the appliance, test to make sure the appliance operates properly by Prior to installing the appliance, test to make sure the appliance operates properly by plugging the power supply cord into a 120 Volt grounded outlet. -
Page 7: Sym-Slim-42(Wm-Slim-45)
SYM-SLIM-42(WM-SLIM-45) Description This appliance has been tested in accordance Built-in Appliance Voltage 120V AC 60Hz with the UL Standard 2021 for fixed and location dedicated electric room appliances in the United Watts 1500W Max States and Canada. If you need assistance NO HEATER during installation, please contact your local MOTOR HEATER... -
Page 8: Wall Mount Installation
INSTALLATION-WALL MOUNT WALL MOUNT NOTE: Due to the many different materials used to build walls, it is highly recommended that you consult your local builder before you install this appliance on a wall. 1. Select a location that is not prone to moisture and is located at least 0.91 m or 3 feet away from combustible materials such as curtains or drapes, furniture, bedding, paper, etc. -
Page 9: Built In Installation
INSTALLATION- BUILT-IN NOTE: Due to the many different materials used to build walls, it is highly recommended that NOTE: Due to the many different materials used to build walls, it is highly recommended that NOTE: Due to the many different materials used to build walls, it is highly recommended that you consult your local builder before you install this appliance on a wall. - Page 10 2. Unscrew the 2 screws located on each side and take off the inner Unscrew the 2 screws located on each side and take off the inner side steel panels. side steel panels. screws inner side steel panels screws 3. Put the fireplace into the wall op Put the fireplace into the wall opening and fix it to be the wall.
- Page 11 4. Screw back the inner side steel panel. Screw back the inner side steel panel. Screw back the inner side panel that you removed at STEP 2. 5. Put back the front glass panel after you finish the media back the front glass panel after you finish the media decoration.
-
Page 12: Hardwire Installation
HARDWIRE INSTALLATION WIRE INSTALLATION Turn off the appliance completely and let cool before servicing. Only a qualified service person should service and repair this electric appliance. If it is necessary to hard-wire this appliance, a qualified electrician must remove the cord connection, and wire the appliance directly to the house hold wiring. - Page 13 3. Connect the uncovered wiring with 14 A WG wiring (not provided with the appliance) by a wiring connecting cap which you can find in the manual bag. Please make sure the live wire goes into the “L”, the neutral wire into “N” and the ground wire into “G”. 4.
-
Page 14: Media Options
MEDIA OPTIONS The only media that comes with this appliance he only media that comes with this appliance is ‘Clear glass’. Consumers may purchase ’. Consumers may purchase optional decorative media if they choose. See dealer for more details. optional decorative media if they choose. See dealer for more details. Clear glass DECORATIVE MEDIA INSTALLATION DECORATIVE MEDIA INSTALLATION... -
Page 15: Operation
OPERATION The fireplace can be operated either by the touch panel located on the left front top side of The fireplace can be operated either by the touch panel located on the left front top side of The fireplace can be operated either by the touch panel located on the left front top side of the fireplace, or by supplied remote control. -
Page 16: Remote Control Operation
REMOTE CONTROL OPERATION For remote to function make sure the fireplace is plugged in and the remote has batteries. Important: When operating the remote make sure you point the remote to the center of the fireplace. Each time you press the button, the buzzer inside the unit will beep once. It takes some time for the receiver to respond to the transmitter. - Page 17 third time to turn on the AUTO mode, press to set the temperature to switch temperature unit between Celsius and Fahrenheit. Press this button to adjust the speed of the flame. There are 3 options: High- Medium- Low. Press this button to turn on and off the ember bed light. When in ON position, the display screen of the remote control shows AD 1, when the number “1”...
- Page 18 When the 7 day timer’s set, the icon will be displayed on the LCD screen of the remote control. Press again to cancel the 7 da y timer and the icon will disappears. NOTE: If the 7 day timing and the general timing are set at the same time, the system will respond to an earlier shutdown time.
-
Page 19: Wifi Operation
WIFI OPERATION INSTALL TuyaSmart life There are 2 ways to install TuyaSmart; 1. Search for “TuyaSmart life” in the APP store on your phone, download and install. 2. Scan the QR code below with your mobile phone. WIFI SETTING AND FIREPLACE OPERATION 1. - Page 20 FIG.4 3. Press (flame button) on the touch panel of the fireplace for more than 5 seconds when the fireplace in standby mode. There will be 2 beeps come out from the fireplace and the (flame button) will flash as well indicating that Wi-fi is in EZ mode. Then please confirm to go next.
- Page 21 6. Now you are in the interface like FIG.7. You can operate the fireplace via Wi-fi. FIG.7...
-
Page 22: Installing Wall Thermostat
INSTALLING WALL THERMOSTAT INSTALLING WALL THERMOSTAT WALL THERMOSTAT WIRING DIAGRAMS WALL THERMOSTAT WIRING DIAGRAMS TEMP. setting. TEMP. setting. NOTE: The wall thermostat will be functioning when the heater is on the stat will be functioning when the heater is on the stat will be functioning when the heater is on the TEMP. -
Page 23: Replacement Parts
REPLACEMENT PARTS PART NUMBER DESCRIPTION SYM-SLIM-42/WM-SLIM-45 3236503 TRIM FRONT GLASS 3236507 ASSEMBLY 107022362 TRAY GLASS 107022361 BACK GLASS 601144 FLAME LED STRIP 10101501 FLAME MOTOR 3236505 FLICKER ASSEMBLY 601129G CIRCUIT BOARD METAL SIDE PANEL 3236010 RIGHT SIDE TEMPERATURE 10114001B SENSOR 601300M-2 TOUCH PANEL BLOWER AND... -
Page 24: Exploded View
EXPLODED VIEW... -
Page 25: Trouble Shooting
TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Dim or no flame Flame LED’s are burnt out Inspect the LED’s and replace them if necessary Back black cloth is falling off Change a new flicker and back and roll the flicker black cloth Ember bed is not Ember LED’s are burnt out Inspect the ember bed LED’s and... -
Page 26: Service History
SERVICE HISTORY This heater must be serviced annually depending on usage. Date Dealer Service Technician Service Performed Special Concerns Name Name NOTES:... -
Page 27: Warranty
(2) year limited warranty period, Amantii will replace such defective product or part without charge. If Amantii is unable to replace such product, or if replacement is not commercially practicable or cannot be timely done, in its sole discretion Amantii may, in... - Page 28 Amantii does not cover labor or service charges to replace said parts. Limitations In no event will Amantii, including without limitation any of its directors, officers, shareholders, employees,...
