Specifications - Altronix LINQ8PD Installation And Programming Manual

Altronix LINQ8PD(CB) network power distribution module facilitates monitoring, reporting and control of one (1) or two (2) low voltage AC or supervised DC power supply/chargers
over the network. Reports diagnostics via Email/SNMP notifications greatly reducing system downtime and eliminating unnecessary service calls. LINQ8PD(CB) retrofits with most
currently installed multi-output power supply/chargers.
Input Power:
• Input1/Input2: 12VAC-28VAC @ 12.5 amp each or
12VDC/28VDC @ 12.5 amp each
Note: Do connect AC and DC simultaneously to
INP1 and INP2
Outputs:
• Eight (8) fused or PTC protected outputs:
- LINQ8PD: Blade fuses are rated 3 amps
- LINQ8PDCB: PTCs are rated 2.5 amps
• Power output(s) can be locally or remotely controlled
• Surge Suppression
Status Monitoring:
• Power Supply(ies) output voltage and load
• Voltage and load of each output
• FACP trigger and reset status
• Unit temperature (Celsius)
• Power Supply AC and Battery status
• Battery health

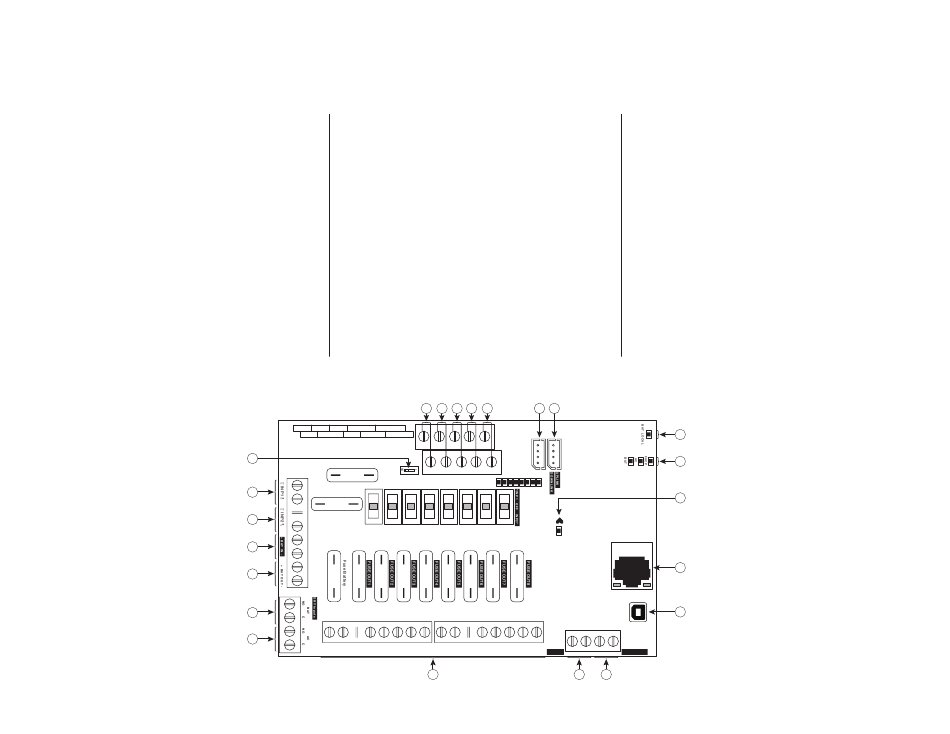

LINQ8PD - Fig. 1
- 2 -

Specifications:

Programming Features:
• Power Supply(ies) voltage and load limits (High/Low)
• FACP trigger type (wet or dry-N.O./N.C.)
• Input Function (FACP reset/tamper)
• Output Reset Trigger (N.O./N.C.)
• Battery Monitor Configuration:
- Capacity
- Charge Level
- Max. Charge and Discharge Current
- Service Date
• Configurable Output Relay(s)
• Individual Output Configuration:
- Device ID
- Voltage and Current Limits (High/Low)
- FACP Trigger Setting (latching/non-latching/inactive)
- Battery Backup
Terminal/Connector Identification:
A B C D E
GND GND RET-- FACP IN-- FACP RLY 2
RESET FACP EOL RET+ FACP IN+ FACP RLY 1
V
15
EOL OFF
U
15
T
S
15 3 3 3 3
R
Q
P
-- OUT1 + -- OUT2 + -- OUT3 + -- OUT4 +
--
Available from A1 Security Cameras
www.a1securitycameras.com email: sales@a1securitycameras.com
Overview:
F G
LINQ8PD
Altronix Corp.
Brooklyn, NY 11220
3 3 3 3
-- OUT5 + -- OUT6 + -- OUT7 + -- OUT8 +
AC Fail
NC C NC
O N M
Network Security:
• Secure Socket Layer (SSL)
Reporting:
• SNMP trap messages.
• E-mail notifications
• Event Log tracks history
Fire Alarm Interface:
• Supervised FACP disconnect (Latching or Non-Latching)
• FACP reset (N.C. or N.O.)
Environmental:
• Operating temperature: -20° to 49°C (-4° to 120.2°F).
• Storage temperature: -30ºC to 70ºC (-22º to 158ºF).
Mechanical:
• Board Dimensions: 5.5"L x 3.625"W x 0.96"H
(139.7mm x 92.07mm x 24.38mm)
• Product weight (approx.): 0.4 lbs. (0.18kg)
• Shipping weight (approx.): 0.7 lbs. (0.32kg)
H
I
J
K
L
Battery Fail
C
LINQ8PD/LINQ8PDCB
