Knoll Pop Up Installation Instructions

Pop Up Easy Screen, Cardboard
™

1. Prepare

Clean worksurface with 50:50 IPA and water
mixture and allow to completely dry to ensure
best adhesion of the Velcro attachments on
the bottom of the screens.

2. Unpack

Remove set of 3-piece surround from shipping
box and separate the screen corners from the
back panel. The back panel can be found
inserted into one of the screen corner
assemblies.

3. Chose a configuration

The corner pieces are 23" x 29" and can be
configured in two ways on the worksurface: (A)
23"W x 29"L (A) or 29"W x 23"L (B). (Fig. 1)
Note: The screen corners are continuous on
one side and have a relief cut on the other
side. Corner screens are formed by folding the
corner panel in on itself to form a 90-deg angle
where the cutout section is inside, and the flat
edges are outside.
The back panel screen is red on one side and
brown on the other side. The user should
decide which color displays outward before
assembly. This is difficult to change after
assembly.

4. Assemble the first corner

+ Fold the corner screen to form a 90-degree
angle. (Fig. 2)
+ Peel off the backer on the Velcro tabs along
the 3" base of the corner screen. (Fig. 2)
+ Align the corner screen flush with the outer
edges of the worksurface. Press down firmly
to adhere the screen to work surface. (Fig. 3)
Hint: It is best to do this one side (two Velcro
tabs) at a time to ensure perfect alignment
with the worksurface.
Continued...
June 2020

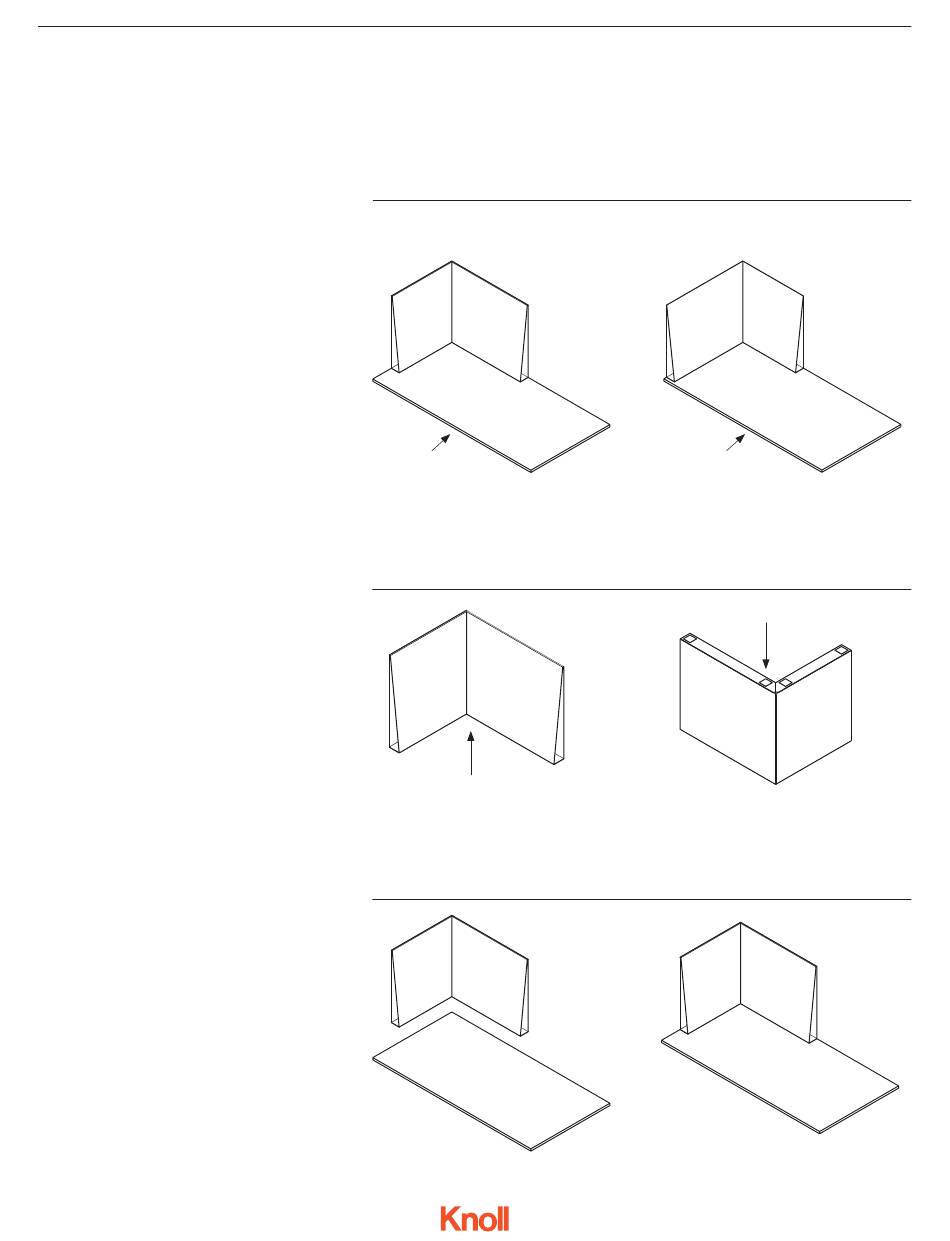

Fig. 1
