1. Connect the DC1332B to a DC590 USB serial controller
using the supplied 14-conductor ribbon cable.
2. Connect the DC590 to the host PC with a standard
USB A/B cable.
3. Run the QuikEval™ evaluation software supplied
with the DC590 or download it from:
www.linear.com/software. The correct program will
be loaded automatically.
2
Arrow.com. Arrow.com.
Downloaded from Downloaded from
Options are available to display the DAC output in voltage,
hex code, or decimal count. Additionally, the reference
voltage may be changed to reflect an actual measured
value, such that the output voltage matches the theoreti-
cal output voltage. The reference mode may be changed
from internal reference to external reference.
Features may be periodically added to the software. See
the software's help menu for the latest information.

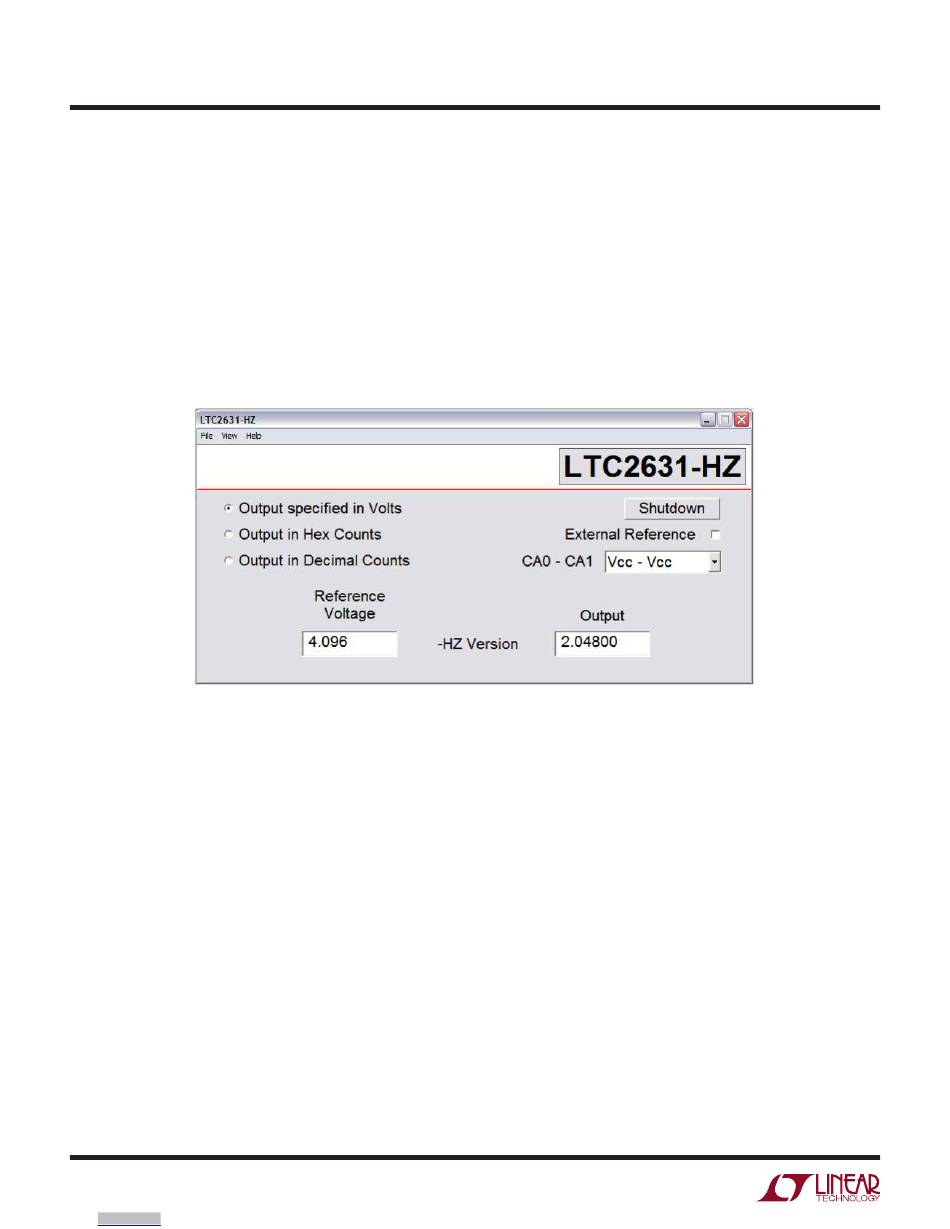

Figure 2. QuikEval Software
