BWT TFPPKIT Installation And Operating Instructions page 2

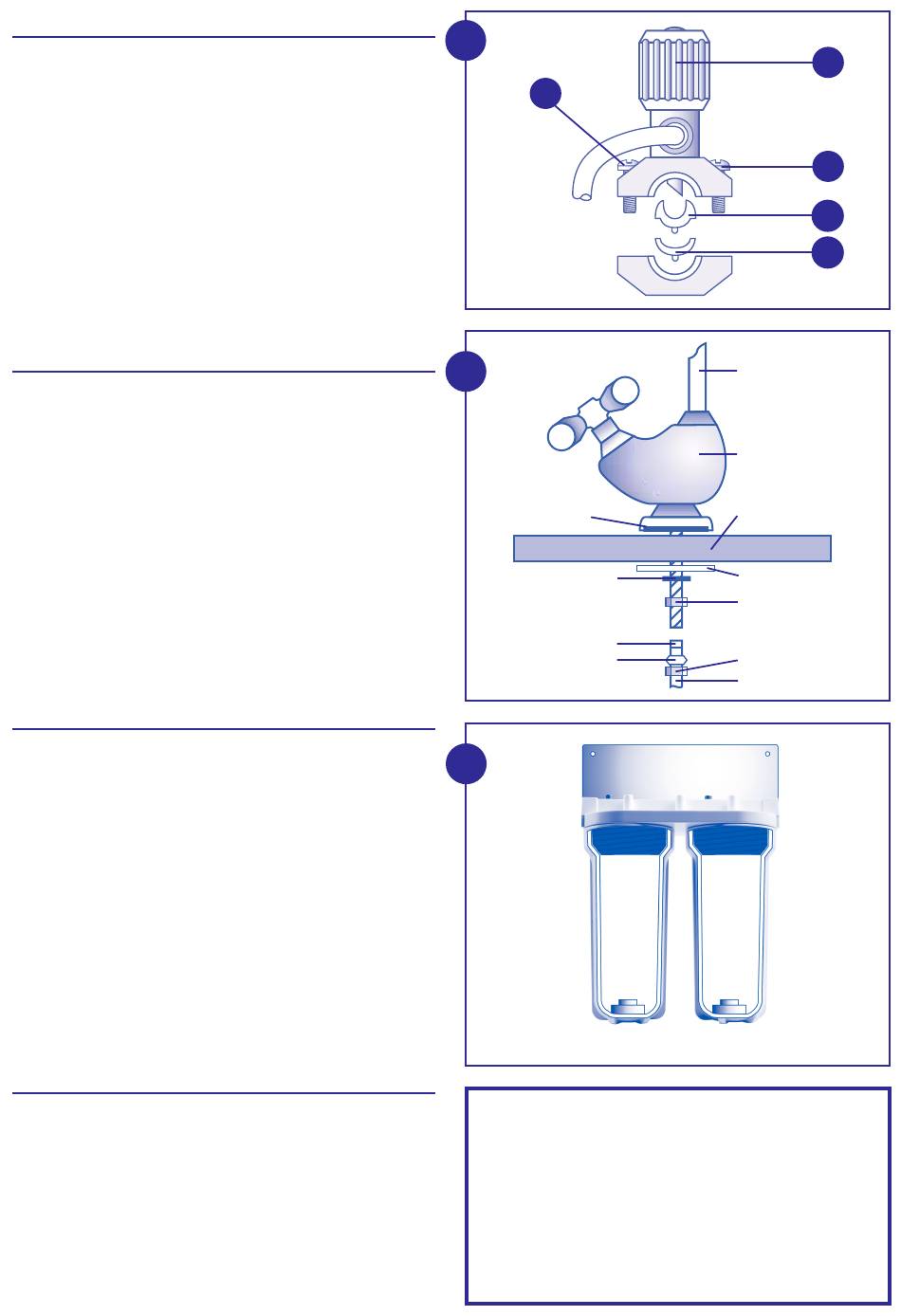

Installing the Saddle Valve
Before carrying out any installation TURN OFF THE WATER SUPPLY
AT THE MAIN STOP COCK.
NOTE:
Saddle valve must be installed on a 50 mm (2") long, straight-
walled section of 10 mm (3/8") to 23 mm (7/8") steel, brass, copper,
or PVC pipe.
(A)
Select a straight section of the water supply line.
(B)
Clamp around water line using two clamping screws (A).
Tighten evenly.
Note: Use saddles (B) & (C) for 10 mm (3/8") O.D. pipe, only
saddle (C) for 13 mm (1/2") O.D. pipe, or no saddles for
15 mm (5/8") pipe.
(C)
Connect the end of the tubing to the filter system water input.
(D)
Turn adjustment knob (D) clockwise as far as it will go to pierce
the water line.
(E) Back out knob counter clockwise as far as it will go for full flow.
Adjust down for desired flow.
Installation Instructions for the Quarter
Turn Tap
•
The tap should be positioned on a work surface adjacent to a
sink where the spout can properly discharge water into the basin.
•
Using a pencil, mark the work surface to indicate the centre of
the tap.
•
Drill a ⁄ " hole where marked on the work surface.
1
2
•
Insert the black rubber washer into the base of the tap.
•
Insert the threaded section of the tap body into the
•
Assemble the washers and lock nut on the threaded section
as shown above.
•
Tighten the lock nut to prevent the tap from moving. Do not
over tighten.
•
Ensure compression nut, ferrule and tub insert are positioned
on the blue flexible tube as shown in
•
Insert the open end of the blue flexible tube assembly into the
base of the threaded section of the tap.
•
Tighten the compression nut to ensure a watertight seal.
Do not over tighten.
•
Turn on the supply to the tap. Check for leaks.
How to change your Duplex Cartridges
•
Shut off water supply
•
Turn Quarter Turn Tap to release water pressure in the Flexible
Tube.
•
Remove filter bowls (looking from the top rotate the bowl clockwise)
•
Remove and carefully dispose of the old filter cartridges (Resin &
Carbon Block).
•
To make the bowl easier to unscrew it is recommended that
the O-ring rubber washer fitted inside the bowl be coated with
silicone grease.
•
Remove any protective wrappers, position new cartridges
in each bowl and tighten – Please insure that the resin cartridge
is situated in the left hand housing with the red tube attached,
as shown in Fig 4.
•
Turn on water; depress red buttons on the top of the housings to
release any air. Check for leaks. Flush approx. 15-20 litres of water
to clear initial discoloration.
Do not allow the BWT Tastefresh Protection Plus
IMPORTANT!
System to freeze.
Customer Help Line:
01494 838 100
Monday to Friday 08.30 – 17.00 UK Only.
BWT UK Limited, BWT House, The Gateway Centre, Coronation Road,
High Wycombe, Buckinghamshire, HP12 3SU United Kingdom.
01494 838100
Tel No: Fax No:
E-mail: enquiries@bwt-uk.co.uk
All trademarks are protected under European law and must not be reproduced by third parties
without express permission of BWT UK Limited in writing. As part of BWT's policy of
constant product development, BWT reserves the right to alter product specifications without
prior notice.
1 ⁄ " hole.
2
Fig 3
.
01494 838101
2
A
3
Black Rubber Washer
Star Washer
Tube Insert
Ferrule
4
Resin
Guarantee
This product is guaranteed for the period of one year from the date of purchase
against any manufacturing fault. The guarantee is only valid if the product has
been installed and used in accordance with the manufacturers instructions and
has not been dismantled or interfered with in any way. Damage caused to the
product or by the product as a result of failure to use the product in accordance
with the manufacturers instructions is not covered by this guarantee. Under this
guarantee we undertake at our discretion to repair or replace free of charge the
product or any part thereof that is found to be faulty. Costs associated with the
fitting of a replacement product or part or the removal of the product are not
covered by this guarantee. Loss or damage caused by the product (including
consequential loss) is not covered by this guarantee. This guarantee does not
affect your statutory rights.
D
A
B
C
Spout
Base of Tap
Work Surface
White Plastic
Locating Washer
Lock Nut
Compression Nut
Blue Flexible Tube
Carbon Block
