3 - 1 0

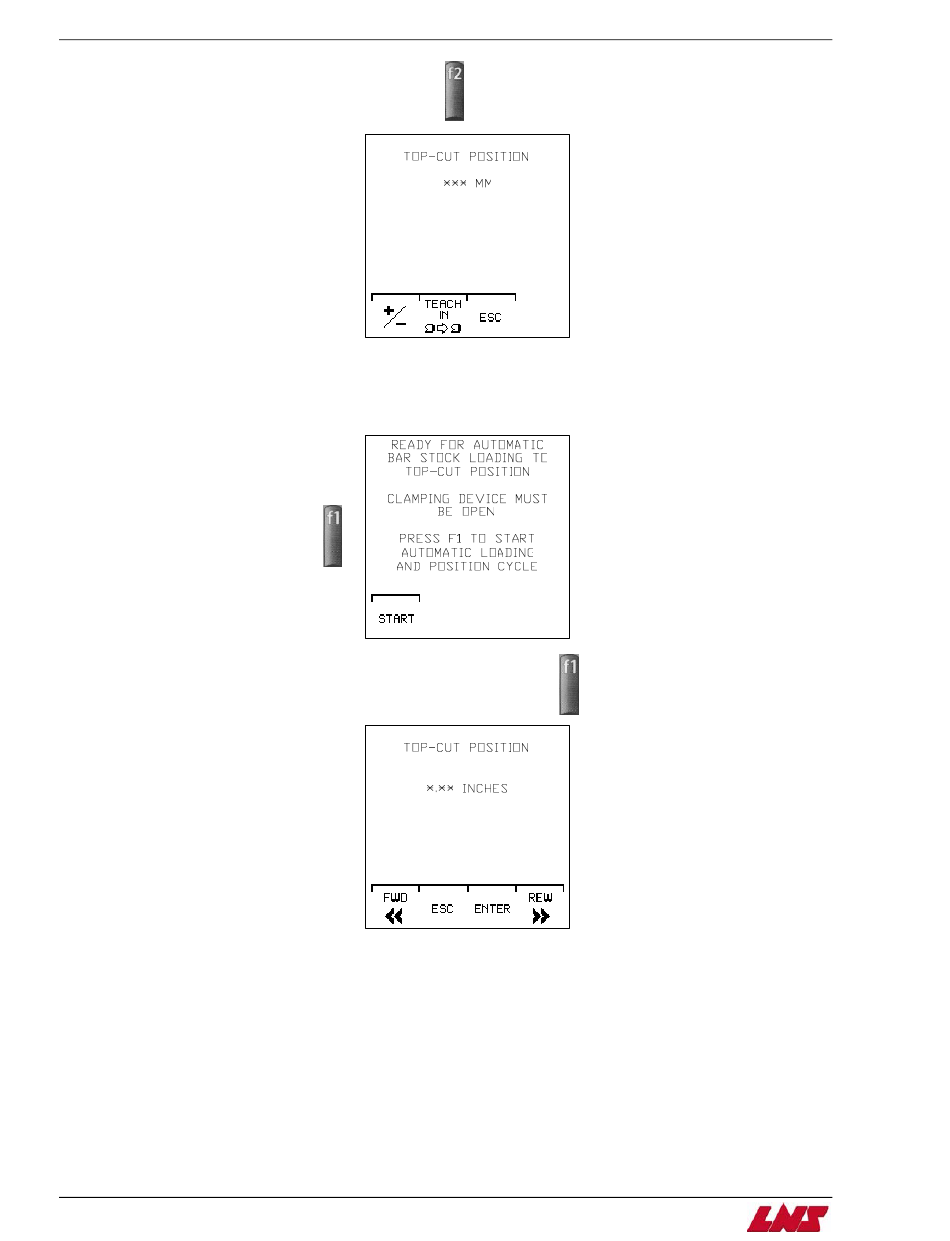

Step 9:
Press F2 (TEACH IN) to enter the top-cut by teach in.
Step 10:
Press F1 (START). The movable vise closes and advances the bar stock against the front stopper. The bar is thus
measured. The movable vise continues its travel and positions the bar inside the spindle of the lathe. The guiding channel
closes. The feeding pusher is now facing the bar. The moveable vise moves back and positions the material inside the collet
of the bar feed system.
Step 11: Press the F1 (FWD) key and advance the bar stock to the desired position.
HYDROBAR SPRINT 555
Chapter 3: Procedures
