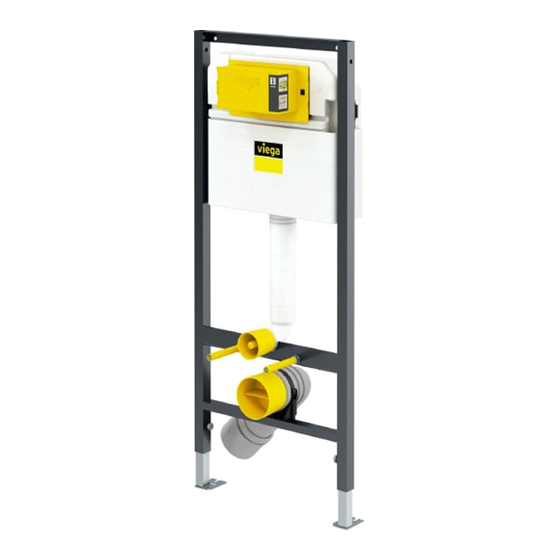

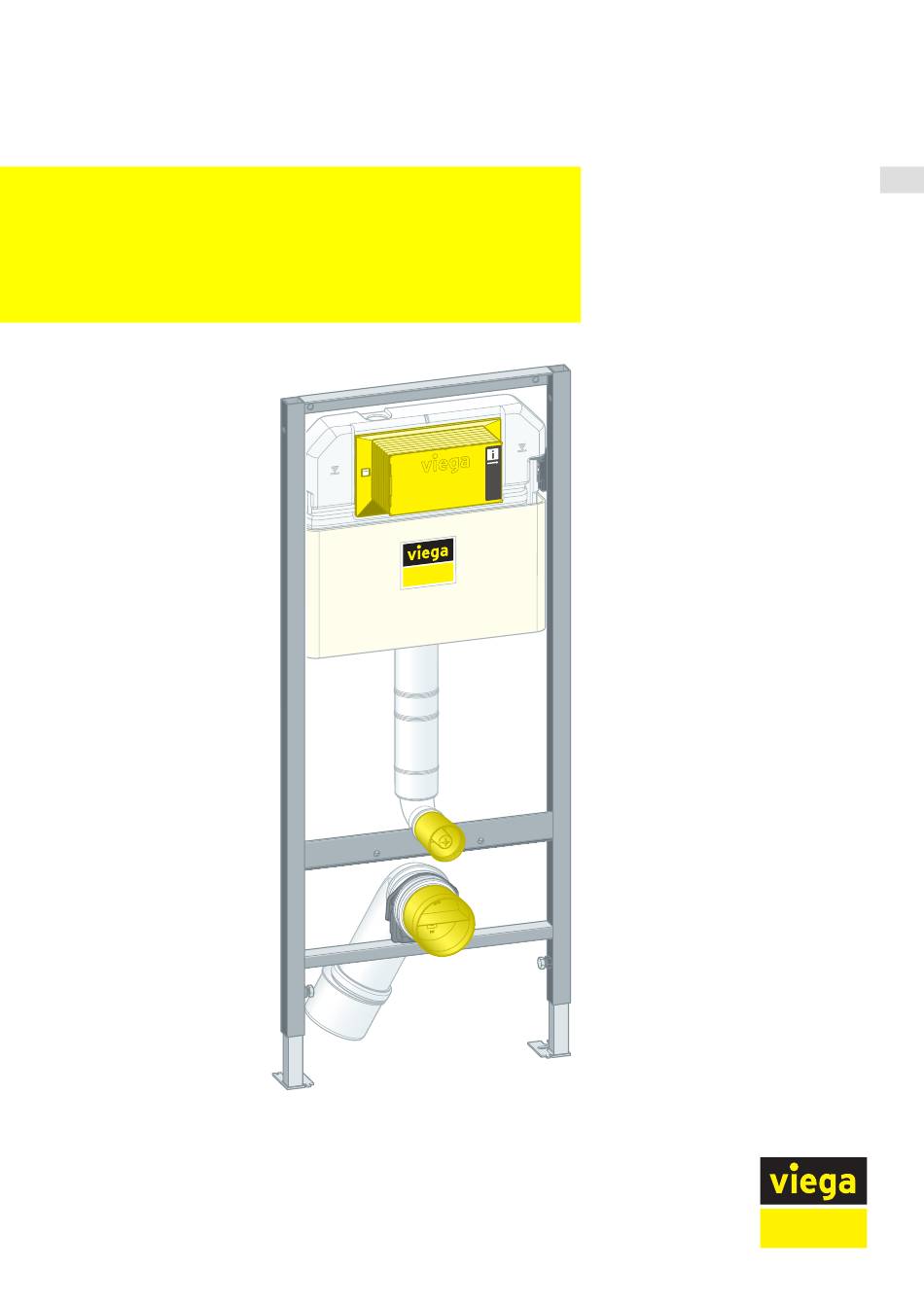

- Page 1 Instructions for Use Prevista Dry WC element building project version for WC flush plates for Prevista Model Year built (from) 8524 09/2018...
-
Page 2: Table Of Contents
Table of contents Table of contents About these instructions for use 1.1 Target groups 1.2 Labelling of notes 1.3 About this translated version Product information 2.1 Standards and regulations 2.2 Intended use 2.2.1 Areas of use 2.3 Product description 2.3.1 Overview 2.3.2 Compatible components... -
Page 3: About These Instructions For Use
This restriction does not extend to possible operating instructions. The installation of Viega products must take place in accordance with the general rules of engineering and the Viega instructions for use. -
Page 4: About This Translated Version
About these instructions for use About this translated version This instruction for use contains important information about the choice of product or system, assembly and commissioning as well as intended use and, if required, maintenance measures. The information about the products, their properties and application technology are based on the current standards in Europe (e.g. -
Page 5: Product Information
Product information Product information Standards and regulations The following standards and regulations apply to Germany / Europe and are provided as a support feature. Regulations from section: Fields of application / Mounting conditions Scope / Notice Regulations applicable in Ger‐ many Suitable masonry walls EN 1996-1-1... -
Page 6: Compatible Components
Product information Fig. 1: Components 3H concealed cistern Holder for drain elbow Drain elbow Reducer Threaded rods for fixing sanitary objects (gauges for bore hole 180 mm) Screws and dowels for fixing in the floor Screws for fixing in support profile Mounting set for WC ceramic Flushing pipe 10 WC connection socket with lip seal... -
Page 7: Technical Data
Product information Fixing set model 8180.73 Accessory set connection electronic model 8655.11 Mount the components in accordance with the respective instructions for use. 2.3.3 Technical data Flush volume Small flush volume Factory setting approx. 3 l Setting range approx. 2–4 l Large flush volume Factory setting approx. -
Page 8: Handling
Handling Handling Assembly information 3.1.1 Mounting conditions Suitable walls Masonry walls Concreted walls Metal support profiles The wall constructions must comply with the regulations in section Ä „Regulations from section: Fields of application / Mounting condi‐ tions“ on page 5. The WC element may only be mounted on even wall surfaces. -
Page 9: Installation Dimensions
Mounting WC element Masonry and concreted walls When mounting multiple WC elements with an interval of > 500 mm, Viega recommends the use of a Prevista Dry support bracket (model 8570.48). Observe the instructions for use of the support bracket when mounting. - Page 10 Handling Mounting to a masonry wall For mounting, Viega recommends to use the fixing set (model 8180.73). ▶ Determine and mark the fixing points. X1: 1100 mm X2: 390 mm ▶ Determine and mark the fixing points on the floor.
- Page 11 Handling ▶ Adjust the construction height of the element in accordance with the on-site marking of the upper edge of the finished floor. X: 1000 mm ▶ Tighten the feet of the element using a fork spanner. ▷ The element is attached to the wall. Prevista Dry WC element building project version...
- Page 12 Handling Mounting in metal support profile ▶ Position the element on the floor rail. ▶ If necessary, adjust the foot depth from 50 mm (pre-mounted) to 75 ▶ Loosen and pull out the foot plates. ▶ Turn the foot plates through 90°. ▶...
-
Page 13: Connecting Concealed Cistern
Handling 3.2.2 Connecting concealed cistern ▶ Turn the cover plate lock 90° in anti-clockwise direction. ▶ Remove the cover plate. ▶ Place the press connector on the water inlet. ▶ Press the connection. ▶ Seal the threaded connectors of the corner valve. ▶... - Page 14 Handling ▶ Remove the plug. ▶ Insert the corner valve into the cistern. INFO! Ensure the corner valve is correctly seated. ▶ Use the lock nut to screw the corner valve and the cistern to one another. ▶ Remove the protective cap from the water supply hose. ▶...
- Page 15 Handling ▶ Turn the cover plate lock by 90° in a clockwise direction. ▶ Place the revision shaft on the cover plate. To remove the revision shaft, press in the fixing clips at the side. Prevista Dry WC element building project version...
-
Page 16: Mounting The Drain Elbow
Handling 3.2.3 Mounting the drain elbow ▶ Insert the mounting bracket for the drain elbow. ▶ Insert the drain elbow to the desired depth. ▶ Secure the drain elbow using the bow. ▶ Attach the protective plug of the flushing pipe elbow. ▶... -
Page 17: Set And Clad The Wc Element
Handling 3.2.4 Set and clad the WC element ▶ Turn in the threaded rods by hand. For 180 mm gauge for bore hole: Counter the threaded rods in front of the element with a nut. ▶ Place the protective caps on the threaded rods. ▶... - Page 18 Handling ▶ Clad the element with suitable gypsum cardboard cladding panels. Prevista Dry WC element building project version...
-
Page 19: Setting The Flush Volume
Handling 3.2.5 Setting the flush volume Requirements: The cistern is freely accessible. The water supply has been shut off. The ceramic has been mounted. ▶ Fold the tabs forward. ▶ Lift the drain valve. ▶ Remove the drain valve through the revision opening. Prevista Dry WC element building project version... - Page 20 Handling ▶ Set the large flush volume at the drain valve. ▶ Set the small flush volume at the drain valve. Prevista Dry WC element building project version...
-
Page 21: Cleaning And Maintenance
Handling Setting the flush flow Requirements: The drain valve has been dismounted. The flushing throttle has been removed. ▶ Unlock the flushing throttle. ▶ Set the flush flow at the throttle. ▶ Lock the flushing throttle. Cleaning and maintenance Cleaning and maintenance of the concealed cistern The concealed cistern is constantly under mechanical, chemical, and physical stress. - Page 22 Viega Technology GmbH & Co. KG service-technik@viega.de viega.com INT • 2020-07 • VPN180224...
