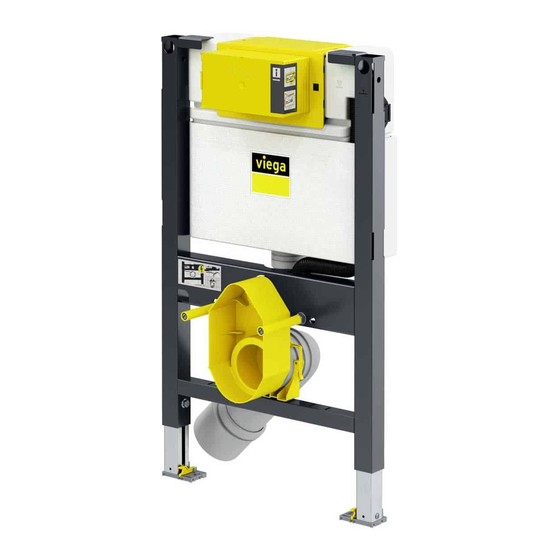

- Page 1 Prevista Dry WC element with shower WC connection Instructions for Use for WC flush plates for Prevista Model 8522 en_INT...
- Page 2 Prevista Dry WC element with shower WC connection 2 from 27...
-
Page 3: Table Of Contents
Table of contents Table of contents About these instructions for use Target groups Labelling of notes About this translated version Product information Standards and regulations Safety instructions Intended use 2.3.1 Areas of use Product description 2.4.1 Overview 2.4.2 Compatible components 2.4.3 Technical data Accessories... -
Page 4: About These Instructions For Use
This restriction does not extend to possible operating instructions. The installation of Viega products must take place in accordance with the general rules of engineering and the Viega instructions for use. -
Page 5: About This Translated Version
About these instructions for use About this translated version This instruction for use contains important information about the choice of product or system, assembly and commissioning as well as intended use and, if required, maintenance measures. The information about the products, their properties and application technology are based on the current standards in Europe (e.g. -
Page 6: Product Information
Product information 2 Product information Standards and regulations The following standards and regulations apply to Germany / Europe and are provided as a support feature. Regulations from section: Fields of application / Mounting conditions Scope / Notice Regulations applicable in Ger‐ many Suitable masonry walls EN 1996-1-1... -
Page 7: Compatible Components
Product information Fig. 1: Components 3H concealed cistern Empty pipe for shower WC connection Holder for drain elbow Drain elbow Reducer Threaded rods for fixing sanitary objects (gauges for bore hole 180 or 230 mm) Screws and dowels for fixing in the floor Screws for fixing in support profile Mounting set for WC ceramic 10 Flushing pipe... -
Page 8: Technical Data
Product information Fixing set model 8180.73 Odour extraction via Prevista flushing pipe elbow with ventilator con‐ nection 3H Prevista shower WC connection set model 8570.63 Accessory set connection electronic model 8655.11 Mount the components in accordance with the respective instructions for use. -
Page 9: Accessories
Product information Accessories For mounting, Viega recommends a Prevista Dry fixing set. Prevista Dry fixing set model8570.36 for fixing the Prevista Dry elements in single / line mounting, single mounting directly onto the installation body or corner mounting on masonry or metal support profile. -
Page 10: Handling
Handling 3 Handling Assembly information 3.1.1 Mounting conditions Suitable walls Masonry walls Concreted walls Metal support profiles Prevista Dry Plus pre-wall constructions The wall constructions must comply with the regulations in section Ä „Regulations from section: Fields of application / Mounting condi‐ tions“... -
Page 11: Installation Dimensions
Mounting WC element Masonry and concreted walls When mounting multiple WC elements with an interval of > 500 mm, Viega recommends the use of a Prevista Dry support bracket (model 8570.48). Observe the instructions for use for the support bracket when mounting. - Page 12 Handling Mounting to a masonry wall For mounting, Viega recommends to use a Prevista Dry fixing set. Determine and mark the fixing points. X1: 1100 mm X2: 460 mm Determine and mark the fixing points on the floor. X3: 375 mm Drill the holes.
- Page 13 Handling Adjust the construction height of the element in accordance with the on-site marking of the upper edge of the finished floor. X: 1000 mm Tighten the feet of the element using a fork spanner. ð The element is attached to the wall. Prevista Dry WC element with shower WC connection 13 from 27...
- Page 14 Handling Mounting in Prevista Dry Plus Position the element on the floor rail. Fix the feet on the floor rail using the clips. Set the height of the element by means of the feet. Fix the element with the Prevista Dry Plus Steptec rail connectors. Prevista Dry WC element with shower WC connection 14 from 27...
- Page 15 Handling ð The WC element is fixed in the Prevista Dry Plus pre-wall con‐ struction. Prevista Dry WC element with shower WC connection 15 from 27...
- Page 16 Handling Mounting in metal support profile Position the element on the floor rail. If necessary, adjust the foot depth from 50 mm (pre-mounted) to 75 Loosen and pull out the foot plates. Turn the foot plates through 90°. Screw the feet together with the support profile. Adjust the construction height of the element in accordance with the on-site marking of the upper edge of the finished floor.
- Page 17 Handling If applicable, connect further elements to the element via the sup‐ port profile. Prevista Dry WC element with shower WC connection 17 from 27...
-
Page 18: Connecting Concealed Cistern
Handling 3.2.2 Connecting concealed cistern Turn the cover plate lock 90° in anti-clockwise direction. Remove the cover plate. Place the press connector on the water inlet. Press the connection. Seal the threaded connectors of the corner valve. Screw the corner valve into the thread side of the Steptec rail con‐ nector. - Page 19 Handling INFO! For the concealed cistern 3H, the corner valve can be attached from the top or rear. Remove the plug. Insert the corner valve into the cistern. INFO! Ensure the corner valve is correctly seated. Use the lock nut to screw the corner valve and the cistern to one another.
- Page 20 Handling Insert the cover plate into the cistern. Turn the cover plate lock by 90° in a clockwise direction. Place the revision shaft on the cover plate. To remove the revision shaft, press in the fixing clips at the side. Prevista Dry WC element with shower WC connection 20 from 27...
-
Page 21: Mounting The Drain Elbow
Handling 3.2.3 Mounting the drain elbow Insert the mounting bracket for the drain elbow. Insert the drain elbow to the desired depth. Fasten the drain elbow using the bow. Fit the site protection. Prevista Dry WC element with shower WC connection 21 from 27... -
Page 22: Establish Power And Water Supply (Optional)
Handling 3.2.4 Establish power and water supply (optional) DANGER! Danger due to electrical current An electric shock can lead to burns and serious injury and even death. – Work on the electrics may only be carried out by trained electricians. –... -
Page 23: Setting And Cladding The Wc Element
Handling 3.2.5 Setting and cladding the WC element Turn in the threaded rods by hand. For 180 mm gauge for bore hole: Counter the threaded rods in front of the element with a nut. For 230 mm gauge for bore hole: Counter the threaded rods in front of and after the element with a nut. - Page 24 Handling Clad the element with suitable gypsum cardboard cladding panels. Prevista Dry WC element with shower WC connection 24 from 27...
-
Page 25: Setting The Flush Volume
Handling 3.2.6 Setting the flush volume Requirements: The cistern is freely accessible. The water supply has been shut off. The ceramic has been mounted. Fold the tabs forward. Lift the drain valve. Remove the drain valve through the revision opening. Prevista Dry WC element with shower WC connection 25 from 27... - Page 26 Handling Set the large flush volume at the drain valve. Set the small flush volume at the drain valve. Prevista Dry WC element with shower WC connection 26 from 27...
-
Page 27: Cleaning And Maintenance
Handling Setting the flush flow Requirements: The drain valve has been dismounted. The flushing throttle has been removed. Unlock the flushing throttle. Set the flush flow at the throttle. Lock the flushing throttle. Cleaning and maintenance Cleaning and maintenance of the concealed cistern The concealed cistern is constantly under mechanical, chemical, and physical stress.
