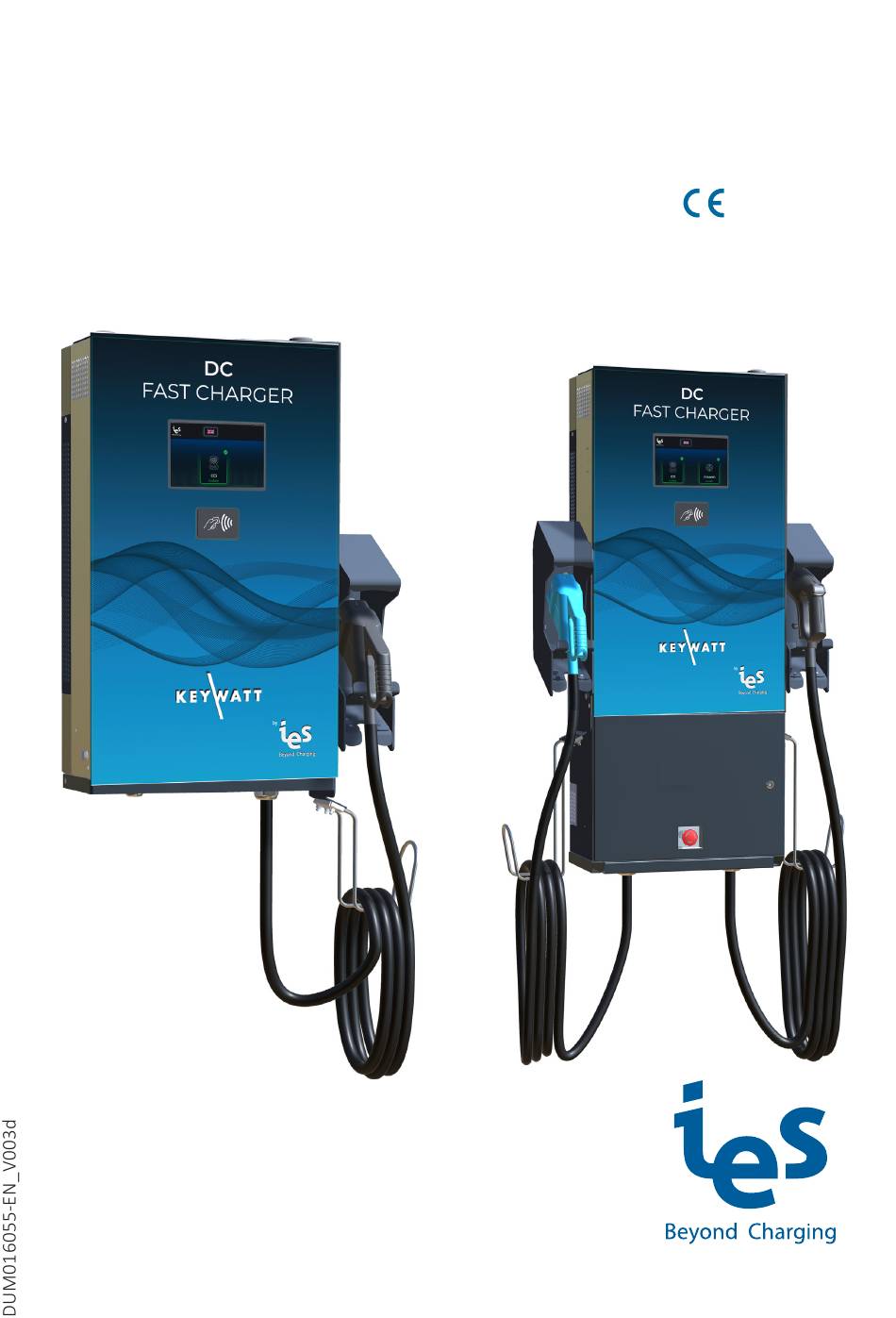

- Page 1 User Manual Keywatt 24 Wallbox www.ies-synergy.com...
- Page 2 IES Synergy, given in writing. You also agree not to establish any hypertext links to this document or its content. IES Synergy does not grant any right or license for the per- sonal and noncommercial use of the document or its content, except for a non-exclusive license to consult it on an “as is”...
-
Page 3: Table Of Contents
Specification Main supply Technical specification Operating instructions Start a Vehicle Charge Session Stop a Vehicle Charge Session Emergency Stop Utilization Human/Machine interface (HMI) Charge selection User identification EV connection EV communication EV charge End of charge Other messages Errors www.ies-synergy.com... -
Page 4: Safety Notes
Electrical equipment should be installed, operated, serviced, and maintained only by qualified personnel. No responsibility is assumed by IES Synergy for any consequences arising out of the use of this material. A qualified person is one who has skills and knowledge related to the construction and operation of electrical equipment and its installation, and has received safety training to recognize and avoid the hazards involved. -
Page 5: About The Manual
Installation Manual WBG3X DIM016197-EN User Manual WBG3/G3X DUM016055-EN Service Manual WBG3/G3X DMM016055-EN User comments We invite you to write us to communicate any inaccuracies or omissions, or to make general comments or sug- gestions regarding the quality of this manual. www.ies-synergy.com... -
Page 6: General Safety Instructions
EV to the EVSE. • This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments. Failure to follow these instructions may result in serious injury or equipment damage. www.ies-synergy.com... -
Page 7: Overview
❷ ❸ ❼ ❹ ❺ ❽ ❾ ❻ Position Description Antennas 7” touchscreen display RFID reader Emergency Stop button Input cable Output cable Key locker Connector support Output DC connector Note: May change depending on version or technical modification www.ies-synergy.com... -

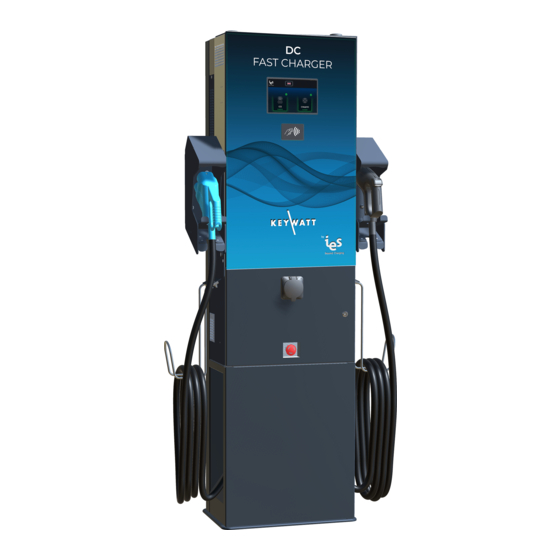

Page 8: Wbg3X External View
7" touchscreen display RFID reader Connector support Output Combo 2 DC connector AC socket outlet Type 2 S Emergency Stop button Output cable Key locks Connector support Output CHAdeMO DC connector Note: May change depending on version or technical modification www.ies-synergy.com... -
Page 9: Specification
220-240 V ± 10% Earthed electrical system TT; TN Frequency range 50 Hz ± 10% Nominal Input current 123-112A Maximum Input current 140A Power Factor 0,99 Efficiency ɳ 95 % Harmonic current @ nominal network voltage THDi < 13 % www.ies-synergy.com... -
Page 10: Technical Specification
Max time for DC line discharge < 60V <60V Internal AC output protection (WBG3X only) 230A during 100 µs Inrush current 30A during following second Short circuit Socket I²t A²s 75 000 Circuit breaker for AC circuit 50A curve C www.ies-synergy.com... - Page 11 External dimensions (mm) H x W x D 1225 x 507 x 250 mm (G3X) 66kg (G3) Weight (without cable, or bracket) 93kg (G3X) Type of installation Wall / Pedestal mounting Fixation points 8 screws Protection type (EN60529) IP55 www.ies-synergy.com...
- Page 12 Output current can be even reduced with the power derating versus temperature. Potential derating above 35°C. CE marking affixed on the product attest the conformity of the product with applicable requirements of relevent Community har- monization legislation. On Wallbox G3, you only have one Combo or CHAdeMO connector. www.ies-synergy.com...
- Page 13 User Manual DUM016055-EN Compliance Derating As a direct correlation exists between the current and ambient temperature a derating curve is provided for all charging station. 35°C 40°C 45°C 50°C 55°C Minutes before derating =370V & I =65A www.ies-synergy.com...
-
Page 14: Operating Instructions
3. Unplug the connector from the vehicle To reset after emergency stop rotate the button clockwise until it pops outward. After a self-test the display will remove the emergency stop message and will be ready for a new session. www.ies-synergy.com... -
Page 15: Utilization
Note: Applicable in COMBO, CHAdeMO and AC. Charger states • Available: Connector available • Preparing: Charge preparation • Finishing: Charge ending or ended but connector still connected to the vehicle • Unavailable: Connector unavailable • Error: An error has occured www.ies-synergy.com... -
Page 16: Charge Selection
Depending on your configuration, the Wallbox offers up to 3 means of connection to the vehicle. Mono-Standard version Note: Applicable in COMBO and CHAdeMO Bi-Standard version The choice of the type of charge is made by selecting the right logo directly on the touch screen. Tri-Standard version www.ies-synergy.com... -
Page 17: User Identification
• to remotely start the charge through an application linked to the supervision tool. Note: Applicable in COMBO, CHAdeMO and AC Note: Applicable in COMBO, CHAdeMO and AC EV connection The charging station invites the user to connect the EV with the following screen: Note: Applicable in COMBO, CHAdeMO and AC www.ies-synergy.com... -
Page 18: Ev Communication
Before starting a charge, the charging station communicates with the electrical vehicle to collect information. All these steps are necessary to adapt the charging station parameters to the electrical vehicle. Note: Applicable in COMBO, CHAdeMO and AC Note: Applicable in COMBO and CHAdeMO www.ies-synergy.com... -
Page 19: Ev Charge
Note: Applicable in COMBO and CHAdeMO AC (for WBG3X only) During the charge of the electrical vehicle, the charging station shows the charge informations (time since the start of charging and charged energy). www.ies-synergy.com... -
Page 20: End Of Charge
After completing the charge of the electric vehicle, the charging station performs multiple control steps before disconnecting the vehicle. Combined Charging System (CSS) When the COMBO protocol is used, the user can unplug the vehicle once the charge is done. www.ies-synergy.com... - Page 21 User Manual DUM016055-EN CHAdeMO When the CHAdeMO protocol is used, the user must press the red cross after unplugging his vehicle. www.ies-synergy.com...
- Page 22 User Manual DUM016055-EN AC (for WBG3X only) When the AC type 2 S protocol is used, the user can unplug the vehicle once the charge is done. www.ies-synergy.com...
-
Page 23: Other Messages
Charging station shut down. Please contact support to restart the charging station. Updating station... Charging not available. Charging station is being updated. Please wait. Error updating. DO NOT CHARGE HERE. Wait for Error updating. Please contact support for updating correct update. the charging station. www.ies-synergy.com... -
Page 24: Errors
Not in CHAdeMO: Connector error. Please keep the Error occurred: 0x22 - 0x33 Connector error. Please keep the connector closely connector closely leant against your vehicle when leant against your vehicle when plugging, until the plugging, until the charge has started. charge has started. www.ies-synergy.com... - Page 25 Not in CHAdeMO: For all other error codes, please Error occurred: 0x-- Please unplug your vehicle. refer to maintenance manual. Error occurred: 0x-- CHAdeMO only: For all other error codes, please re- Please press X once your vehicle is unplugged. fer to maintenance manual. www.ies-synergy.com...
- Page 26 User Manual DUM016055-EN Notes www.ies-synergy.com...
- Page 27 User Manual DUM016055-EN Notes www.ies-synergy.com...
- Page 28 Tel: +33 (0)4 99 13 62 80 Tel: +49(0)80244633980 Fax: +33 (0)4 99 13 62 81 IES-Synergy Inc. (USA) IES WANMA New Energy (China) 330 East Maple Rd Building No 4, Wellong Technology Park Unit U No. 88 Jiang Lin Rd...
