Summary of Contents for IES Keywatt 24 Wallbox

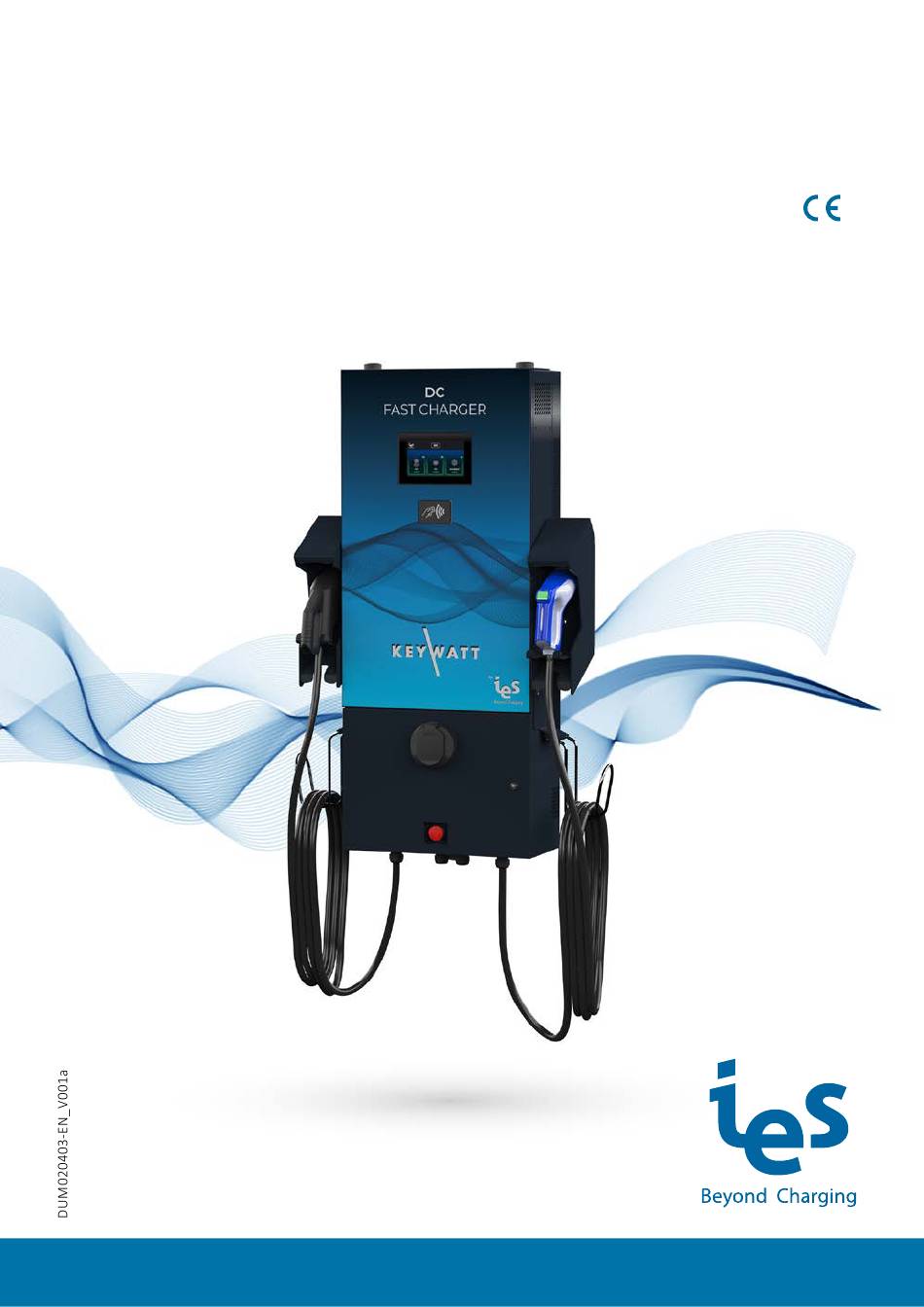

- Page 1 User Manual Keywatt 24 Wallbox www.ies-synergy.com...
- Page 2 IES Synergy, given in writing. You also agree not to establish any hypertext links to this document or its content. IES Synergy does not grant any right or license for the personal and noncommercial use of the document or its content, except for a non-exclusive license to consult it on an “as is”...
-
Page 3: Table Of Contents
3. General Safety instructions 4. Overview External view 5. Specification Mains supply Technical specification 6. Utilization Human/Machine interface (HMI) Prerequisite Start an EV charge session EV charge Stop an EV charge session Emergency Stop Other messages Errors www.ies-synergy.com Installation Manual DIM020403-EN... -
Page 4: Safety Notes
Electrical equipment should be installed, operated, serviced, and maintained only by qualified personnel. No responsibility is assumed by IES Synergy for any consequences arising out of the use of this material. A qualified person is one who has skills and knowledge related to the construction and operation of electrical equipment and its installation, and has received safety training to recognize and avoid the hazards involved. -
Page 5: About The Manual
This guide aims to provide informations needed for installation and end-of life of the Keywatt 24 Wallbox multi-standard. This guide must be read with other related documents. This guide is intended for qualified personnel to install on the charging... -
Page 6: General Safety Instructions
• This equipment is not intended for use in residential environments and may not provide adequate protection to radio reception in such environments. Failure to follow these instructions may result in serious injury or equipment damage. www.ies-synergy.com Installation Manual DIM020403-EN... -
Page 7: Overview
Output Combo 2 DC connector ❻ AC socket outlet Type 2 S ❼ Emergency Stop button ❽ Output cable ❾ Key locks ❿ Connector support ⓫ Output CHAdeMO DC connector Note: May change depending on version or technical modification www.ies-synergy.com Installation Manual DIM020403-EN... -
Page 8: Specification
Output current _min 1,5A Max Output Power 24kW Output connector (charging station side) Permanent mounting Plug #1 COMBO 2 Car Plug connector Plug #2 CHAdeMO 3,5 (5,2 in option) Output cable length Meters -10/+0% *5m for Switzerland www.ies-synergy.com Installation Manual DIM020403-EN... - Page 9 ≤ 1µF : response value (Ran) and time (tan) are not guaranteed for System leakage capacity Ce capacity above 1µF ! Warning: Do not connect the insulation monitor device (IMD) in parallel !! Parallelization Response value (Ran) and time (tan) are not guaranteed. www.ies-synergy.com Installation Manual DIM020403-EN...
- Page 10 Heatsink with forced air flow by fans IP55 without air Cooling systems filter Noise (1m, all direction) Db(A) 65dbA (1m) Climatic & Environment constraints Operating temperature (with derating) -25°C to +50°C Storage temperature -25°C to +60°C Relative humidity 10% to 95% Installation altitude 2 000m www.ies-synergy.com Installation Manual DIM020403-EN...
- Page 11 Output current can be even reduced with the power derating versus temperature. Potential derating above 35°C. CE marking affixed on the product attest the conformity of the product with applicable requirements of relevent Commu- nity harmonization legislation. www.ies-synergy.com Installation Manual DIM020403-EN...
- Page 12 Compliance Derating As a direct correlation exists between the current and ambient temperature a derating curve is provided for all charging station. 35°C 40°C 45°C 50°C 55°C Minutes before derating =370V & I =65A www.ies-synergy.com Installation Manual DIM020403-EN...
-
Page 13: Utilization
AC error detected CCS reserved End of CCS and AC CCS/AC/CHAdeMO CHAdeMO simultaneously charge Dual charging AC/CHAdeMO available unavailable CHAdeMO Cables connected disabled available Comm. with the EV unavailable. Réservé Note: Applicable in COMBO, CHAdeMO and AC. www.ies-synergy.com Installation Manual DIM020403-EN... -
Page 14: Prerequisite
If the charging station is not connected to the supervision server, please refer to the maintenance manual. Start an EV charge session Depending on your configuration, the Wallbox can offer 2 or 3 means of connection to the vehicle. WBG3X V3 tri-standard WBG3X V3 bi-standard www.ies-synergy.com Installation Manual DIM020403-EN... - Page 15 Note: Applicable in COMBO, CHAdeMO and AC Swipe an activated RFID card or Start the charge remotely via a supervision application → Note: Applicable in COMBO, CHAdeMO and AC 3) EV connection Note: Applicable in COMBO, CHAdeMO and AC www.ies-synergy.com Installation Manual DIM020403-EN...
-
Page 16: Ev Charge
The charger will adjust its output according to the demands of the vehicle, ambient temperature and other factors. After completing the charge of the EV, the charging station performs multiple control steps before disconnecting the vehicle. www.ies-synergy.com Installation Manual DIM020403-EN... -
Page 17: Stop An Ev Charge Session
Stop the charge remotely via a supervision app Note: Applicable in COMBO, CHAdeMO and AC Note: Applicable in COMBO, CHAdeMO and AC The following steps are identical to those described during normal stopping of the charge. www.ies-synergy.com Installation Manual DIM020403-EN... -
Page 18: Emergency Stop
3. Unplug the connector from the vehicle To reset after emergency stop rotate the button clockwise until it pops outward. After a self-test the display will remove the emergency stop message and will be ready for a new session. www.ies-synergy.com Installation Manual DIM020403-EN... -
Page 19: Other Messages
Remote reset started... Station will reboot now. Station is being rebooted. Station rebooted during a charge. Please unplug and retry to Station rebooted. Please unplug your vehicle. (CCS) launch the charge. Warning: insulation failure. Cable insulation failed. Please contact support. www.ies-synergy.com Installation Manual DIM020403-EN... -
Page 20: Errors
Your gear is not in parking position. Please unplug your vehicle and engage gear in parking position. (CCS and AC) Your gear is not in parking position. Error occurred: 0x14 Your gear is not in parking position. Please press X once your vehicle is unplugged. (CHAdeMO) www.ies-synergy.com Installation Manual DIM020403-EN... - Page 21 Connection between screen and charger has been lost. Please press X once your vehicle is unplugged. (CHAdeMO) Error occurred: 0x-- For all other error codes, please refer to maintenance manual. Please press X once your vehicle is unplugged. www.ies-synergy.com Installation Manual DIM020403-EN...
- Page 22 Notes www.ies-synergy.com Installation Manual DIM020403-EN...
- Page 23 Notes www.ies-synergy.com Installation Manual DIM020403-EN...
- Page 24 Tel: +33 (0)4 99 13 62 80 Tel: +49(0)8972017919 Fax: +33 (0)4 99 13 62 81 IES-Synergy Inc. (USA) IES WANMA New Energy (China) 330 East Maple Rd Building No 4, Wellong Technology Park Unit U No. 88 Jiang Lin Rd...
