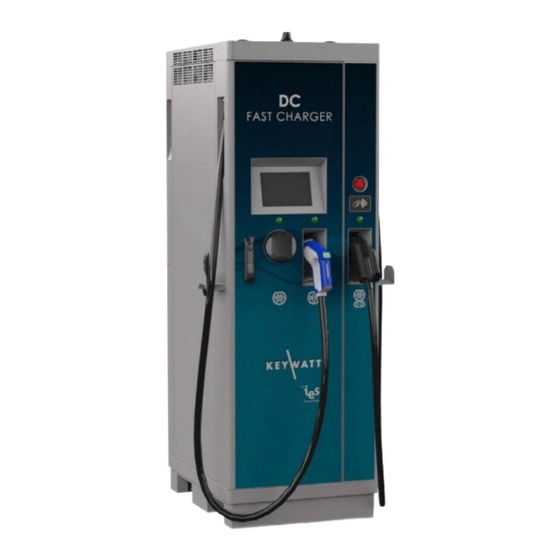

IES Keywatt 50 Series User Manual
Hide thumbs Also See for Keywatt 50 Series:

Advertisement

User Manual
Keywatt 50x Station
www.ies-synergy.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Keywatt 50 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for IES Keywatt 50 Series

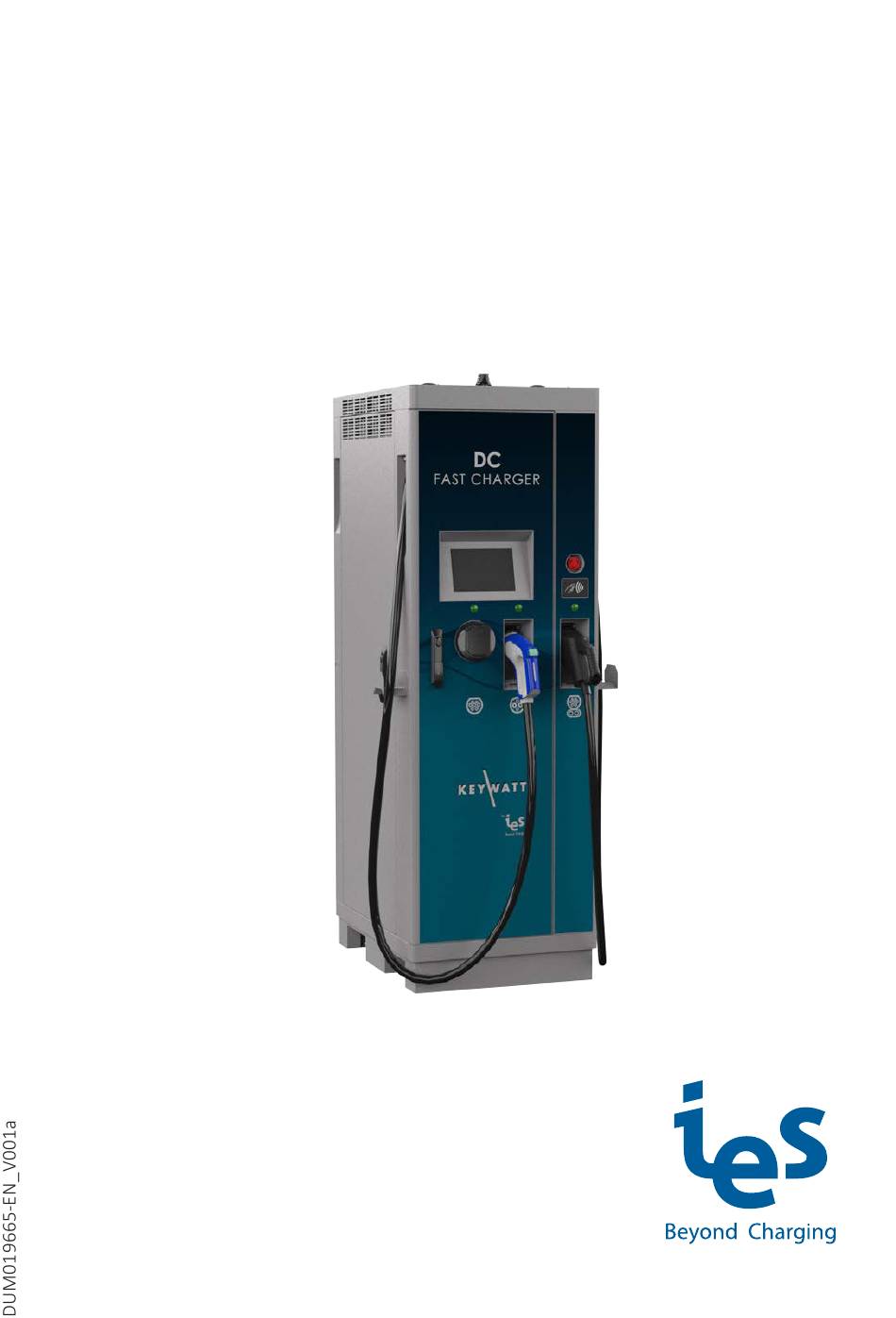

  • Page 1 User Manual Keywatt 50x Station www.ies-synergy.com...
  • Page 2 IES Synergy, given in writing. You also agree not to establish any hypertext links to this document or its content. IES Synergy does not grant any right or license for the per- sonal and noncommercial use of the document or its content, except for a non-exclusive license to consult it on an “as is”...
  • Page 3: Table Of Contents

    Related documents User comments General Safety instructions Overview External view Specification Main supply Technical specification Utilization Human/Machine interface (HMI) and LEDs Prerequisite Start an EV charge session EV charge Stop an EV charge session Emergency Stop Other messages Errors www.ies-synergy.com...
  • Page 4: Safety Notes

    CAUTION indicates a potentially hazardous situation which, if not avoided, can result in minor or mod- erate injury. NOTICE NOTICE is used to address practices not related to physical injury. Please note No responsibility is assumed by IES Synergy for any consequences arising out of the use of this material. www.ies-synergy.com...
  • Page 5: About The Manual

    Document title Reference Installation Manual DIM019665-EN User Manual DUM019665-EN Service Manual DMM019665-EN User comments We invite you to write to us to communicate any inaccuracies or omissions, or to make general comments or suggestions regarding the quality of this manual. www.ies-synergy.com...
  • Page 6: General Safety Instructions

    • Never open the charger while input power is present. • The equipment must be installed and operated with minimum distance of 22cm of the human body. Failure to follow these instructions can result in death or serious injury www.ies-synergy.com...
  • Page 7: Overview

    ❺ AC Type 2-S outlet and LED * ❻ CHAdeMO DC connector and LED * ❼ CCS Type 2 DC connector and LED ❽ RFID reader ❾ Emergency Stop button *Note: May change depending on version or technical modification www.ies-synergy.com...
  • Page 8: Specification

    Hardware and software short circuit protection Hardware over voltage protection +20% max Software over voltage protection dynamic +10% max Over temperature protection 70°C Reverse polarity protection DC output Contactor Yes (2 poles) Rated Current Fuse (output) FUSE Galvanic isolation 4100 input / output www.ies-synergy.com...
  • Page 9 UMTS/HSPA+ GSM900: Tx=880-915, Rx=925-960 3G band 8: Tx=880-915, Rx=925-960 Frequency Bands (MHz) DCS1800: Tx=1710-1785, Rx=1805-1880 3G band 1: Tx=1920-1980, Rx=2110-2170 Output GSM900: 33.0 3G band 8: 23.06 (for 880-915MHz) Power (dBm) DCS1800: 29.3 3G band 1: 21.92 (for 1920-1980MHz) www.ies-synergy.com...
  • Page 10 Radio Equipment Directive (RED) 2014/53/EU Max output current will be adapted versus maximum carrying current of the vehicle plug Output current can be even reduced with the power derating versus temperature. With derating from 35°C Design in compliance with CE directives Compliance www.ies-synergy.com...
  • Page 11 User Manual DUM019665-EN Derating As a direct correlation exists between the output power and the ambient temperature a derating curve is pro- vided for all charging station. www.ies-synergy.com...
  • Page 12: Utilization

    CCS/AC charging End of CCS and AC AC error detected CCS reserved CCS/AC/CHAdeMO CHAdeMO simultaneously charge Dual charging AC/CHAdeMO available unavailable CHAdeMO Cables connected disabled available Comm. with the EV unavailable. Reserved Note: Applicable in COMBO, CHAdeMO and AC. www.ies-synergy.com...
  • Page 13: Prerequisite

    To check that the charging station is connected to the supervision tool: If the charging station is not connected to the supervision server, please refer to the maintenance manual. Start an EV charge session 1) Select the type of charge www.ies-synergy.com...
  • Page 14 Press “Start” (if button available on screen) Note: Applicable in COMBO, CHAdeMO and AC Swipe an activated RFID card or Start the charge remotely via a supervision application Note: Applicable in COMBO, CHAdeMO and AC 3) EV connection Note: Applicable in COMBO, CHAdeMO and AC www.ies-synergy.com...
  • Page 15: Ev Charge

    The charger will adjust its output according to the demands of the vehicle, ambient temperature and other factors. After completing the charge of the EV, the charging station performs multiple control steps before disconnect- ing the vehicle. www.ies-synergy.com...
  • Page 16: Stop An Ev Charge Session

    Swipe the same RFID card used at launch or Stop the charge remotely via a supervision app. Note: Applicable in COMBO, CHAdeMO and AC Note: Applicable in COMBO, CHAdeMO and AC The following steps are identical to those described during normal stopping of the charge. www.ies-synergy.com...
  • Page 17: Emergency Stop

    To emergency stop follow these steps: ❶ ❷ To reset after an emergency stop, rotate the button clockwise until it pops outward. After a self-test, the display will remove the emergency stop message and will be ready for a new session. www.ies-synergy.com...
  • Page 18: Other Messages

    Remote reset started... Station will reboot now. Station is being rebooted. Station rebooted during a charge. Please unplug Station rebooted. Please unplug your vehicle. (CCS) and retry to launch the charge. Warning: insulation failure. Cable insulation failed. Please contact support. www.ies-synergy.com...
  • Page 19: Errors

    Your battery model is incompatible with this charger. Please unplug your vehicle. (CCS and AC) Your battery model is incompatible with this charger. Error occurred: 0x11 Your battery model is incompatible with this char- ger. Please press X once your vehicle is unplugged. (CHAdeMO) www.ies-synergy.com...
  • Page 20 Connection between screen and charger has been lost. Please press X once your vehicle is unplugged. (CHAdeMO) Error occurred: 0x-- For all other error codes, please refer to maintenance Please press X once your vehicle is unplugged. manual. www.ies-synergy.com...
  • Page 21 User Manual DUM019665-EN Notes www.ies-synergy.com...
  • Page 22 User Manual DUM019665-EN Notes www.ies-synergy.com...
  • Page 23 User Manual DUM019665-EN Notes www.ies-synergy.com...
  • Page 24 Tel: +33 (0)4 99 13 62 80 Tel: +49(0)8972017919 Fax: +33 (0)4 99 13 62 81 IES-Synergy Inc. (USA) IES WANMA New Energy (China) 330 East Maple Rd Building No 4, Wellong Technology Park Unit U No. 88 Jiang Lin Rd...
