Summary of Contents for IES Keywatt S120

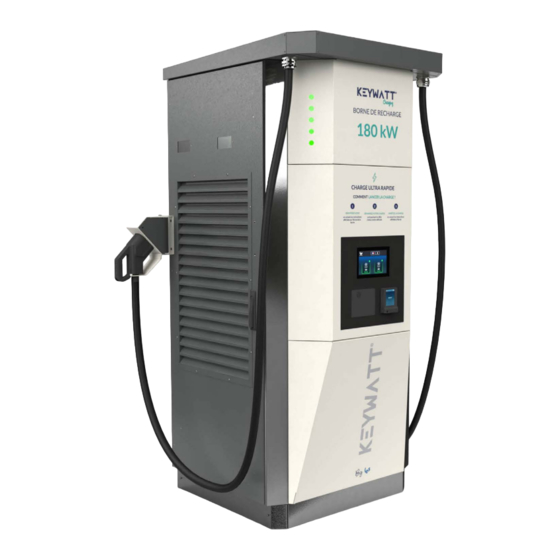

- Page 1 User Manual Keywatt S120 / S150 / S180 Edition: 10/2023 ® www.ies-synergy.com...
- Page 2 IES Synergy, given in writing. You also agree not to establish any hypertext links to this document or its content. IES Synergy does not grant any right or license for the personal and noncommercial use of the document or its content, except for a non-exclusive license to consult it on an “as is”...
-
Page 3: Table Of Contents
Start an EV charge session (A: Prepayment) Start an EV charge session (B: Pre-authorization) Start an EV charge session (C: Pre-authorization) EV charge Stop an EV charge session Emergency Stop (available only on fleet version) Other messages Errors www.ies-synergy.com User Manual DUM4021418-EN... -
Page 4: Safety Notes
Electrical equipment should be installed, operated, serviced, and maintained only by qualified personnel. No responsibility is assumed by IES Synergy for any consequences arising out of the use of this material. A qualified person is one who has skills and knowledge related to the construction and operation of electrical equipment and its installation, and has received safety training to recognize and avoid the hazards involved. -
Page 5: About The Manual
Installation Manual User Manual DUM4021418-EN Service Manual DMM4021418-EN User comments We invite you to write to us to communicate any inaccuracies or omissions, or to make general comments or suggestions regarding the quality of this manual. www.ies-synergy.com User Manual DUM4021418-EN... -
Page 6: General Safety Instructions
• Do not use a cord extension set or second cable assembly in addition to the cable assembly for the connection of the EV to the EVSE. Failure to follow these instructions may result in serious injury or equipment damage. www.ies-synergy.com User Manual DUM4021418-EN... -
Page 7: Overview
Speaker IHM, RFID, light intensity and proximity sensors ❾ Payment terminal and contactless RFID reader (in version for public access) ❿ Emergency Stop button (in version for fleets) *Note: May change depending on version or technical modification www.ies-synergy.com User Manual DUM4021418-EN... -
Page 8: Specifications
Hardware over voltage protection Software over voltage protection Over temperature protection Reverse polarity protection DC output contactor Yes (2 poles) Rated current fuse (output) FUSE Galvanic isolation input / output Max time for DC line discharge < 60V <60V www.ies-synergy.com User Manual DUM4021418-EN... -
Page 9: Dc Insulation Monitor Device Characteristics
To start a charge, users must swipe a contactless tag RFID card across the reader and/or can swipe a credit card across the RFID Payment terminal. Frequency Bands 13.56 Mhz Contactless tag RFID Power output -4.35dBuA/m Payment RFID Power output 13.17 dBµA/m @10m (Self 2000) www.ies-synergy.com User Manual DUM4021418-EN... - Page 10 Max output current will be adapted versus maximum carrying current of the vehicle plug. Output current can be even reduced with the power derating versus temperature. With derating from 35°C. Design in compliance with CE directives. May change depending on version. www.ies-synergy.com User Manual DUM4021418-EN...
- Page 11 KeyWatt S180; S150 and S120 are equipped with CCS2 connectors which are marked in accordance with EN 17186 as follows: ❶ on the station ❷ on the CCS connector ❶ EV charging station DC: 180 kW 200 - 1000 V ❷ Compliance www.ies-synergy.com User Manual DUM4021418-EN...
-
Page 12: Utilization
CCS connector 2 reserved CCS connector 1 CCS connector 2 CCS connector 2 CCS connector 2 plugged. CCS connector 2 simultaneously charging. CCS connector 2 available. Communicating available charging. available Cables connected. with the EV. Reserved www.ies-synergy.com User Manual DUM4021418-EN... -
Page 13: Prerequisite
HMI. To check that the charging station is connected to the supervision tool: → If the charging station is not connected to the supervision server, please contact the operator or refer to the maintenance manual. www.ies-synergy.com User Manual DUM4021418-EN... -
Page 14: Start An Ev Charge Session (A: Prepayment)
Start an EV charge session (A: Prepayment) Select the type of charge Choose identification mode → Click on (++) or (--) to choose your consumption amount Press PLAY → Tap card on POS Payment accepted → Connect the EV www.ies-synergy.com User Manual DUM4021418-EN... -
Page 15: Start An Ev Charge Session (B: Pre-Authorization)
Start an EV charge session (B: Pre-authorization) AllowConsumptionChoice = TRUE Select the type of charge Choose identification mode → Press OK Click on (++) or (--) to choose the duration → Press PLAY Tap card on POS → Connect the EV www.ies-synergy.com User Manual DUM4021418-EN... -
Page 16: Start An Ev Charge Session (C: Pre-Authorization)
Start an EV charge session (C: Pre-authorization) AllowConsumptionChoice = FALSE Select the type of charge Choose identification mode → Press OK Tap card on POS → Connect the EV www.ies-synergy.com User Manual DUM4021418-EN... -
Page 17: Ev Charge
The charger will automatically stop once charging is completed. The charger will adjust its output according to the de- mands of the vehicle, ambient temperature and other factors. After completing the charge of the EV, the charging station performs multiple control steps before disconnecting the vehicle. www.ies-synergy.com User Manual DUM4021418-EN... -
Page 18: Stop An Ev Charge Session
Stop an EV charge session Selected consumption reached Unplug the EV To stop the charge before the end of the EV charge: Press "STOP" Tap same card on POS Unplug the EV www.ies-synergy.com User Manual DUM4021418-EN... -
Page 19: Emergency Stop (Available Only On Fleet Version)
To emergency stop follow these steps: ❶ ❷ To reset after an emergency stop, rotate the button clockwise until it pops outward. After a self-test, the display will remove the emergency stop message and will be ready for a new session. www.ies-synergy.com User Manual DUM4021418-EN... -
Page 20: Other Messages
Remote reset started... Station will reboot now. Station is being rebooted. Station rebooted during a charge. Please unplug and retry to Station rebooted. Please unplug your vehicle. launch the charge. Warning: insulation failure. Cable insulation failed. Please contact support. www.ies-synergy.com User Manual DUM4021418-EN... -
Page 21: Errors
Connection between HMI screen and charger has been Connection between screen and charger has been lost. Please lost. unplug your vehicle. Error occurred: 0x-- For all other error codes, please refer to maintenance manual. Please press X once your vehicle is unplugged. www.ies-synergy.com User Manual DUM4021418-EN... - Page 22 Notes www.ies-synergy.com User Manual DUM4021418-EN...
- Page 23 Notes www.ies-synergy.com User Manual DUM4021418-EN...
- Page 24 Tel: +33 (0)4 99 13 62 80 Tel: +49(0)8972017919 Fax: +33 (0)4 99 13 62 81 IES-Synergy Inc. (USA) IES WANMA New Energy (China) 330 East Maple Rd Building No 4, Wellong Technology Park Unit U No. 88 Jiang Lin Rd...
