User Manual
Keywatt 24 Station
www.ies-synergy.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Keywatt 24 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for IES Keywatt 24

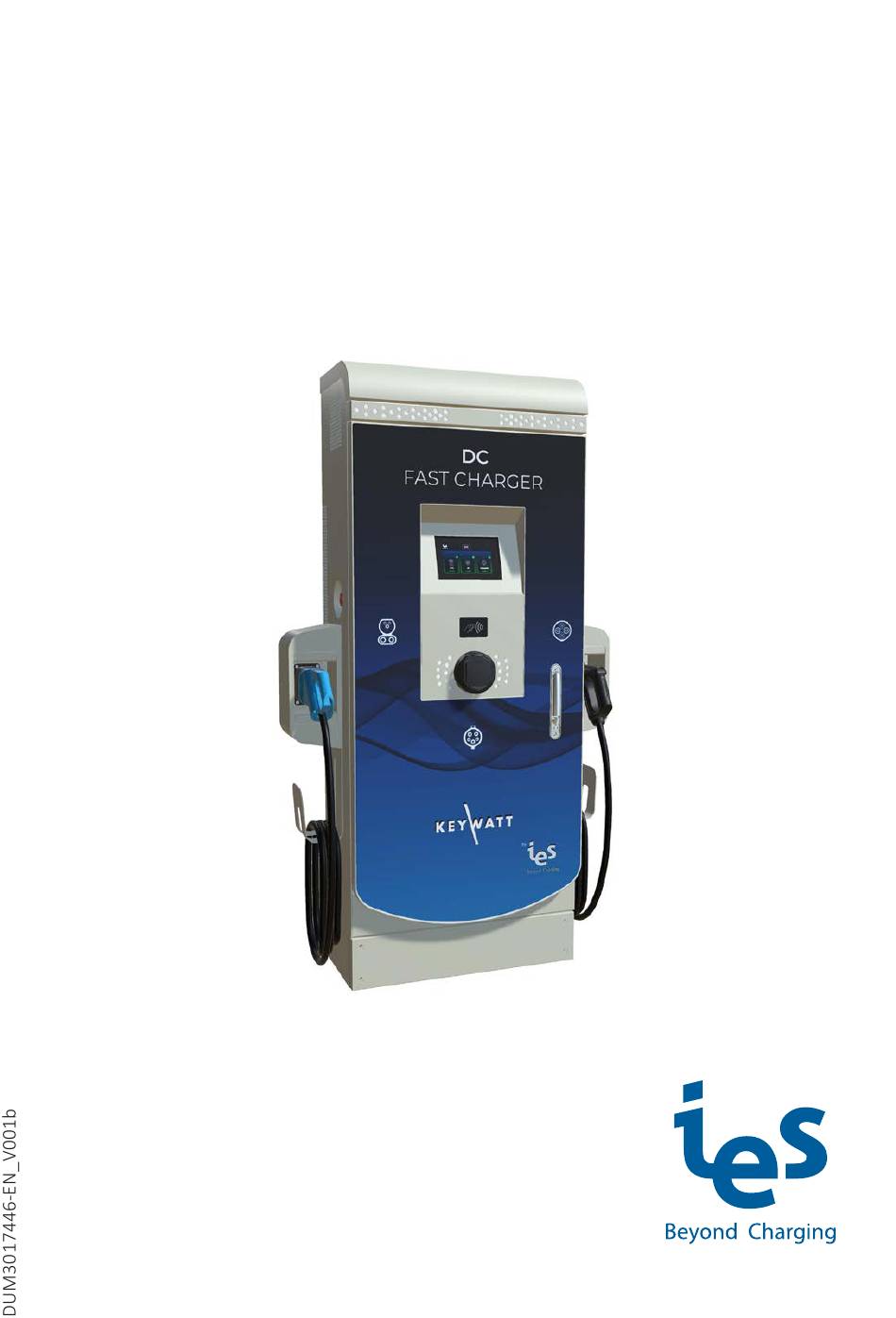

  • Page 1 User Manual Keywatt 24 Station www.ies-synergy.com...
  • Page 2 IES Synergy, given in writing. You also agree not to establish any hypertext links to this document or its content. IES Synergy does not grant any right or license for the per- sonal and noncommercial use of the document or its content, except for a non-exclusive license to consult it on an “as is”...
  • Page 3: Table Of Contents

    Document scope Related documents User comments General safety instructions Overview External view Specification Main supply Technical specifications Utilization Human/Machine interface (HMI) and LEDs Prerequisite Start an EV charge session EV charge Stop an EV charge session Emergency Stop Errors www.ies-synergy.com...
  • Page 4: Safety Notes

    NOTICE is used to address practices not related to physical injury. Please note IES Synergy declines all responsibility for improper use of this equipment. Technical documentation is an integral part of a product. Until it is disposed of, always keep the technical docu- mentation close to the unit at hand, as it contains important information.
  • Page 5: About The Manual

    User Manual DUM3017446-EN 2. About the manual Purpose of this manual This guide describes how to use the Keywatt 24 Station. Document scope This guide concerns the following charging stations: • P/N: ST24 TRI 3PN CHARGER Related documents Document title...
  • Page 6: General Safety Instructions

    • To ensure proper and safe operation, please read these user instructions carefully and keep them for future reference. • This manual contains important instructions for KEYWATT 24 STATION that shall be followed during installation, operation and maintenance of the unit.
  • Page 7: Overview

    CCS Type 2 DC connector COMBO 2 LED CHAdeMO LED Touchscreen display RFID reader Type 2S AC outlet LED AC socket outlet Type 2 S CHAdeMO DC connector Key lock Note: May change depending on version or technical modification www.ies-synergy.com...
  • Page 8: Specification

    Output connector (charging station side) Permanent mounting Plug #1 COMBO 2 Car Plug connector Plug #2 CHAdeMO Output cable length Meters Internal DC output protection Hardware and software short circuit protection Software and Hardware over voltage protection adjustable +10% max www.ies-synergy.com...
  • Page 9 1758 x 1000 x 396 mm Weight (without cable and connector) 200 kg Fastening to concrete slab with suitable fas- Type of installation tening points Fixation points 4 goujons M14 (non fournis) Mechanical impact resistance (not the screen) IK10 Protection type (EN60529) IP55 www.ies-synergy.com...
  • Page 10 Max output current will be adapted versus maximum carrying current of the vehicle plug. The output current is reduced as a function of the temperature above 40°C.. CE marking affixed on the product attest the conformity of the product with applicable requirements of relevent Community har- monization legislation. www.ies-synergy.com...
  • Page 11 User Manual DUM3017446-EN Compliance Derating There is a direct correlation between the current delivered and the ambient temperature. The output power is determined by the power vs. temperature derating curve below : www.ies-synergy.com...
  • Page 12: Utilization

    CCS and AC CCS, AC and CHAdeMO CHAdeMO unavailable End of CCS and AC charge AC error detected simultaneously charging available Communicating with Cables connected Dual charging disabled CHAdeMO unavailable the EV Note: Applicable in COMBO, CHAdeMO and AC. www.ies-synergy.com...
  • Page 13: Prerequisite

    To check that the charging station is connected to the supervision tool: If the charging station is not connected to the supervision server, please refer to the maintenance manual. Start an EV charge session 1) Select the type of charge www.ies-synergy.com...
  • Page 14 Press “Start” (free-use mode) or swipe an activated RFID card or start the charge remotely via a supervision application Note: Applicable in COMBO, CHAdeMO and AC Note: Applicable in COMBO, CHAdeMO and AC 3) EV connection Note: Applicable in COMBO, CHAdeMO and AC www.ies-synergy.com...
  • Page 15: Ev Charge

    The charger will adjust its output according to the demands of the vehicle, ambient temperature and other factors. After completing the charge of the EV, the charging station performs multiple control steps before disconnect- ing the vehicle. www.ies-synergy.com...
  • Page 16: Stop An Ev Charge Session

    Note: Applicable in CHAdeMO Note: Applicable in COMBO and AC Note: Applicable in CHAdeMO Stop an EV charge session To stop the charge before the end of the EV charge: Note: Applicable in COMBO and CHAdeMO Note: Applicable in AC www.ies-synergy.com...
  • Page 17 The screen displays that the session is ending: COMBO and AC CHAdeMO Unplug the EV once the charge is done Press once the EV is unplugged. Note: Applicable in COMBO and AC Note: Applicable in CHAdeMO Note: Applicable in COMBO and AC Note: Applicable in CHAdeMO www.ies-synergy.com...
  • Page 18: Emergency Stop

    To emergency stop follow these steps: ❶ ❷ ❸ To reset after an emergency stop, rotate the button clockwise until it pops outward. After a self-test, the display will remove the emergency stop message and will be ready for a new session. www.ies-synergy.com...
  • Page 19 Charging station shut down. Please contact support to restart the charging station. Updating station... Charging not available. Charging station is being updated. Please wait. Error updating. DO NOT CHARGE HERE. Wait for Error updating. Please contact support for updating correct update. the charging station. www.ies-synergy.com...
  • Page 20: Errors

    Not in CHAdeMO: Connector error. Please keep the Error occurred: 0x22 - 0x33 Connector error. Please keep the connector closely connector closely leant against your vehicle when leant against your vehicle when plugging, until the plugging, until the charge has started. charge has started. www.ies-synergy.com...
  • Page 21 Not in CHAdeMO: For all other error codes, please Error occurred: 0x-- Please unplug your vehicle. refer to maintenance manual. Error occurred: 0x-- CHAdeMO only: For all other error codes, please re- Please press X once your vehicle is unplugged. fer to maintenance manual. www.ies-synergy.com...
  • Page 22 User Manual DUM3017446-EN Notes www.ies-synergy.com...
  • Page 23 User Manual DUM3017446-EN Notes www.ies-synergy.com...
  • Page 24 Tel: +33 (0)4 99 13 62 80 Tel: +49(0)80244633980 Fax: +33 (0)4 99 13 62 81 IES-Synergy Inc. (USA) IES WANMA New Energy (China) 330 East Maple Rd Building No 4, Wellong Technology Park Unit U No. 88 Jiang Lin Rd...
