Summary of Contents for IES Keywatt 50

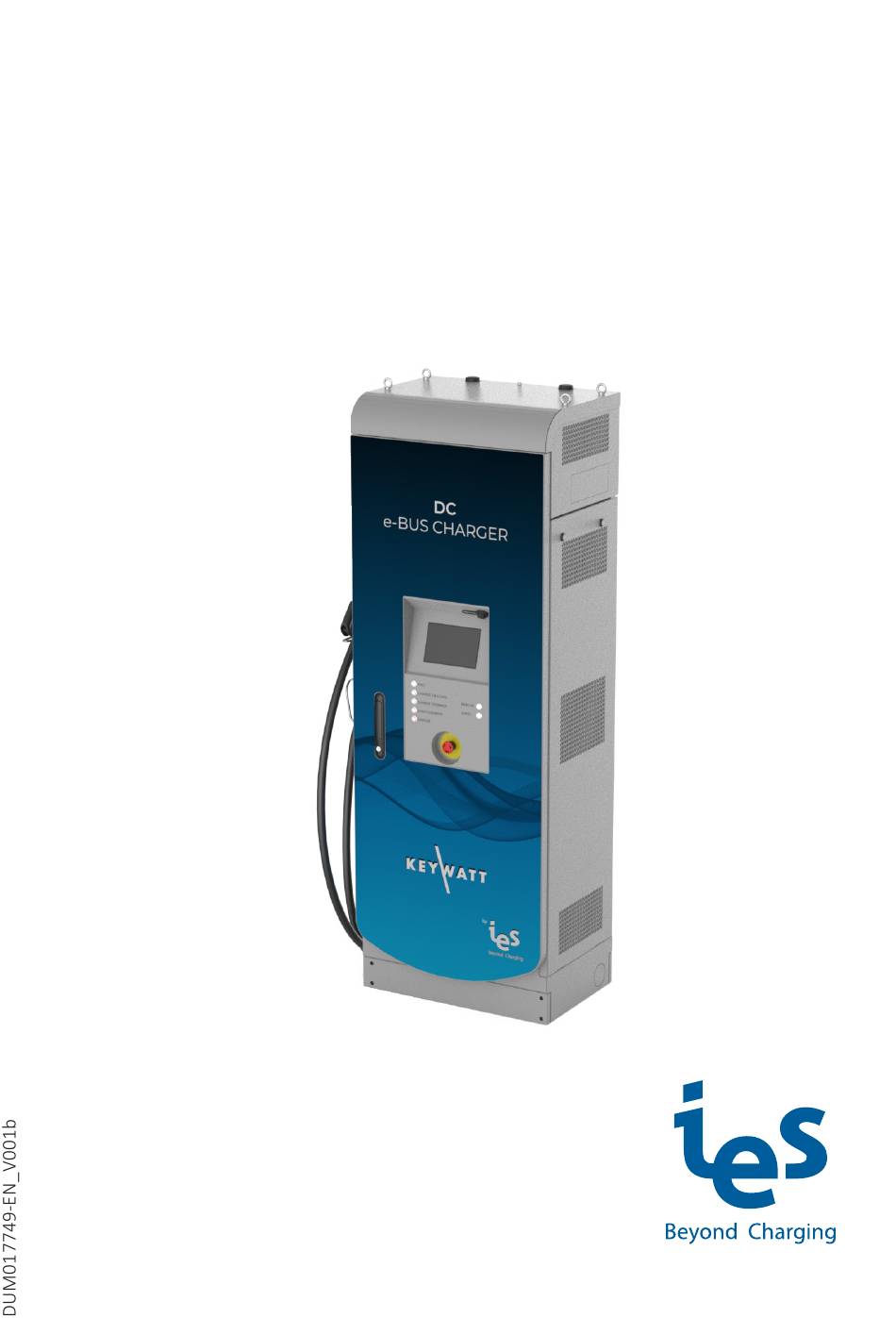

- Page 1 User Manual Keywatt 50 Station Bus www.ies-synergy.com...
- Page 2 IES Synergy, given in writing. You also agree not to establish any hypertext links to this document or its content. IES Synergy does not grant any right or license for the per- sonal and noncommercial use of the document or its content, except for a non-exclusive license to consult it on an “as is”...
-
Page 3: Table Of Contents
Main supply 3-phase L1/L2/L3 + N + GND (3x400V Technical specification Compliance Derating Utilization Human/Machine interface (HMI) Lights Start a charge session EV communication EV charge Stop a charge session Emergency Stop Displayed messages Error messages Other messages Cleaning www.ies-synergy.com... -
Page 4: Safety Notes
CAUTION indicates a potentially hazardous situation which, if not avoided, can result in minor or mod- erate injury. NOTICE NOTICE is used to address practices not related to physical injury. Please note No responsibility is assumed by IES Synergy for any consequences arising out of the use of this material. www.ies-synergy.com... -
Page 5: About The Manual
This guide aims to provide informations needed for the use of the Keywatt 50 Station Bus. This guide must be read with other related documents. This guide is intended for users of the charging stations. -
Page 6: General Safety Instructions
• This equipment employs parts, such as switches and relays, that tend to produce arcs or sparks. • Never open the charger while input power is present. Failure to follow these instructions can result in death or serious injury www.ies-synergy.com... -

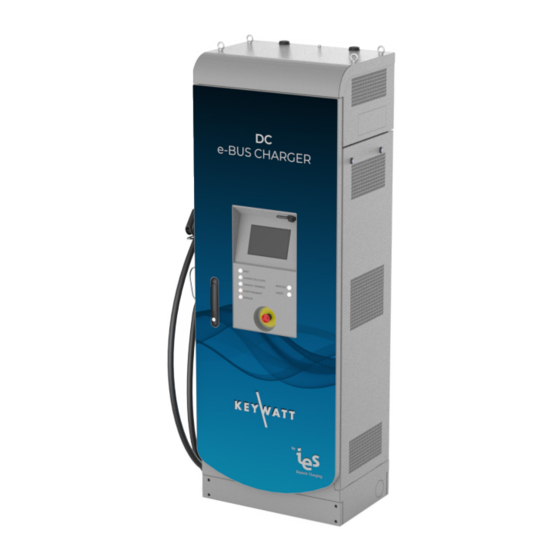

Page 7: Overview
Lifting rings ❷ Touch screen ❸ Connector holster (in option) ❹ State of charge ❺ Door lock ❻ RJ45 input (for maintenance only) ❼ Power button (START/STOP) ❽ Emergency Stop button Note: May change depending on version or technical modification www.ies-synergy.com... -
Page 8: Specification
Software and Hardware over voltage protection adjustable +10% max Over temperature protection 70°C Reverse polarity protection DC output Contactor Yes (2 poles) Rated Current Fuse (output) FUSE Galvanic isolation 2520 input / output Max time for DC line discharge < 60V <60V www.ies-synergy.com... - Page 9 Electric vehicle conductive charging system - Part 21-2: Electric vehicle requirements for conductive connection to an AC/DC supply EMC IEC 61851-21-2 requirements for off-board electric vehicle charging systems Electric vehicle conductive charging system - Part 23: DC Electric vehicle IEC 61851-23 charging station www.ies-synergy.com...
-
Page 10: Compliance
Output current can be even reduced with the power derating versus temperature. With derating above 30°C Design in compliance with CE directives Compliance Derating As a direct correlation exists between the output power and the ambient temperature a derating curve is pro- vided for all charging station. www.ies-synergy.com... - Page 11 User Manual DUM017749-EN www.ies-synergy.com...
-
Page 12: Utilization
Charger ready CCS connected Charging Charge ended Warning Error Start a charge session Before starting a charge session, ensure the unit is properly assembled in accordance with the assembly in- structions being used. READY START f = 0.5 Hz READY www.ies-synergy.com... -
Page 13: Ev Communication
All these steps are necessary to adapt the charging station parameters to the EV. → EV charge While the EV is charging, the charging station shows the information about the charge (time since the start of charging, charged energy and percentage of charge). f = 0.5 Hz CHARGE ONGOING www.ies-synergy.com... -
Page 14: Stop A Charge Session
3. Unplug the connector from the vehicle To reset after an emergency stop, rotate the button clockwise until it pops outward. After a self-test, the display will remove the emergency stop message and will be ready for a new session. www.ies-synergy.com... -
Page 15: Displayed Messages
Message displayed during the startup of the Booting interrupted ! charging station if the CCU board does not work. Please call support. Please contact support. Error timeout. Please unplug your vehicle then Time out, user identified, unplug the vehicle before identify. retrying to identify. www.ies-synergy.com... -
Page 16: Other Messages
Updating station... Charging not available. Charging station is being updated. Please wait. Remote reset started... Station will reboot now. Station is being rebooted. Station rebooted. Please unplug your vehicle. Station rebooted during a charge. Please unplug and retry to launch the charge. www.ies-synergy.com... -
Page 17: Cleaning
• Conduct a visual inspection of the charging gun and ensure that gun does not show any visual damage, arcing or rust. Every year, conduct a visual inspection of the state of the lightning protections and ensure that they are not damages. www.ies-synergy.com... - Page 18 User Manual DUM017749-EN Notes www.ies-synergy.com...
- Page 19 User Manual DUM017749-EN Notes www.ies-synergy.com...
- Page 20 Tel: +33 (0)4 99 13 62 80 Tel: +49(0)80244633980 Fax: +33 (0)4 99 13 62 81 IES-Synergy Inc. (USA) IES WANMA New Energy (China) 330 East Maple Rd Building No 4, Wellong Technology Park Unit U No. 88 Jiang Lin Rd...
