Summary of Contents for Falcon Nexus 110 Dual Fuel
- Page 1 USER GUIDE & INSTALLATION INSTRUCTIONS Nexus 110 Dual Fuel Australia U110622 - 07...
-
Page 3: Table Of Contents
Contents Before You Start... Troubleshooting Personal Safety Installation Electrical Connection Safety Service and Spares If You Smell Gas Safety Requirements and Regulations Peculiar Smells Provision of Ventilation Cooling Fan Location of Cooker Ventilation Conversion Maintenance Positioning the Cooker Hob Care Moving the Cooker Grill/Glide-out Grill™... -
Page 5: Before You Start
Before You Start... Your cooker should give you many years of This appliance is designed for domestic • trouble-free cooking if installed and operated cooking only. Use for any other purpose correctly. It is important that you read this could invalidate any warranty or liability section before you start. -
Page 6: Electrical Connection Safety
Always keep combustible materials, e.g. Make sure that the gas supply is turned • • curtains, and flammable liquids a safe on and that the cooker is wired in and distance away from the cooker. switched on. DO NOT spray aerosols in the vicinity of In your own interest and that of safety, it is •... -
Page 7: Ventilation
NEVER leave the hotplate unattended Ventilation • at high heat settings. Pans boiling over The use of a cooking appliance results in the can cause smoking, and greasy spills may production of heat and moisture in the room catch on fire. Use a deep fat thermometer in which it is installed. - Page 8 DO NOT modify this appliance. This • Fig. 1.1 appliance is not intended to be operated by means of external timer or separated remote-control system. If flammable materials are stored in the • ArtNo.324-0001 Steam burst drawer, oven(s) or grill(s) it may explode and result in fire or property damage.
-
Page 9: Hob Care
WARNING: DO NOT use the timed oven if the If the surface is cracked, • adjoining oven is already warm. switch off the appliance to avoid the possibility of electric shock. DO NOT place warm food in the oven to be •... -
Page 10: Grill/Glide-Out Grill™ Care
Always turn the control to the OFF position NEVER use paint solvents, washing soda, • • before removing a pan. caustic cleaners, biological powders, bleach, chlorine based bleach cleaners, Avoid heating an empty pan. Doing so may • coarse abrasives or salt. damage both the hob and pan. -
Page 11: Cooker Overview

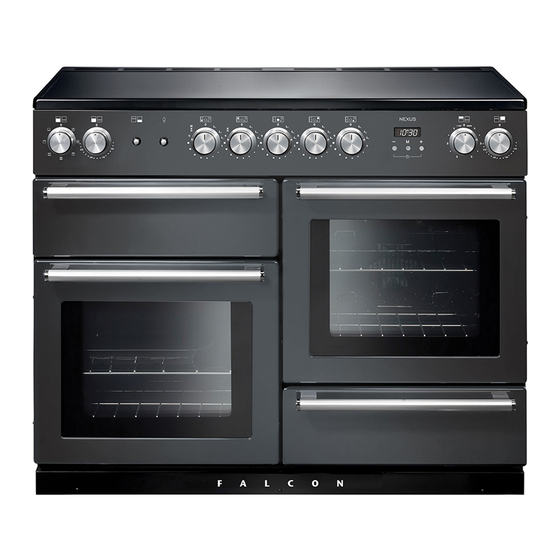

Cooker Overview Fig. 2.1 The 110 dual fuel cooker (Fig. 2.1) has the following features: Fig. 2.2 4 hotplate burners, a Wok Burner and a Ceramic Multizone hotplate Control Panel Glide-out Grill™ with 4 position Trivet Multifunction Oven Fan Oven Bread Proving/Storage Drawer Hotplate Burners The labels by each of the control knobs indicates which area... -
Page 12: Wok Burner
If and when you let go of the control knob or the burner goes Fig. 2.3 out, then the FSD has not been bypassed. Turn the control knob to the OFF position and wait for one minute before you try again, this time making sure to hold in the control knob for slightly longer. -
Page 13: The Ceramic Hotplate
The Ceramic Hotplate Fig. 2.11 The hotplate area on the left-hand side is dual purpose. It can be used either as a ceramic hob to heat a pan in the usual way (Fig. 2.11) or it can be used to heat the supplied griddle plate. -
Page 14: The Griddle Plate
The Griddle Plate Fig. 2.16 The griddle plate (Fig. 2.17) is designed to fit securely on the locating pins over the ceramic heating area (Fig. 2.18). DO NOT try to use it over one of the gas burners. It will not be securely held and you may damage the non-stick finish. -
Page 15: The Glide-Out Grill
The Glide-out Grill™ Fig. 2.21 Open the door and pull the grill pan carriage forward using the handle (Fig. 2.21). The grill has two elements that allow either the whole area of the pan to be heated or just the right-hand half. Adjust the heat to suit by turning the control knob. -
Page 16: Bread Proving Drawer
Bread Proving Drawer Fig. 2.24 The Bread Proving Drawer is found on the right at the base of the cooker (Fig. 2.24). Within the Bread Proving Drawer there are slots in the base to allow warmed air to flow through into the drawer from the element underneath. -
Page 17: Cleaning
Cleaning Function Clean the inside of the drawer with hot soapy water and a Defrost To thaw small items in the oven without heat soft cloth, rinse and dry. A full cooking function, even heat throughout, The Bread Proving Drawer is ideal for storing baking trays Fan oven great for baking and other cooking utensils. - Page 18 Multifunction Oven Functions Fan Assisted Oven This function operates the fan, circulating air heated Defrost by the elements at the top and the base of the oven. This function operates the fan to circulate cold air The combination of fan and conventional cooking only.
-
Page 19: Oven Lights
Fan Oven Fig. 2.26 The right-hand oven is a fan oven that circulates hot air continuously, which means faster, more even cooking. The recommended cooking temperatures for a fan oven are generally lower than a conventional oven. NOTE: Please remember that all cookers vary so temperatures in your new ovens may differ to those in your previous cooker. -
Page 20: Accessories
Accessories Fig. 2.30 Shelf guard Glide-out Shelves The oven shelves (Fig. 2.30) are retained when pulled forward but can be easily removed and refitted. Both ovens are supplied with glide-out oven shelves. Front To fit the glide-out shelves, hook the front of the shelf onto the runners as shown (Fig. -
Page 21: Button Clock
3 Button clock Using the clock Fig. 3.1 You can use the clock to turn the programmable oven on and off. The clock must be set to the time of day before the oven will work. NOTE: When using the timer functions, first set the clock as ArtNo.306-0001 - 3-button clock required before setting the oven temperature. - Page 22 When the ‘stop time’ is reached an alarm will sound and Fig. 3.7 the oven will stop working. The word ‘AUTO’ will flash on the display (Fig. 3.6). Press any button to stop the alarm and return to manual cooking. If the alarm is not stopped, it will stop ArtNo.306-0001 - 3-button clock automatically after 7 minutes.
-
Page 23: Cooking Tips
Cooking Tips Tips on cooking with the timer General oven tips If you want to cook more than one dish, choose dishes that The wire shelves should always be pushed firmly to the back require approximately the same cooking time. However, of the oven. -
Page 24: Cooking Table
Cooking Table The oven control settings and cooking times given in the table below are intended to be used as a Top (T) guide only. Individual tastes may require the temperature to be altered to provide a preferred result. ArtNo.050-0007 Centre (C) Oven shelf positions Food is cooked at lower temperature in a fan oven than in a conventional oven. -
Page 25: Cleaning Your Cooker
Cleaning Your Cooker Essential Information Fig. 6.1 Isolate the electricity supply before carrying out any thorough cleaning. Allow the cooker to cool. Never use paint solvents, washing soda, caustic cleaners, biological powders, bleach, chlorine based bleach cleaners, coarse abrasives or salt. Do not mix different cleaning products –... -
Page 26: Ceramic Hotplate
Ceramic Hotplate Fig. 6.5 Daily Care First of all, make sure that the heat indicator light is off and that the cooking surface is cool. Apply a small dab of ceramic cleaning cream in the centre of the area to be cleaned. Dampen a clean paper towel and work the cream onto the cooking surface. -
Page 27: Grills
Grills Fig. 6.6 The grill pan and trivet should be washed in hot soapy water. Alternatively, the grill pan can be washed in a dishwasher. After grilling meats or any foods that soil, leave to soak for a few minutes immediately after use. Stubborn particles may be removed from the trivet using a nylon brush. -
Page 28: Ovens
Control Panel and Doors Fig. 6.10 Avoid using any abrasive cleaners, including cream cleaners. For best results, use a liquid detergent. The same cleaner can also be used on the doors. Alternatively, use a soft cloth wrung out in clean hot soapy water. You can use the same method for cleaning the control panel and knobs. -
Page 29: Cleaning Table
Cleaning Table Cleaners listed (Table 6.1) are available from supermarkets or electrical retailers as stated. For enamelled surfaces use a cleaner that is approved for use on vitreous enamel. Regular cleaning is recommended. For easier cleaning, wipe up any spillages immediately. Hotplate Part Finish... -
Page 30: Troubleshooting
Troubleshooting Hotplate/Cooktop ignition or hotplate burners faulty Food is cooking too slowly, too quickly, or burning Is the power on? Is the clock illuminated? Cooking times may differ from your previous oven. If not, there maybe something wrong with the power supply. Check that you are using the recommended temperatures and shelf positions –... - Page 31 Oven light is not working Fig. 7.1 The bulb has probably burnt out. You can buy a replacement bulb (which is not covered under the warranty) from a good electrical shop. Ask for a 40 W - 230 V halogen lamp (G9) (Fig. 7.1). Turn off the power at the circuit breaker.
-
Page 32: Installation
Andi-Co Australia Pty Ltd. 1 Stamford Road, Oakleigh, VIC 3166 Customer Care Tel: 1300 650 020 Email: service@andico.com.au Name of Appliance Nexus 110 Dual Fuel Appliance Serial Number* Fuel Type Dual Fuel Date of Purchase Installer’s Name, Address and Telephone No. -
Page 33: Safety Requirements And Regulations
INSTALLATION Check the appliance is gas sound when you have finished. Safety Requirements and Provision of Ventilation Regulations This appliance is not connected to a combustion products evacuation device. Particular attention shall be given to the You must be aware of the following safety requirements & relevant requirements regarding ventilation. -
Page 34: Positioning The Cooker
70°C. If this appliance is installed near vinyl wrapped surfaces, use an installation kit available from the vinyl-wrap supplier. Falcon cannot accept any responsibility for damage caused due to installation into cabinets with low temperature tolerances. - Page 35 INSTALLATION Check the appliance is gas sound when you have finished. Overhead – Measurement A Fig. 8.1 The minimum height of any surface above the cooker is 650 mm above the hotplate. Cookerhoods and exhaust fans shall be installed in accordance with the manufacturer’s instructions.
-
Page 36: Moving The Cooker
INSTALLATION Check the appliance is gas sound when you have finished. Moving the Cooker Fig. 8.3 On no account try and move the cooker while it is plugged into the electricity supply. The cooker is very heavy, so take extra care. We recommend that two people manoeuvre the cooker. -
Page 37: Fitting The Stability Bracket Or Chain
INSTALLATION Check the appliance is gas sound when you have finished. Fitting the Stability Bracket or Fig. 8.7 Chain Stability chain Unless otherwise stated, a cooker using a flexible gas connector must be secured with a suitable stability device. Suitable stability devices are shown in Fig. 8.7, Fig. 8.8, Fig. 8.9 and Fig. -
Page 38: Gas Connection
INSTALLATION Check the appliance is gas sound when you have finished. Gas Connection Fig. 8.11 This must be in accordance with the relevant standards. The gas supply needs to terminate with a down-facing Gas inlet threaded fitting ½” connection. The inlet connector is located just below the hotplate level at the rear of the cooker. -
Page 39: Electrical Connection
INSTALLATION Check the appliance is gas sound when you have finished. Electrical Connection Current Operated Earth Leakage Breakers This appliance must be installed by a qualified electrician to comply with with current AS/NZS 3000 Wiring Rules and The combined use of your cooker and other domestic regulations in force. -
Page 40: Fixed Wiring
INSTALLATION Check the appliance is gas sound when you have finished. Fixed Wiring Fig. 8.14 Disconnect from the mains supply. For connection to fixed wiring, i.e. flexible conduit, Remove the electrical terminal cover on the back panel (Fig. 8.14). Remove the M4 screw securing the reducer plates to the conduit box (Fig. -
Page 41: Final Fittings And Checks
INSTALLATION Check the appliance is gas sound when you have finished. Final Fittings and Checks Fig. 8.19 Hob Check Check each cooking zone in turn. Be sure to use pans of the correct size and material. Grill Check Turn on the grill control and check that the grill heats up. Oven Check Set the clock as described earlier, and then turn on the ovens. -
Page 42: Conversion To Lp Gas
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. 9. Conversion to LP Gas Conversion from Natural Gas Fig. 9.1 (1.0 kPa) to LPG X Propane (2.54 kPa) A suitably competent person must perform the conversion. -
Page 43: Set The Governor
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity and gas before servicing. Check appliance is safe when you have finished. Set the Governor Fig. 9.3 Unscrew the governor’s brass top. In the base of the brass top is a plastic snap-in converter device (Fig. -
Page 44: 10. Servicing
WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity before servicing. Check appliance is safe when you have finished. 10. Servicing BEFORE SERVICING ANY GAS CARRYING Fig. 10.1 COMPONENTS TURN OFF THE GAS SUPPLY Check the appliance is gas sound after completion of service. - Page 45 WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity before servicing. Check appliance is safe when you have finished. reconnected. Take care not to damage the ignition electrodes 2.6 To Change a Hotplate Burner Thermocouple of the burners.
- Page 46 WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity before servicing. Check appliance is safe when you have finished. 3.3 To Change the Ignition Generator DISCONNECT FROM THE ELECTRICITY SUPPLY. Pull the cooker forwards to gain access to the cover box at the rear of the cooker.
- Page 47 WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity before servicing. Check appliance is safe when you have finished. 5 Ovens Fig. 10.2 5.1 To Replace an Oven Thermostat DISCONNECT FROM THE ELECTRICITY SUPPLY. Remove the control panel and hotplate (see 1.1 &...
- Page 48 WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity before servicing. Check appliance is safe when you have finished. 5.5 To Remove the Right-hand Oven Element Fig. 10.3 DISCONNECT FROM THE ELECTRICITY SUPPLY. Remove the oven inner back (see 5.2). Element xing screws Remove the 2 screws from the top of the element and the 1 from the bottom of the element (Fig.
- Page 49 WARNING – SERVICING TO BE CARRIED OUT ONLY BY AN AUTHORISED PERSON Disconnect from electricity before servicing. Check appliance is safe when you have finished. Support the door and remove the screw nearest the hinge Fig. 10.8 pin (Fig. 10.7). Swing the hinge up and away from the door Centreline of hinge pin hinge pin.
-
Page 50: 11. Circuit Diagram
11. Circuit Diagram P095199 P095199 P095199 1.1kW 1.1kW P028728 P095199 P095199 P095199 The connections shown in the circuit diagram are for single-phase. The ratings are for 230 V 50 Hz. Code Description Code Description Code Colour Grill front switch Right-hand oven element Blue Grill energy regulator Right-hand oven fan... -
Page 51: 12. Technical Data
Natural Gas 1 kPa Propane 2.54 kPa See the appliance badge for test pressures. Dimensions Model NEXUS 110 Dual Fuel Overall height minimum 905 mm maximum 930 mm Overall width 1092 mm Overall depth 608 mm excluding handles, 648 mm including handles... - Page 52 Clarence Street, Royal Leamington Spa, Warwickshire, CV31 2AD, England. www.falconworld.com...
