where the serial data will be transmitted to (and received
from).
Gateway destination Port
Defines the port for the active serial gateway function (see
destination IP).
Notes
Both settings, Gateway destination IP and Gateway
destination port have to be set to enable the function.
When Serial Gateway is activated the serial port cannot be
used as a command interface. This also applies for the
device on the other side of the "Serial Gateway".
To establish a "Serial Gateway" between two devices only
one device has to be activated. In other words: Only one
device will need a Gateway destination IP and Port set.
On power up the active device will connect to the selected
device and will try to reconnect automatically in case of a
lost connection. This allows you to establish a serial
connection between the attached devices on each side over
LAN or WAN.

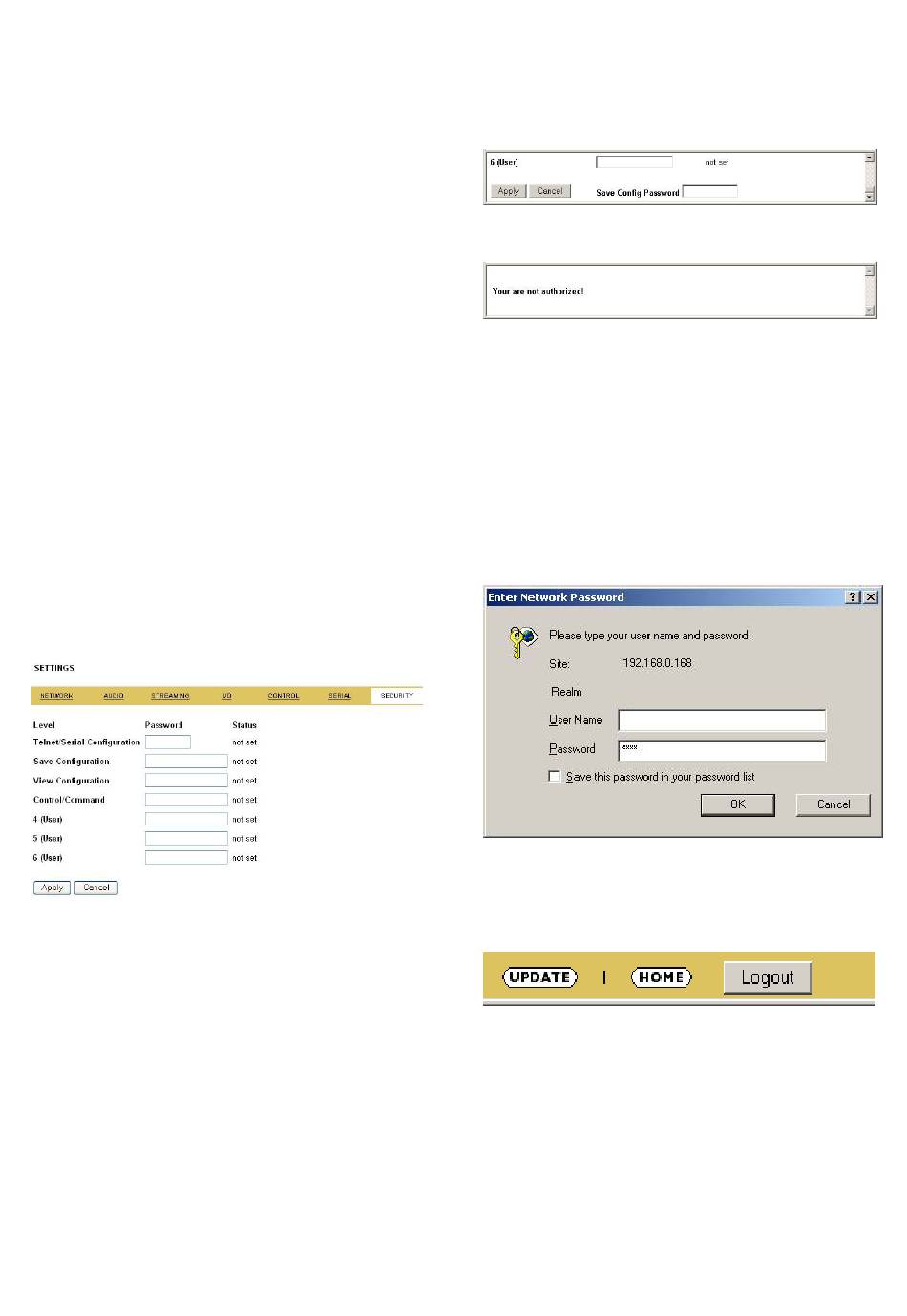

7.10 Security settings

These settings can be used to secure the access to the
Barix Instreamer on several levels. The status is shown
next to each password (set or not set). Access is free for
levels without a password (default setting).
Telnet / Serial configuration
Enter up to 7 characters to secure the access to the Telnet
and Serial configuration. Without a valid password the
network configuration cannot be changed.
Enter 8 characters to erase the current key.
Save configuration
Enter up to 24 characters to secure the saving of the
device configuration (Clicking the Apply button). Without a
valid password the device configuration cannot be saved!
Enter 25 characters to erase the current key.
Save configuration password usage
When the password is set the user has to type in the
Barix Instreamer User Manual Version 01.01
password in the "Save Config Password field" before hitting
the "Apply" button.
Otherwise a warning will be displayed without saving the
changes made:
View configuration
Enter up to 24 characters to secure the viewing of the
device configuration (Clicking the Config button).
Without a valid password the device configuration cannot
be viewed!
Enter 25 characters to erase the current key.
View configuration password usage
When the password is set the user clicking on the "Config"
button has to type in the password into the password field
of the pop up window (the user name does not matter).
Only one user can log in at a time. Further connections will
be refused while one user is logged in.
To log out click on the "Logout" link next to the "HOME"
icon in the menu bar.
Please hit your browser's Reload button if the "Logout" link
is not visible while logged in.
Control / Command
Enter up to 24 characters to secure the access to all
control and command interfaces (WEB/CGI, Serial, TCP
and UDP). Without a valid password the device cannot be
controlled. Enter 25 characters to erase the current key.
Page 10
