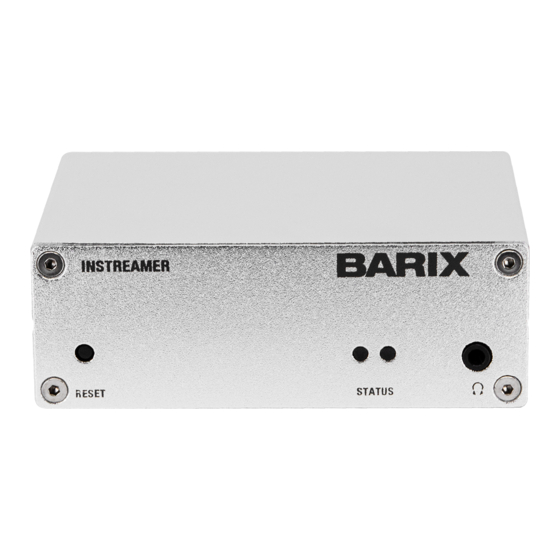

- Page 1 I N S T R E A M E R I C E MP3/AAC+ encoder with integrated Icecast Server This Manual describes: Instreamer ICE Firmware Version: v1.04 Released: 03.08.2018...
- Page 2 1 Introduction 1.1 What is the Instreamer ICE? The Instreamer ICE from Barix is an audio network encoder which allows to convert the audio into a data format to send/stream the data over network to remote receivers. It is also a streaming server and can provide the network stream to multiple listeners/clients.
- Page 3 1.2 Applications The Instreamer ICE was designed with two applications in mind, namely: it can be used as a live encoder feeding either the built-in Icecast server or feed an external Icecast server. 1.2.1 Live encoder feeding integrated Icecast server - “Server mode”...
-
Page 4: About This Manual
• Quick Install Guide Barix is committed to helping you succeed with the Instreamer ICE. The first line of help should always be to read the manuals carefully. If after reading the manuals, you are still having trouble, here are some support resources that should help... - Page 5 You'll also need a computer connected to network. If you are going to connect the Instreamer ICE directly to a computer without a hub or switch, you must use a "crossover" cable, which is a specially-wired cable available at many electronics supply stores.
- Page 6 DHCP may change if the Instreamer is rebooted. If you decide to assign the Instreamer ICE a static IP address, you must be sure to use an address that is outside the range of addresses that are automatically assigned by any DHCP server on the network.
- Page 7 When successful then the Instreamer ICE´s HOME page will open. From here you have access to all other pages and you can configure the device. Released: “Date” Instreamer ICE User Manual...
- Page 8 System in Reset YELLOW Rescue (fast) System ready GREEN Application not GREEN running Application GREEN GREEN encoding Listeners/connecti Application GREEN YELLOW encoding Silence Application GREEN encoding Clipping Application GREEN GREEN encoding > 0 Listeners/connecti Released: “Date” Instreamer ICE User Manual...
-
Page 9: Usb Ports
The power connector on the device is located on the backside. The network connector is on the Backside of the device. It is a RJ45 10/100 Mbit Ethernet interface, autosensing. On the top of the network connector there are two LEDs. As soon the Released: “Date” Instreamer ICE User Manual... - Page 10 The left LED is showing the current network link state. Back – RS232 The Instreamer ICE provides an RS-232 serial interface. The RS-232 interface is supplied via a 9-pin sub D male connector, wired as a DTE. The connector's DTE wiring is similar to a personal computer's serial port, as defined in the following table.
- Page 11 To insert metadata over RS232, connect your PC with a serial null-modem cable or a serial cross cable to the Instreamer ICE. On the PC, open a serial terminal emulator ( e.g. Termite or Hyperterminal) with following settings115200 baud, 8 data bit, 1 stop bit, no parity, no flow control.
-
Page 12: User Interface Overview
User Interface – Overview The Instreamer ICE’s web UI features 6 pages: Login, Home, Network, Status, Stream, and Syslog. The role of each page is discussed below. Login Displays the login option. You can login as an administrator using the user “admin” or as a normal user “user”. -
Page 13: Network Settings
If you chose “DHCP”, then you can change the DHCP name of the device that is sent in DHCP request. When DHCP is enabled and no name is defined then it will use “barix- ipam400”. Make sure, the same DHCP name is not used twice in your network; therefore, it Released: “Date”... - Page 14 When “Static” IP address is selected, a manual IP address needs to be configured. Make sure that the IP address is unique in your network and fits its local net address. If you are unsure about free IP addresses you could use for the Instreamer ICE, please contact your network administrator.
- Page 15 Default is marked (enabled). SonicIP© Volume Here the volume level for the IP address announcement can be configured. Released: “Date” Instreamer ICE User Manual...
- Page 16 Barix update server. For the “Manual update”: first, fetch the firmware file from Barix’s website; second, click on the “Update Firmware” button; third, either use the drag-and-drop feature or click on the top Released: “Date”...
- Page 17 The “Automatic update” takes place on the night between Monday and Tuesday, between 4AM and 5AM, in order to minimize the disturbances. This process only happens if there is a newer firmware available for upload on Barix’s update server. You may disable this feature by clicking on “Automatic Updates ON/OFF”.
-
Page 18: Stream Settings
The saved file can be used as backup or to restore the stream later. Import Stream Use this button to restore a stream backup file from the PC back to the Instreamer ICE. Streaming ON When the device is rebooted the stream starts automatically, but when the stream was manually stopped before, then the Stream can be started again by using the “Streaming ON”... - Page 19 Instreamer ICE over internet. Server Type Select here in which mode you will use the Instreamer ICE. Select “Icecast Server” when the listeners should directly connect to the Instreamer ICE and listen the stream from its built-in Icecast server.
- Page 20 The mount point is part of the path where the stream can be requested from the Instreamer ICE. Configure here you desired mount point. Default is “MyStream1”, that means the stream can be requested on the Instreamer ICE from the path “http://ipaddress:port number/MyStream1”...
-
Page 21: Appendix A Specifications & Warranty
Operating Temperature & Humidity 0 - 50º C (32 - 122º F) 0 – 70% relative humidity, no condensing Warranty two years Certifications CE, ROHS, others in examination Released: 7 Apr 2016 Instreamer ICE User Manual 21... - Page 22 Appendix A Instreamer ICE Warranty The warranty terms are part of the General Terms and Conditions of Barix AG. The warranty period for defects due to material flaws, design errors or careless work is two years from time of purchase by the end customer. The contractual partner undertakes to notify supplier immediately in writing of any hidden defects identified during the warranty period.
- Page 23 32-bit addresses has been defined and is gradually supplanting the IPv4 scheme. However, most devices still implement IPv4 and most computers running modern operating system versions support both. This appendix does not address IPv6. The Instreamer ICE only supports currently IPv4. Released: 7 Apr 2016...
- Page 24 192.168.0.40 and a netmask of 255.255.255.0. For the sake of this example, assume that the Instreamer ICE wants to send a stream to a device at 192.168.0.32. Since this device is on the same subnet, (it shares the 192.10.0 portion of the IP address) the stream can be sent directly to the device at 192.10.0.32.
- Page 25 An IP address with a host address portion of all 1's implies a "broadcast" to all devices on the subnet. If the Instreamer ICE has an IP address of 192.10.0.40 and a netmask of 255.255.255.0, the broadcast address for this subnet is 192.10.0.255. No device on the network, including the Instreamer ICE can have an IP address of 192.10.0.255.
- Page 26 Appendix B Acceptance Reviews and Approvals Name Review Date Jerome Castan 03.08.2018...
-
Page 27: Document Management
Appendix B Document management Doc ID Doc Title Version Author Date Released: 7 Apr 2016 Instreamer ICE 50 User Manual 27...
