BARIX M400 Quick Install Manual

Quick Install Guide V1.1.2
Package Content and Accessories
Package contents
Instreamer ICE
Power supply
RCA stereo cable
Required Cable Set
Ethernet cable (not included)
Earphones/headsets (not included)
Device functionality

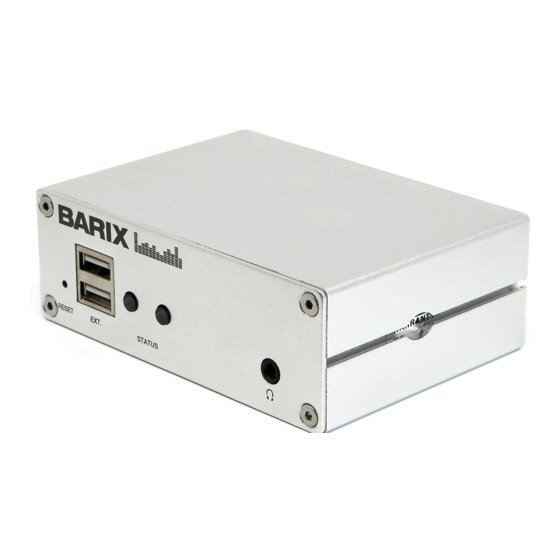

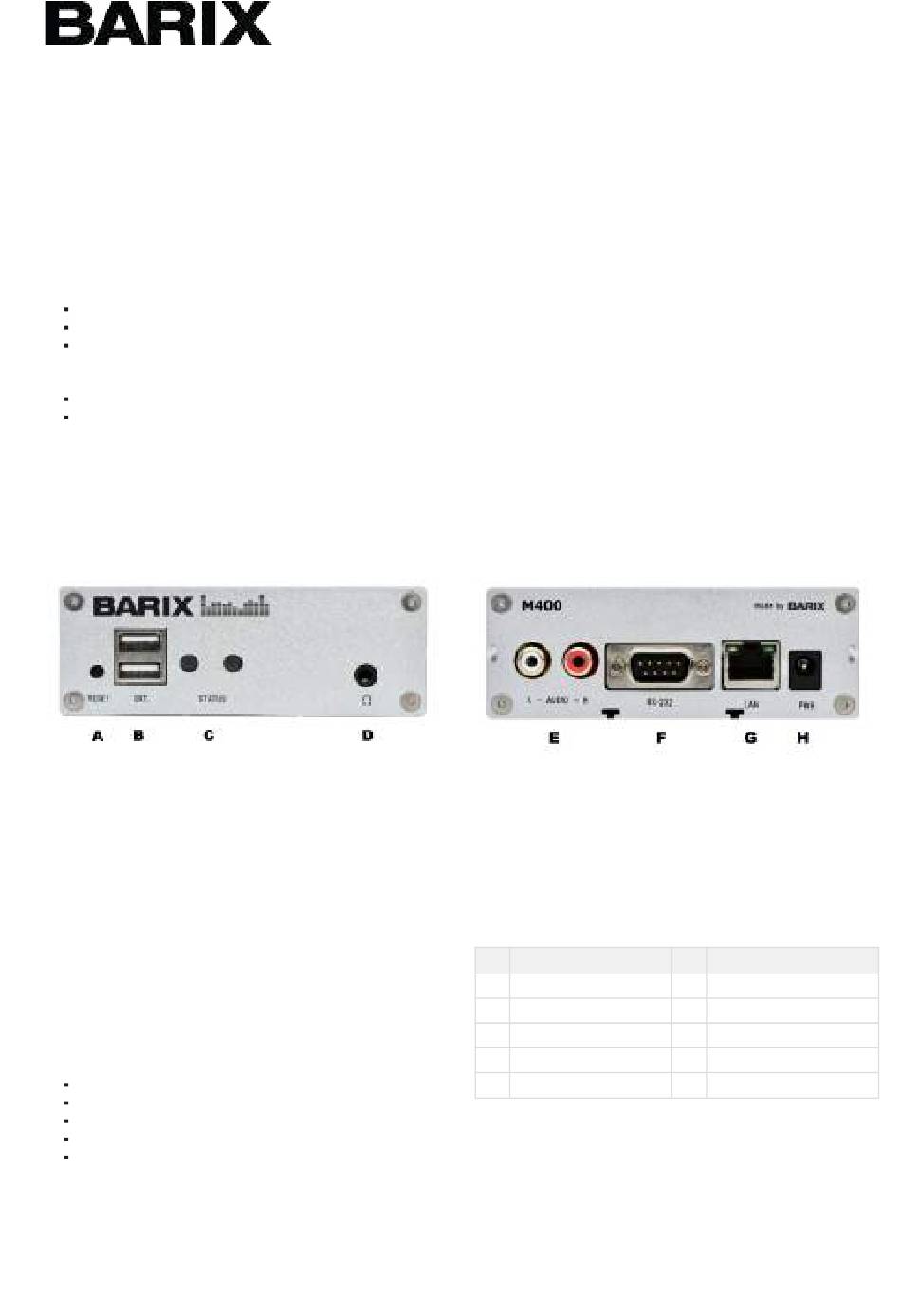

Front view
A - Reset Button
Press and hold the reset button until LED1 starts blinking (i.e.
for approx. 10 seconds). Release it and the device will be
rebooted and the factory default settings will be restored.
B - EXT. ports
USB 2.0 ports (for future purposes)
C - Status LEDs
LED1 shows system status:
Red – blinking fast: early startup
Red – solid: first stage boot loader
Red – blinking slow: system booting
Green – solid: system up and running
Green – blinking: restoring factory defaults
LED2 shows application status
BARIX AG | Ringstrasse 15 A | CH-8600 Dübendorf | T + 41 43 43322 11 | www.barix.com
Rear view
E - Line-in
RCA inputs for audio sources (mono inputs per unit - white: Left
Line input; red: Right Line input)
F - RS-232
Serial interface port with standard D-sub 9- pin male
connector. Used to insert metadata to the internal Icecast
server.
Pin Description
1 Not connected
2 Receive Data [RxD]
3 Transmit Data [TxD]
4 V+ 5V, 100mA max
5 Ground [GND]
G - LAN port
RJ45 connector for 10/100 Ethernet
H - Power Barrel
Pin Description
6 Not connected
7 Ready to Send [RTS]
8 Clear to Send [CTS]
9 Not connected
Page 1/ 5
