  • Page 1 Document version 01.02 Release date 29. June 2012 Hardware Rev. © 2012 Barix AG, all rights reserved. All information is subject to change without notice. All mentioned trademarks belong to their respective owners and are used for reference only.
  • Page 2: Table Of Contents

    Table of Contents Table of Contents..........iii Introduction............1 About this document ..............1 About the EXSTREAMER 1000 ..........1 Hardware features................1 Integrated Barix IP Audio Module..........1 Applications..................1 Available Firmware................1 Hardware.............2 Introduction..................2 Functional block diagram...............2 RS-232 Serial Interface..............2 RS-485 Serial Interface..............2 AES/EBU Interface................2 Analog Audio Interface..............2 IP Audio Module................2...
  • Page 3 Mechanical Information........7 Dimensions...................7 Weight.....................7 Mounting....................7 19” Rack Mounting................7 Space requirements................7 Thermal considerations..............7 Technical data...........8 CPU's, speed, memory..............8 Audio processor.................8 Analog audio input and A/D Conversion........8 Analog audio output and D/A Conversion......8 Analog audio input and AD Conversion 2......8 Digital audio ..................9 Serial Interfaces..................9 Network Interface................9 Peripheral I/O Interface..............9...
  • Page 5: Introduction

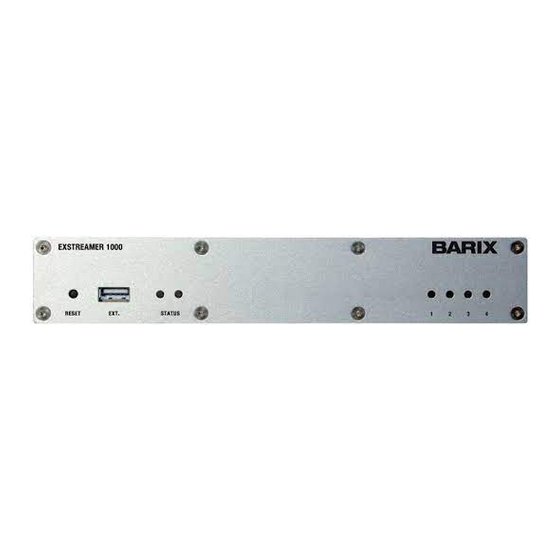

    About the The Barix EXSTREAMER 1000 is a versatile network device that can function either as an audio encoder or EXSTREAMER 1000 decoder for a variety of high quality audio applications.
  • Page 6: Hardware

    Modules analog stereo output signals are connected to J2 over balanced line drivers. IP Audio The Barix EXSTREAMER 1000 houses the Barix IP audio module “IPAM 100” which is used for decoding all Module sample rates. For the audio conversion at 32 and 48 kHz sampling rates an external, professional grade...
  • Page 7: Usb Memory Interface

    Audio Modules primary network input. This interface is an 10/100 Mbit, full / half duplex, auto negotiation Ethernet interface supporting TCP/IP, UDP, RTP, DHCP and SNMP protocols and providing Barix AutoIP and IPzator features. Peripheral I/O The connector J1 consist of two sockets, each with a detachable 6 pin screw terminal block plug.
  • Page 8: Connectors

    I/O 1&2 (6 pin screw terminal block plug) 1 2 3 4 5 6 Pin out Description Output Relay 3 Common Relay 3 & 4 Output Relay 4 Input 3 Ground (-) Input 3&4 Input 4 BARIX AG | 4/14...
  • Page 9: C) Connector J2 Pin Out

    Not connected Receive Data [RxD] Transmit Data [TxD] V+ 14.6V, 100mA max Ground [GND] Not connected Ready to Send [RTS] Clear to Send [CTS] Not connected F) Connector J5 LAN port 10/100 (RJ-45 socket) Standard Ethernet pinout BARIX AG | 5/14...
  • Page 10: G) Connector J6 Pin Out

    Reference * 485 A Shield *The reference pin is connected via 100 Ohm to the internal ground ! H) Connector J7 Power (4 pin screw terminal block plug) Pin out Description Vin - Vin+ 24..48VDC ±20% BARIX AG | 6/14...
  • Page 11 fixation. 19” Rack The Barix EXSTREAMER 1000 has a standard rack height unit (1 HU) and a half 19” rack width and features Mounting T-shaped slots which can be used for mechanical fixation.
  • Page 12: Technical Data

    Analog input impedance (Zin) kΩ Frequency response (-3dB) @ 48 kHz sample rate 22.9 Analog line input signal-to-noise ratio (SNR) -91.7 Dynamic Range 91.8 Input Total Harmonic Distortion (THD @ -3dBFS) 0.0045 Interchannel Isolation (Stereo Cross Talk) -92.1 BARIX AG | 8/14...
  • Page 13 The three D-sub 9 pin connectors stand out and increase the overall depth to 131mm / 5¼”. Weight 620 grams / 21.87 oz. (without any cables). Environmental 32 ~ 104° F / 0 ~ 40° C, < 70% relative humidity (non-condensing) conditions BARIX AG | 9/14...
  • Page 14 All rights reserved. All trademarks belong to their respective owners and are used for reference only. Barix and Barix IP Audio Module are trademarks of Barix AG, Switzerland and are registered in certain countries. Newest information about our devices is available via download from our website, www.barix.com.
