Danfoss APP S Series Disassembling And Assembling page 9

Instruction Disassembling and assembling APP S 2.0-3.5 / APP S 674 2.0-3.5

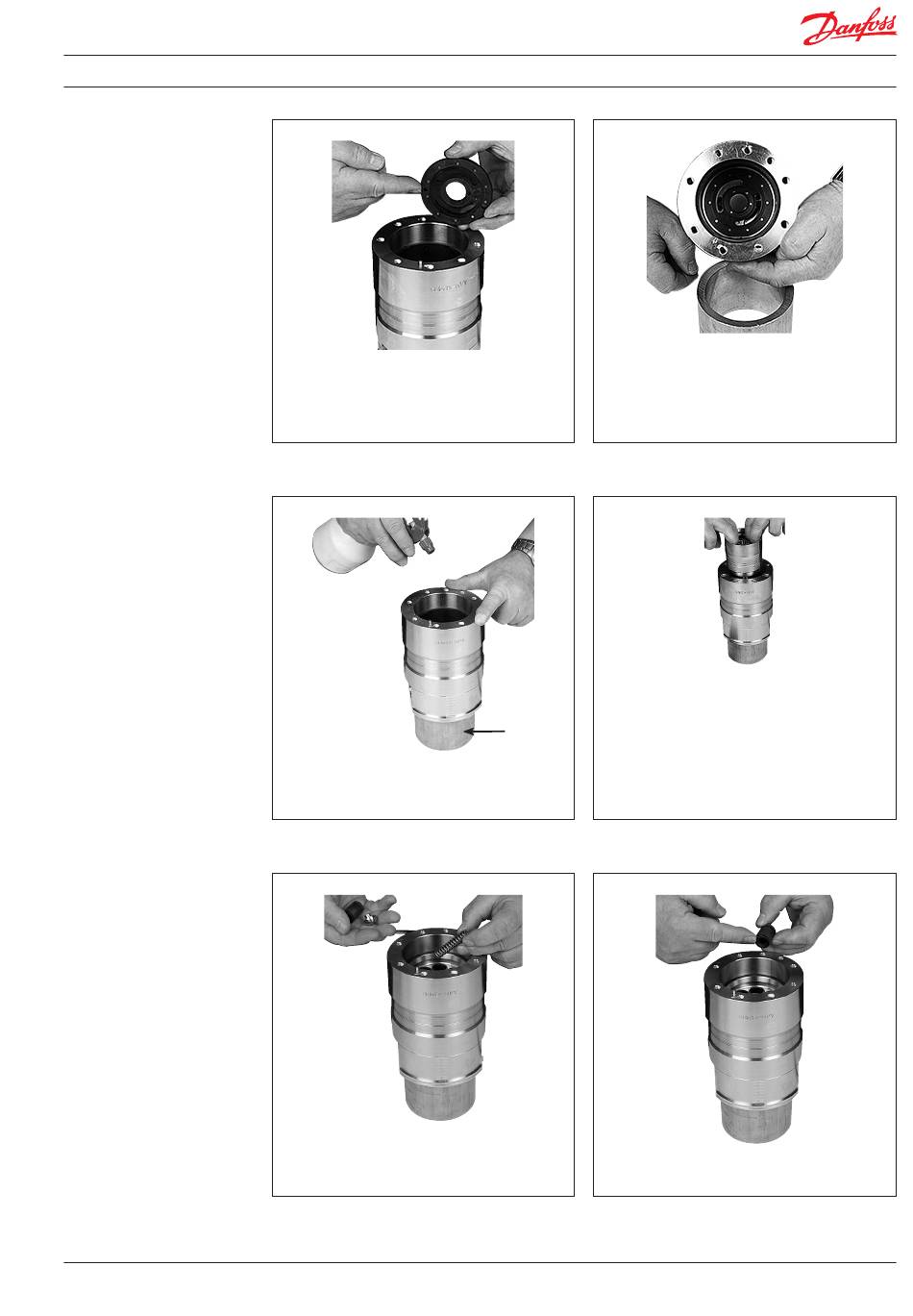

8. Position port plate by using the guide pin.
Do not use force for this operation.
10. Place the pump on a distance block. Make
sure, there is enough free space for the
shaft beneath the housing. Lubricate inside.
12. Place the spring in cylinder barrel.
180R9281 / 521B1275 / DKCFN.PI.013.C4.02 / 10.2015
9. Ensure port plate is fitted tightly against
the bottom.
Important: If valve plate is disassembled
from cylinder barrel, please see page 15
before continuing.
11. Carefully lower cylinder barrel into the
housing.
WARNING:
Distance
If cylinder barrel is dropped or lowered
block
too fast into housing, main bearing
and shaft bearing might be damaged.
Replacement can only be done at
Danfoss, Nordborg.
13. Lubricate and position the retainer guide.
9
