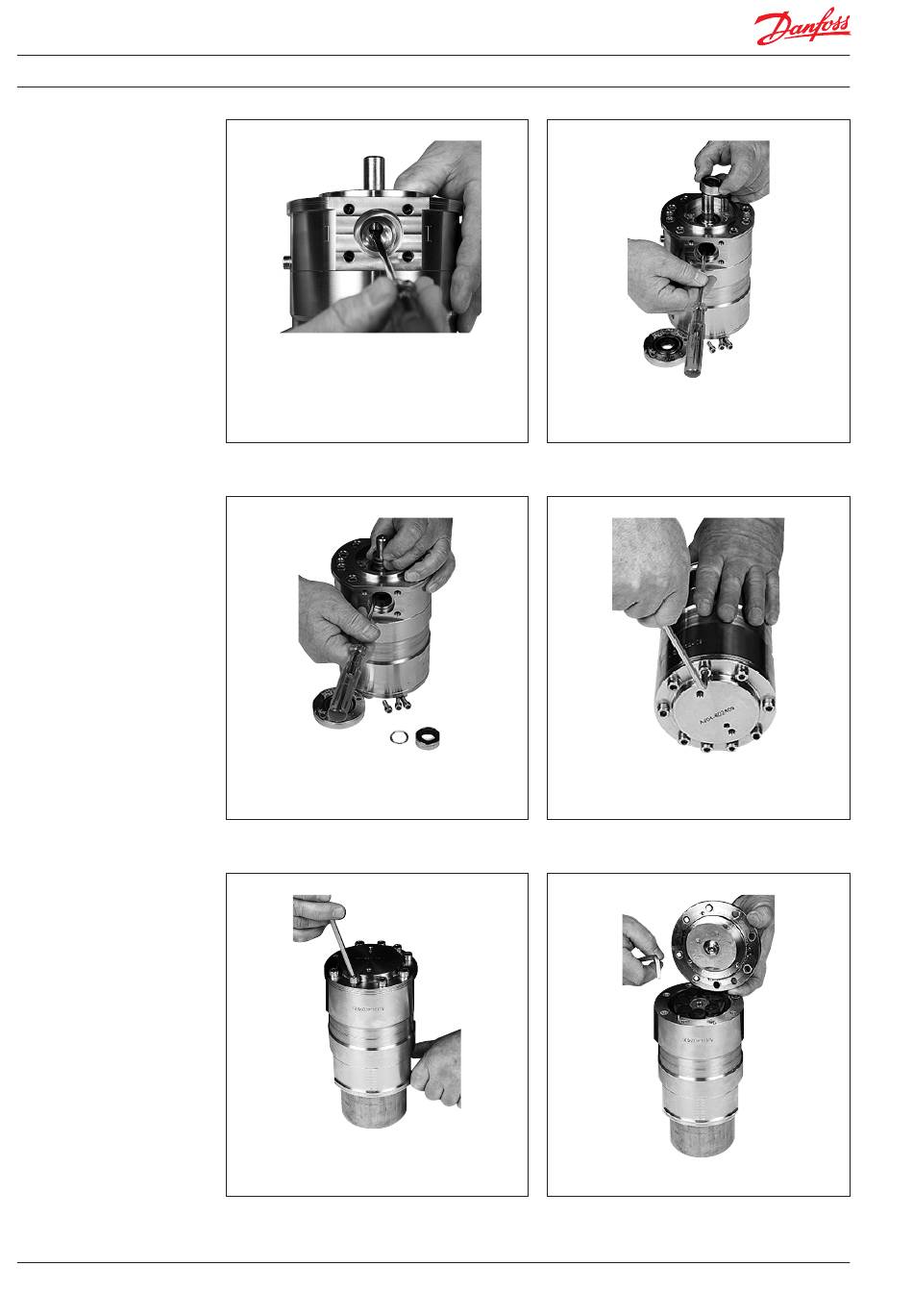

Danfoss APP S Series Disassembling And Assembling page 4

Instruction
4
Disassembling and assembling APP S 2.0-3.5 / APP S 674 2.0-3.5
7. Through the inlet port lever the shaft seal
with a screw driver between shaft seal and
spring. Use one hand to pull the shaft seal up.
WARNING:
Be careful not to scratch the shaft.
9. Carefully remove the spring by lifting it
with a screwdriver and one hand to pull
the spring up.
11. Place pump on a distance block. Make
sure there is enough free space for the
shaft beneath the housing. Remove all bolts.
180R9281 / 521B1275 / DKCFN.PI.013.C4.02 / 10.2015
8. Carefully remove the shaft seal and
distance ring.
10. Using a 8 mm allen key, unscrew all bolts
on the end flange.
12. Remove end flange.
