Danfoss APP S Series Disassembling And Assembling page 10

Instruction
10
Disassembling and assembling APP S 2.0-3.5 / APP S 674 2.0-3.5

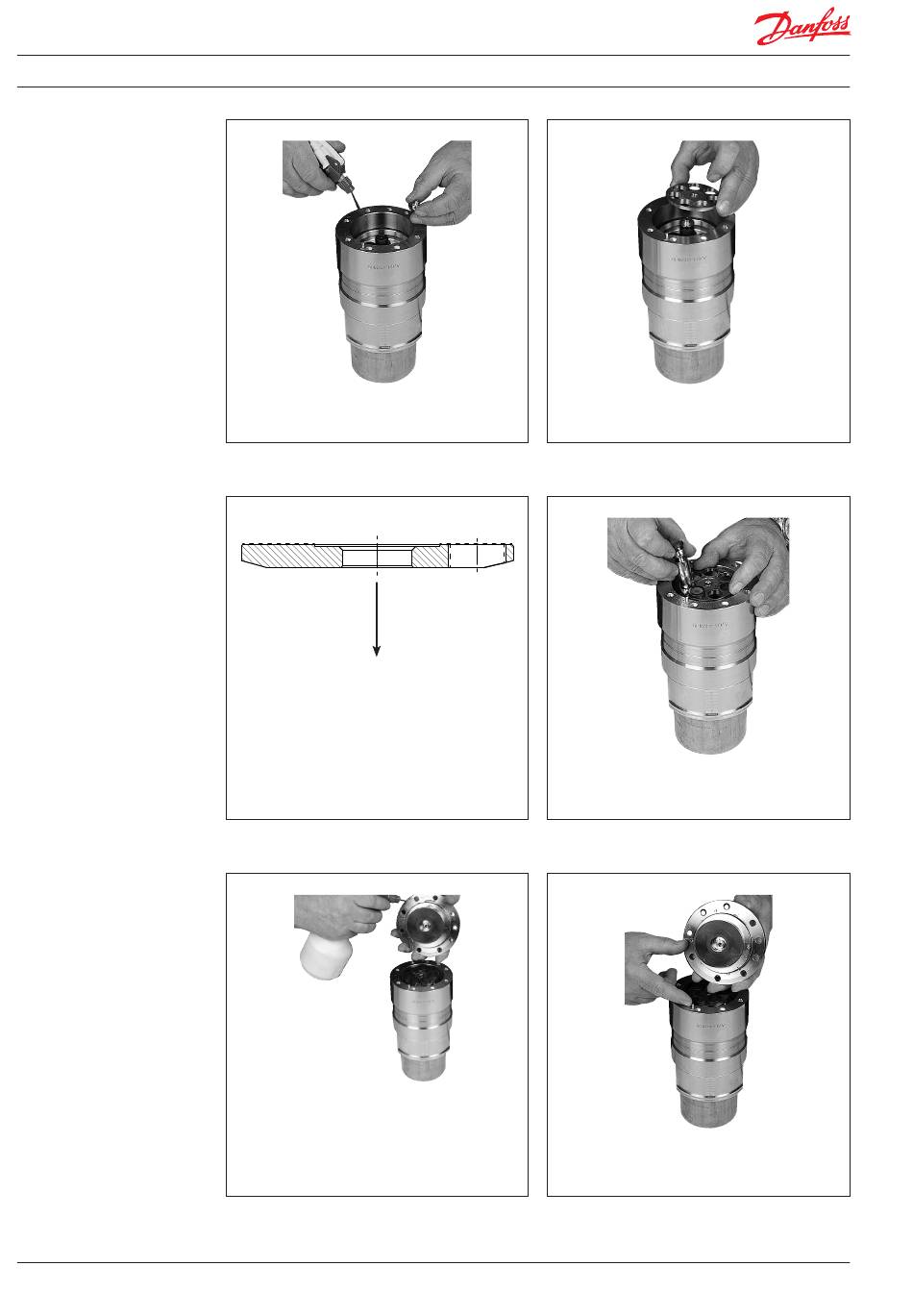

14. Lubricate retainer guide and position the
retainer ball.
16. Ensure the retainer plate is oriented
correctly.
18. Lubricate the piston shoes. Tilt retainer
plate for easier placement of swash plate.
If the swash plate has been disassembled
from end flange, see page 13 for
assembling of swash plate. Remember to
place the guide pin in the housing.
180R9281 / 521B1275 / DKCFN.PI.013.C4.02 / 10.2015
15. Position the retainer plate.
17. Lubricate and position the pistons in the
retainer plate and cylinder barrel.
19. Change and lubricate O-ring in the end
flange. Position end flange aligning pin
hole over the guide pin.
