Disassembling And Assembling Of The Swash Plate - Danfoss APP S Series Disassembling And Assembling

Instruction
3. Disassembling and
assembling of the swash
plate

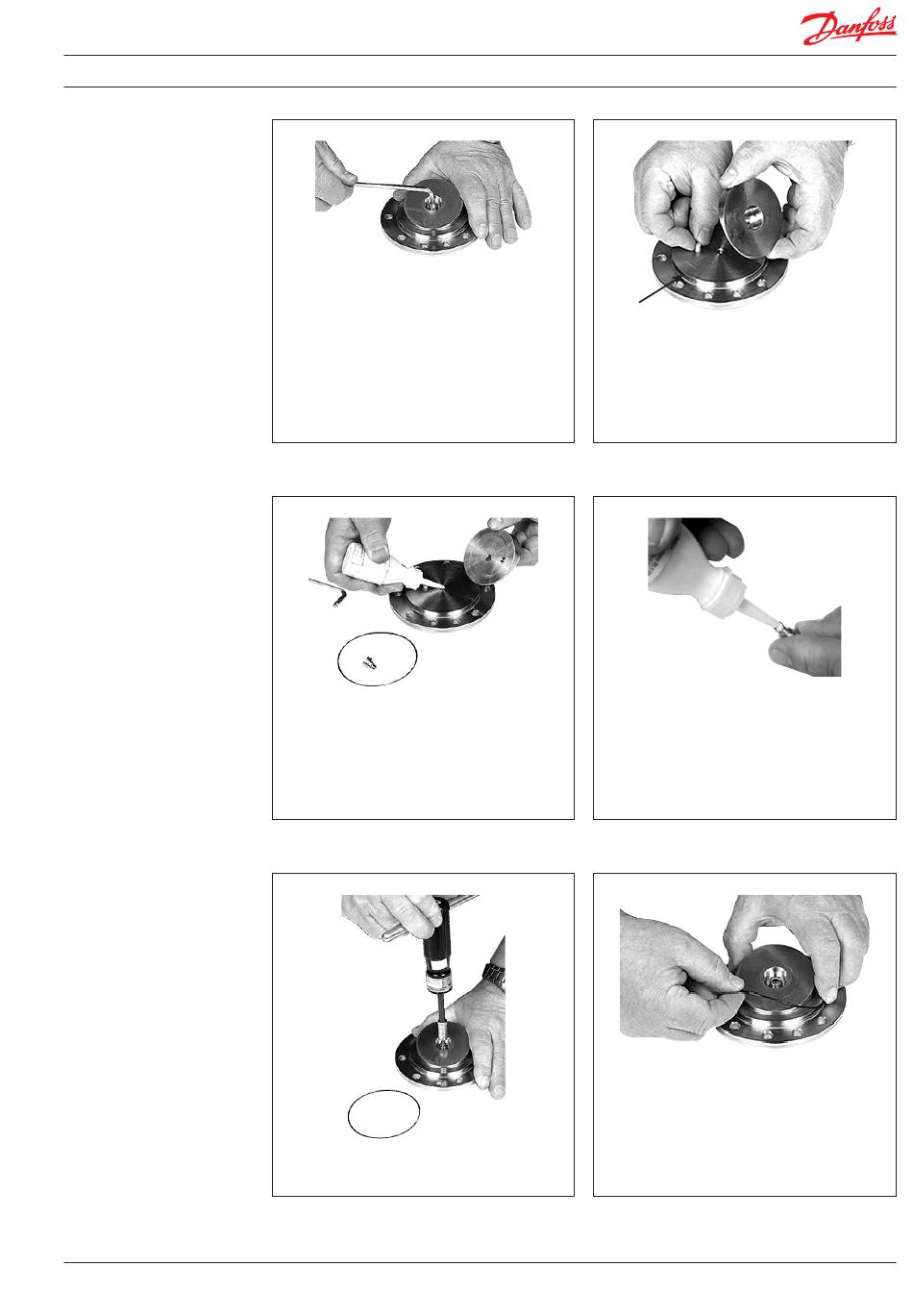

Disassembling and assembling APP S 2.0-3.5 / APP S 674 2.0-3.5
1. Unscrew centre bolt from swash plate.
3. Place guide pin and carefully align swash
plate over guide pins.
5. Position the centre bolt and tighten to
12 Nm ± 1 Nm.
180R9281 / 521B1275 / DKCFN.PI.013.C4.02 / 10.2015
O-ring
2. Remove swash plate, guide pin and O-ring.
4. Lubricate centre bolt thread with a PTFE
lubricant type.
6. Finally check the surface on the swash
plate for any marks or foreign particles
and place new O-ring.
13
