Disassembling and assembling APP S 2.0-3.5 / APP S 674 2.0-3.5

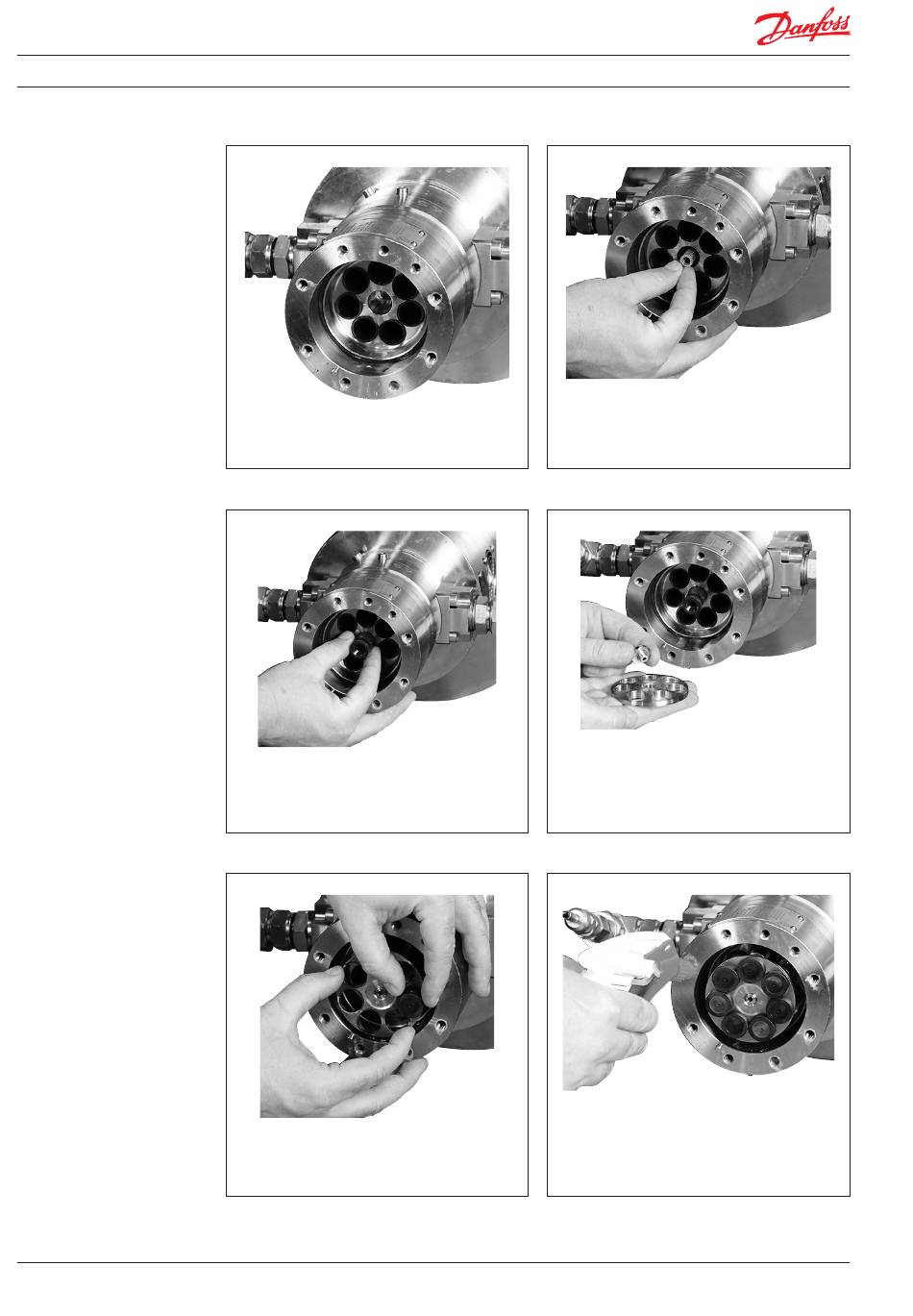

7.2 Assembling

1. Ensure the liner and the end of cylinder
barrel are wetted.
3. Place the guide.
5. Place the retainer plate and hold it with
one hand. Insert the pistons one by one
with the other hand.
180R9281 / 521B1275 / DKCFN.PI.013.C4.02 / 10.2015
2. Place the spring.
4. Place the ball on the retainer plate.
WARNING!
Ensure right assembling and placement of
the retainer plate. See item 16, page 10.
6. Wet the pistons.
