Instruction
5. Disassembling and
assembling of the
swash plate
10
Disassembling and assembling APP 21-43
WARNING:
Make sure that the surface on the swash plate
does not get any marks.

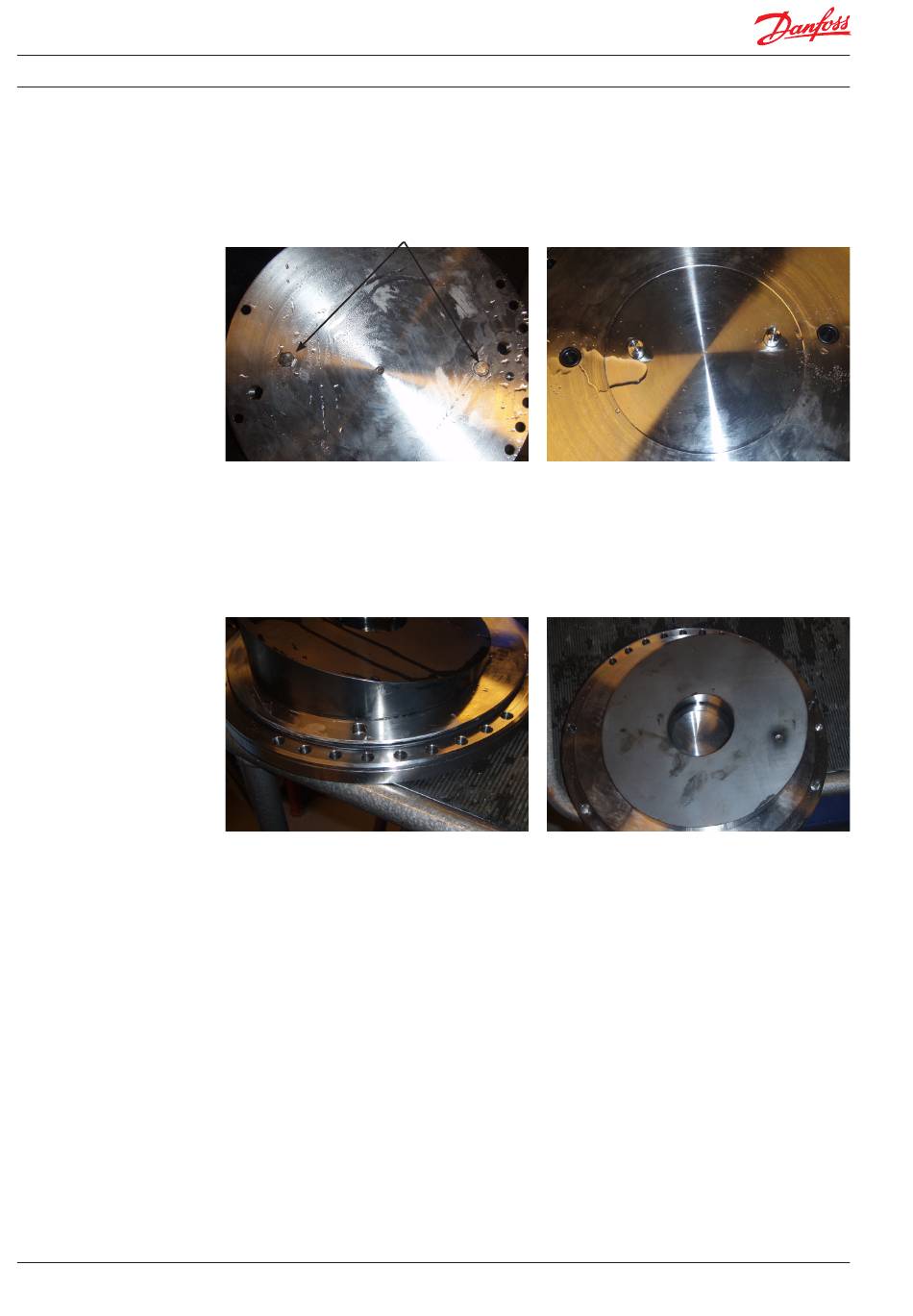

1. Place the swash plate upside down. Remove
the 2 bolts holding the swash plate. Remove
the mounting flange from the swash plate.
3. Change the O-ring on the mounting flange.
5. Mount the assembled part on the pump.
180R9121 / 521B1018 / DKCFN.PI.013.A4.02 / 10.2013
2. Check that the O-ring and pin are in good
condition. (Provided with sealing set).
4. Mount the swash plate on the 2 guide pins.
Carefully by hand tilt the unit to horizontal
position and mount the 2 bolts which hold
the swash plate. Tighten the bolts with a
torque of 30 Nm +/-2 Nm. Finally check the
surface on the swash plate for any marks or
foreign particles.
