Eaton LINX Linear Worksurface Manual

technical furniture

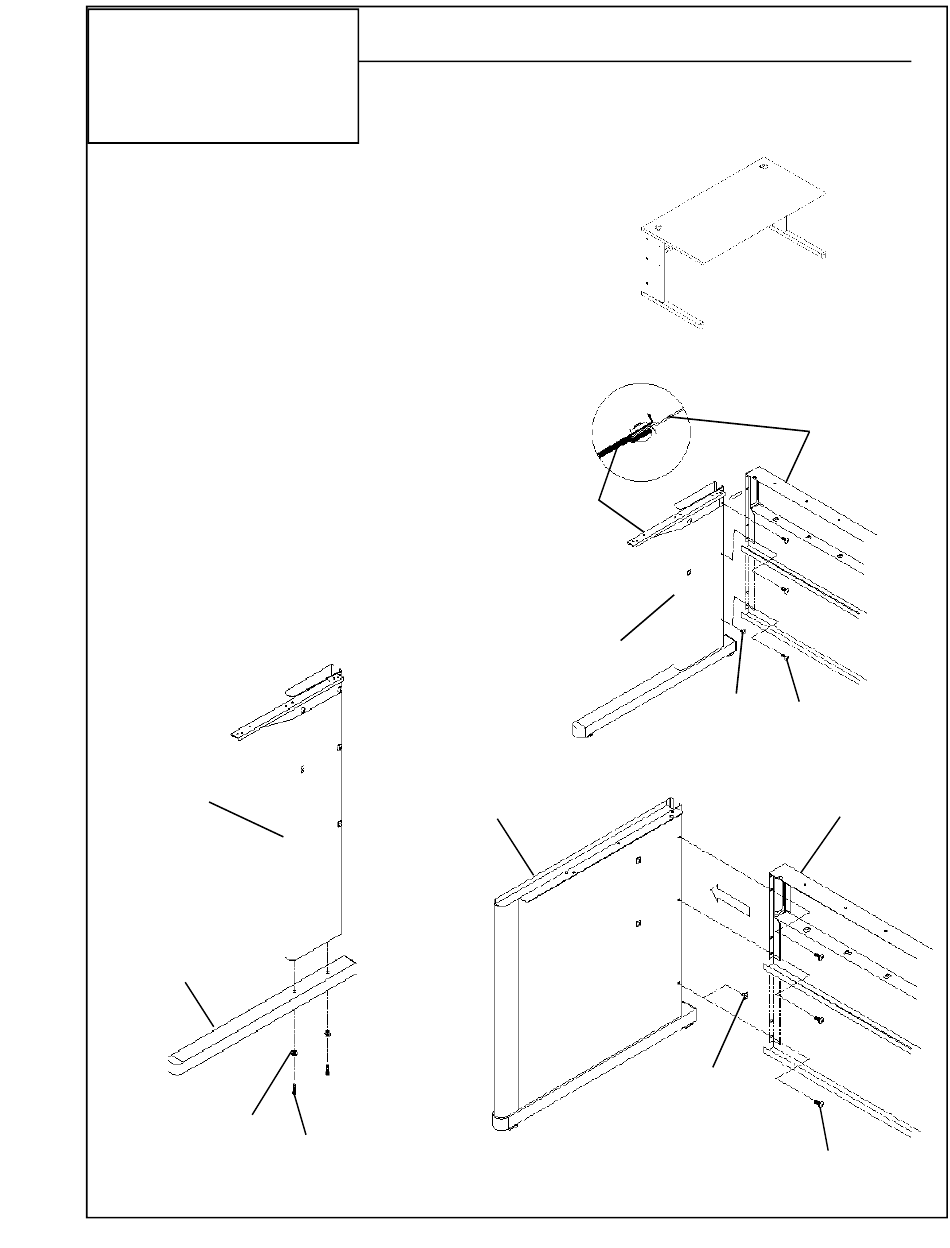

TYPICAL LEG AND MODESTY PANEL ASSEMBLY

Tools Required
-1/4" Hex key (provided)
-Phillips head screwdriver
NOTE: Due to packaging restrictions, the foot is not
factory assembled to the 40" leg.
1. Attach a Foot to each 40" Leg using two 5/16"-18 x
1-1/2" socket head cap screws and two lock washers.
See Figure 1.
2. Attach a Left and Right Leg Assembly to their respec-
tive ends of the Modesty Panel using the 1/4"-20 x
3/4" Phillips pan head machine screws provided.
Tighten securely. See Figure 2 and Figure 2a.
NOTE: Depending on the height of the Modesty Panel
being installed, it may be necessary to remove
the plastic hole plug at the bottom of each leg.
40" Leg
Foot
Lock washers
Figure 1
84567
L i n e a r
W o r k s u r f a c e s
Full depth leg
assembly
5/16"-18 x 1-1/2" Socket head
cap screws
Fully Assembled Worksurface
Top support
Leg assembly
Plastic hole
plug
A-1
12" or 26" high
Modesty panel
Plastic hole
1/4"-20 x 3/4"Phillips
plug
pan head machine screws
Figure 2
12" or 26" high
Modesty panel
1/4"-20 x 3/4"Phillips
pan head machine screws
Figure 2a
