Eaton Optimedia Periodical Shelf Instruction Sheet

Instruction Sheet
IL211008EN
Optimedia®
Periodical Shelf
Please read these instructions carefully and follow
the installation steps in sequence.
The periodical shelf must be located a specific
distance above the nearest component or media
below it. The periodical shelf may be used in
conjunction with a stationary shelf.

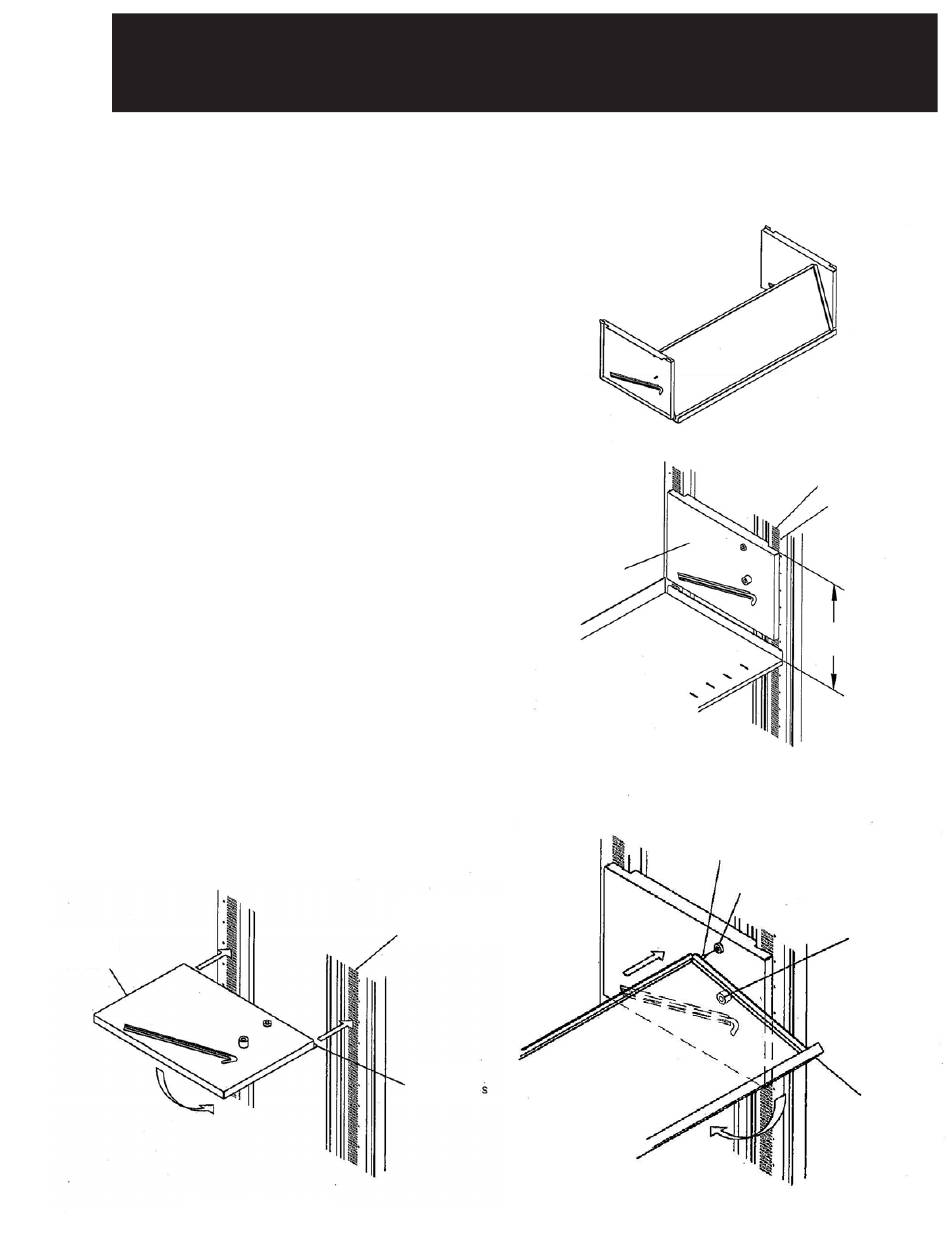

1. Locate the slots in the uprights for mounting the
two end brackets (see Figure 1). Make sure all
the slots are at the same level. Use the counting
holes in the uprights as a guide when counting
slots for spacing. Note: all the slots are
the counting holes are 2" apart.
2. Starting at either side of the cabinet, hold an end
bracket horizontally and insert its two offset tabs
into the slots in the uprights (see Figure 2). Then
let it pivot downward and hang vertically. Install the
other end bracket the same way.
3. Next install the periodical shelf (see Figure 3).
Hold the shelf horizontally between the two end
brackets, above the bumpers. Retract the L.H.
pivot pin on the shelf and insert the R.H. pivot pin
into the plastic busing in the R.H. end bracket.
Then release the LH. pivot pin into the plastic
bushing in the L.H. end bracket. Rotate the front of
the shelf down until it rests against the bumpers.
R.H. End
bracket
Figure 2
Effective May 2018
Supersedes 66720 12/93
/ " apart;
1
4
R.H. End
Slots in the
uprights
Offset tabs
Periodical shelf
bracket
Figure 1
R.H. pivot
pin
Plastic
Bushing
Figure 3
Slots in the
uprights
Counting holes
12.75"
(51 slots)
Top of shelf
or nearest
component or
media
Bumper
Periodical
shelf
