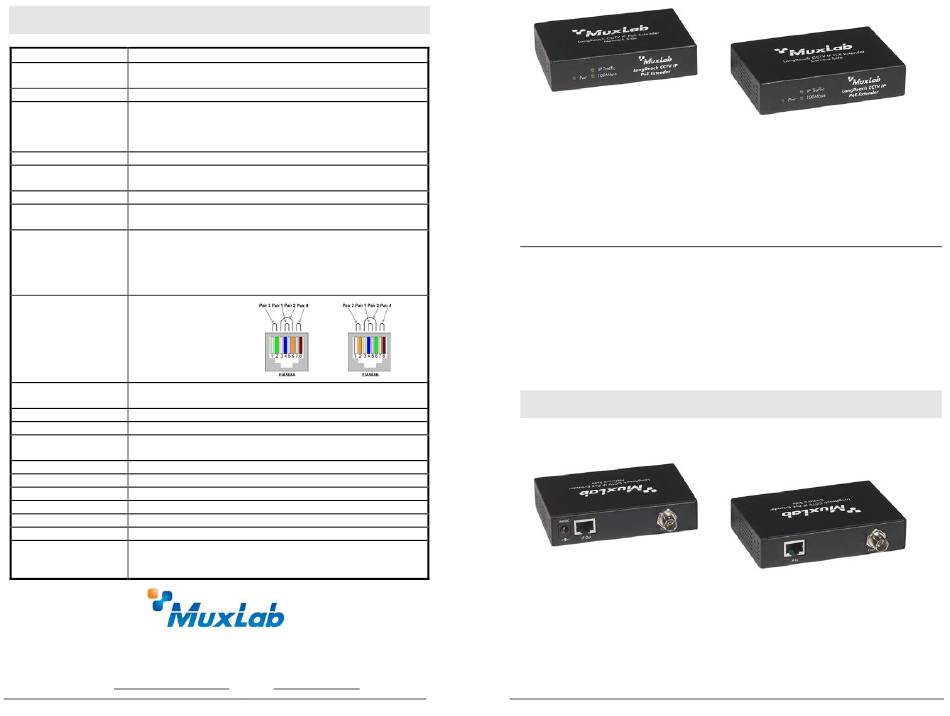

MuxLab 500114 Quick Installation Manual

Specifications

Environment PoE CCTV IP
Devices PoE CCTV IP cameras with a 10/100Mb/s Ethernet port, using up to
15.4 Watts.
Transmission Transparent to the user
Standard supported Ethernet side:
IEEE 802.3 10BaseT,
IEEE 802.3U 100Base-TX
IEEE 802.3af compatible PoE (on camera side only)
PoE Power Class 3
Connectors One (1) BNC 75 Ohms.
One (1) RJ45S for Cat 5e/6 unshielded or shielded twisted pair.
LED Indicators Power, IP Traffic, 100MBps
Throughput Unidirectional Mode: 100 Mbps downstream and 1 Mbps upstream
Bidirectional Mode: 60 Mbps downstream and upstream
RG59/RG6:
Maximum Distance
UTP Cat 5e/6:
Note: When installed in an electrically noisy environment, an STP
cable must be used. Also, cross-connection reduces the effective
distance depending on the grade of twisted cable used.
RJ45 Pin RJ45 Link
Configuration Pin 1 (R) Pin 2 (T)
Pin 3 (R) Pin 6 (T)
Reverse Polarity
Pin 4 (R) Pin 5 (T)
Sensitive. Use EIA/TIA
Pin 7 (R) Pin 8 (T)
568A or 586B straight-
through wiring.
UTP/STP: One (1) Cat 5e/6 or better twisted pair cables required
Cable
RG59/RG6: 75 Ohms (avoid CCS cable)
Power Supply One (1) 110-240V/24VDC 2.7A.
Power Consumption Network Side: 1.82 Watt
Temperature Operating: 0° to 40°C
Humidity: Up to 95% non-condensing
Enclosure Metal
Accessories Wall-mount brackets included
Dimensions 4.37" x 2.95" x 0.99" (110 x 75 x 25 mm)
Weight 2 lb (0.91 kg)
Regulatory: FCC, CE, RoHS
Compliance
Warranty 2 years
Order Information 500114-US CCTV IP PoE Extender Kit, 1Km, US
500114-UK CCTV IP PoE Extender Kit, 1Km, UK
500114-EU CCTV IP PoE Extender Kit, 1Km, EURO
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc.
Up to 3281 ft (1000m) @ 100Mbps
Up to 330 ft (100 m)
Camera Side: 1.73 Watt
Storage: -20° to 85°C
Flammability: 94V0
Fax: (514) 905-0589
URL: www.muxlab.com
94-000762-A SE-000762-A
LongReach CCTV IP PoE
Extender Kit, 1Km
Quick Installation Guide

Overview

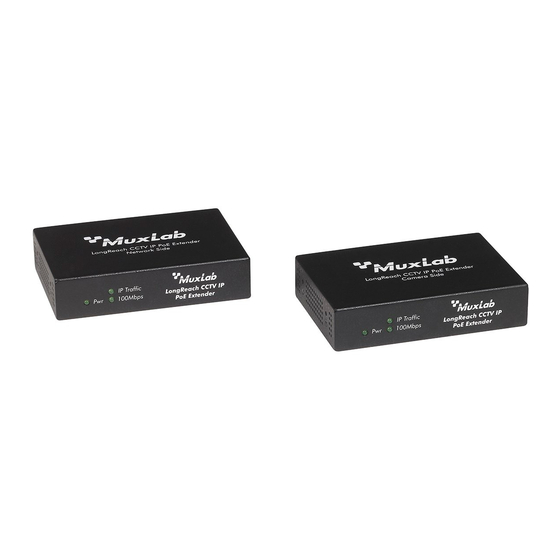

The LongReach CCTV IP PoE Extender Kit, 1Km (500114) allows one IP camera (15.4
Watts) to be connected up to 3281 ft (1000m) via a single 75-ohm coax cable in a point-
to-point configuration. The maximum distance depends on the grade and quality of
coaxial cable.

Applications

CCTV IP surveillance

Installation

1. Identify the connectors on the Extenders as indicated on the product labels.
© MuxLab Inc. 2014
500114
