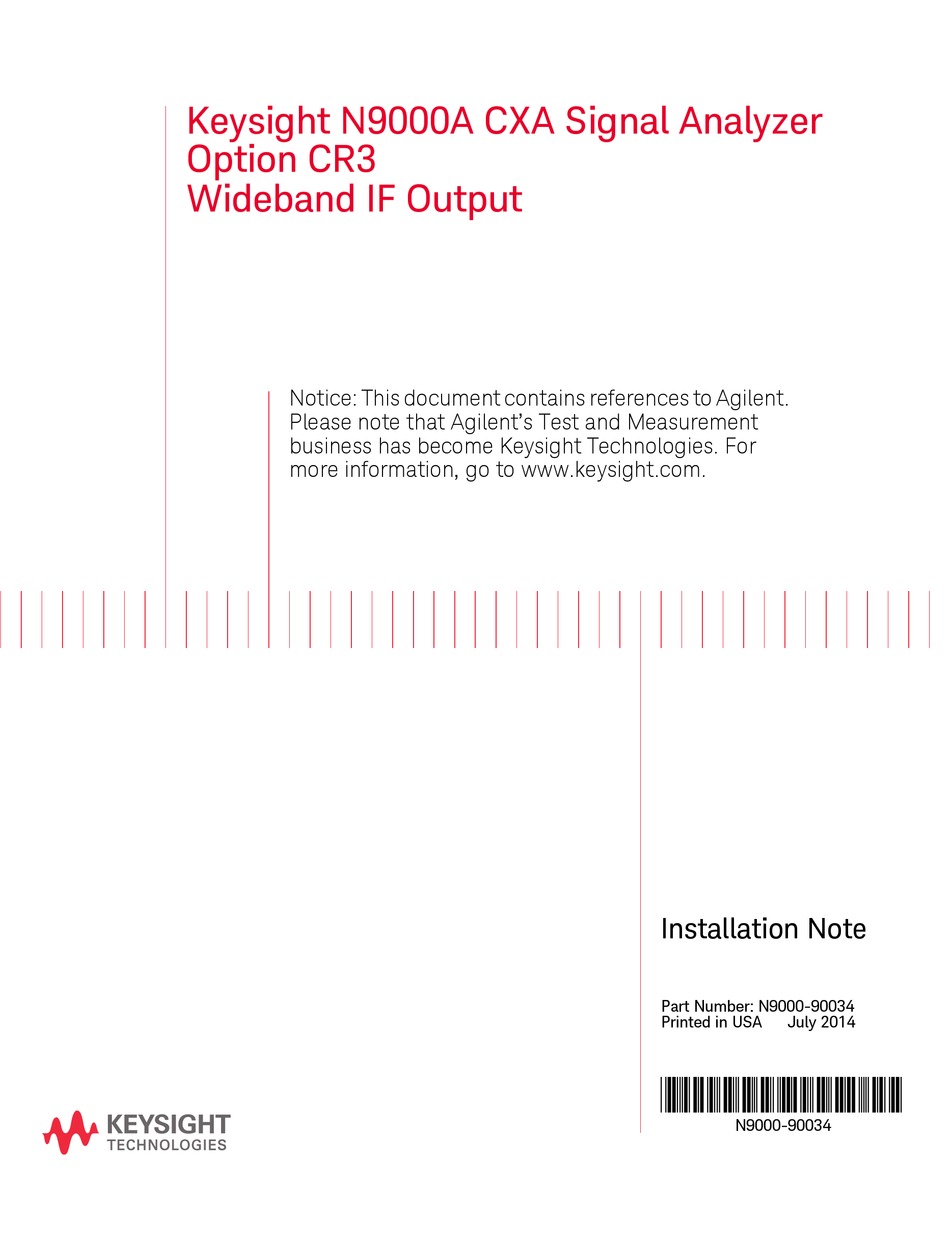

Keysight N9000A CXA Signal Analyzer
Option CR3
Wideband IF Output
Notice: This document contains references to Agilent.
Please note that Agilent's Test and Measurement
business has become Keysight Technologies. For
more information, go to www.keysight.com.
Installation Note
Part Number: N9000-90034
Printed in USA
July 2014
*N9000-90034*
N9000-90034
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Keysight Technologies N9000A
Summary of Contents for Keysight Technologies N9000A
- Page 1 Keysight N9000A CXA Signal Analyzer Option CR3 Wideband IF Output Notice: This document contains references to Agilent. Please note that Agilent’s Test and Measurement business has become Keysight Technologies. For more information, go to www.keysight.com. Installation Note Part Number: N9000-90034...
- Page 2 The information contained in this document is subject to change without notice. Keysight Technologies makes no warranty of any kind with regard to this material, including but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Keysight Technologies shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.
- Page 3 Overview This kit contains all of the instructions required to install option CR3 wideband IF output on an Agilent N9000A CXA signal analyzer. The procedure outlined in this document will guide you through the following steps, which will need to be followed closely, and performed in the order defined: 1.
-
Page 4: Installation Procedure
Option CR3 - Wideband IF Output Installation Kit Installation Procedure This installation note is part of an upgrade kit that provides all of the parts and instructions needed to install the AUX IF assembly in an Agilent N9000A CXA signal analyzer. Contents Quantity... - Page 5 Option CR3 - Wideband IF Output Installation Kit 1. Pre-Upgrade Status Check Before performing this upgrade you will need to know the status of the instrument being upgraded in a couple of areas. Pre-Existing Issues and Error Messages Power the instrument on and verify that the instrument will not only boot up, but that the signal analyzer application software will load properly.
-
Page 6: Hardware Installation
Option CR3 - Wideband IF Output Installation Kit 2. Hardware Installation CAUTION Electrostatic discharge (ESD) can damage or destroy electronic components. All work on electronic assemblies should be performed at a static-safe workstation. Refer to the documentation that pertains to your instrument for information about static-safe workstations and ordering static-safe accessories. - Page 7 Option CR3 - Wideband IF Output Installation Kit b. To Remove the reference bracket (2) use the T-10 driver to remove the six screws (5) (including two at the rear panel) attaching the reference bracket to the instrument and the four screws (4) attaching the top brace to the reference bracket.
- Page 8 Option CR3 - Wideband IF Output Installation Kit 4. Refer to Figure 3 to remove the rear panel. Figure 3 Rear Panel Removal a. Remove the twenty screws (2) attaching the rear panel (1) to the chassis and to the reference bracket.
- Page 9 Option CR3 - Wideband IF Output Installation Kit 5. Refer to Figure 4 to remove the DIF board. Figure 4 DIF Board Removal a. Remove cable W4 and W6 from the bottom of the DIF board. b. The DIF board can be removed from the chassis by pulling straight out the back. Installation Note N9000-90034...
- Page 10 Option CR3 - Wideband IF Output Installation Kit 6. Install the AUX IF assembly on the DIF board. a. Refer to Figure 5, locate the AUX IF assembly and the ribbon cable in the upgrade kit and install it on the upper side of the DIF board. Connect the E4410-60162 ribbon cable from DIF board to AUX IF assembly.
- Page 11 Option CR3 - Wideband IF Output Installation Kit c. Locate the two cable assembly N9000-20108 and N9000-20132 in the upgrade kit. Connect N9000-20108 from AUX IF Assembly J2 connector (Figure 6) to RF Board J336 connector (Figure 7). Connect N9000-20132 from AUX IF Assembly J3 connector to AUX IF Out connector (W5) of the rear panel (Figure 3).
-
Page 12: Update The Instrument Software
Option CR3 - Wideband IF Output Installation Kit 3. Update the Instrument Software 1. Loading the latest instrument software is required to assure all FPGAs and drivers located on both the newly installed hardware and on the case instrument are synchronized. Therefore, even if the instrument contains the latest revision of software, you must re-install the software to assure proper operation. -
Page 13: Installation Verification
This would include verifying that there are not error messages displayed in the status bar of the application window. 2. Operate on N9000A signal analyzer. a. Press [Input/Output] > {RF Calibrator} > {50 MHz} b. - Page 14 Option CR3 - Wideband IF Output Installation Kit Installation Note N9000-90034...
