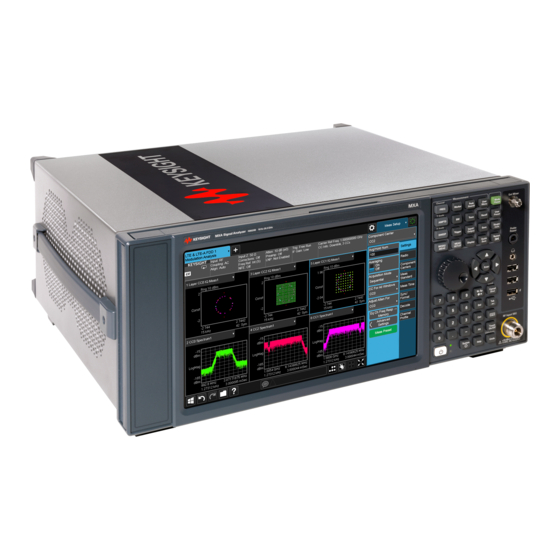

- Page 1 Keysight Technologies N9020B MXA Signal Analyzer N9010B EXA Signal Analyzer N9048B PXE EMI Receiver Option CR3, Second IF Out Option CRP, Arbitrary IF Out Installation Note...
- Page 2 The information contained in this document is subject to change without notice. Keysight Technologies makes no warranty of any kind with regard to this material, including but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
- Page 3 Option CR3 or CRP Installation Kit Option CR3 or CRP Installation Kit Products Affected: N9020B MXA Signal Analyzer N9010B EXA Signal Analyzer N9048B PXE EMI Receiver Serial Numbers: Options To Be Performed By: (X) Keysight Service Center (X) Personnel Qualified by Keysight...
- Page 4 Option CR3 or CRP Installation Kit Introduction This kit contains all of the instructions required to install Option CR3 or CRP on a Keysight MXA or EXA signal analyzer or PXE EMI receiver that already has the necessary hardware installed. If the necessary hardware is not already installed, a different upgrade kit should be used.
-
Page 5: Installation Procedure Over Usb
Option CR3 or CRP Installation Kit Contents Keysight Part Quantity Description Number Installation Note This note Option Upgrade Entitlement Certificate 5964-5178 Tools Required for Installation — Personal computer with internet access and USB port — USB storage device with > 2 GB free memory Tools Required for Manual Operation Verification —... - Page 6 Option CR3 or CRP Installation Kit Figure 1 USB Storage Device Configuration Menu 7. The signal analyzer will automatically consume the License File. (This may take a few minutes) When the License File is consumed the Keysight License Manager will display a “Successful License Installation”...
- Page 7 Option CR3 or CRP Installation Kit Functional Check: Within one year of the initial calibration date of the instrument this option is fully calibrated with no further adjustment or verification testing. To ensure that this newly installed option has been enabled correctly the following functional check is recommended.
- Page 8 Option CR3 or CRP Installation Kit Manually verify operation Option CR3, Second IF Output 1. Preset X-Series analyzer. Assure mode is Spectrum Analyzer. 2. Display the 50 MHz calibrator signal. Press Input/Output, RF Calibrator, 50 MHz. Press FREQ, key in 50 MHz. Tap Span, Zero Span. You should see a flat line across the display at -25 dBm. 3.
- Page 9 For assistance, contact your nearest Keysight Technologies Sales and Service Office. To find your local Keysight office access the following URL, or if in the United States, call the following telephone number: http://www.keysight.com/find/assist...
- Page 10 This information is subject to change without notice. © Keysight Technologies 2016-2018 Edition 1, October 2018 N9020-90258 www.keysight.com...
