Section 3 Disassembly Instruction - Icom IC-F5121D Service Manual

SECTION 3.

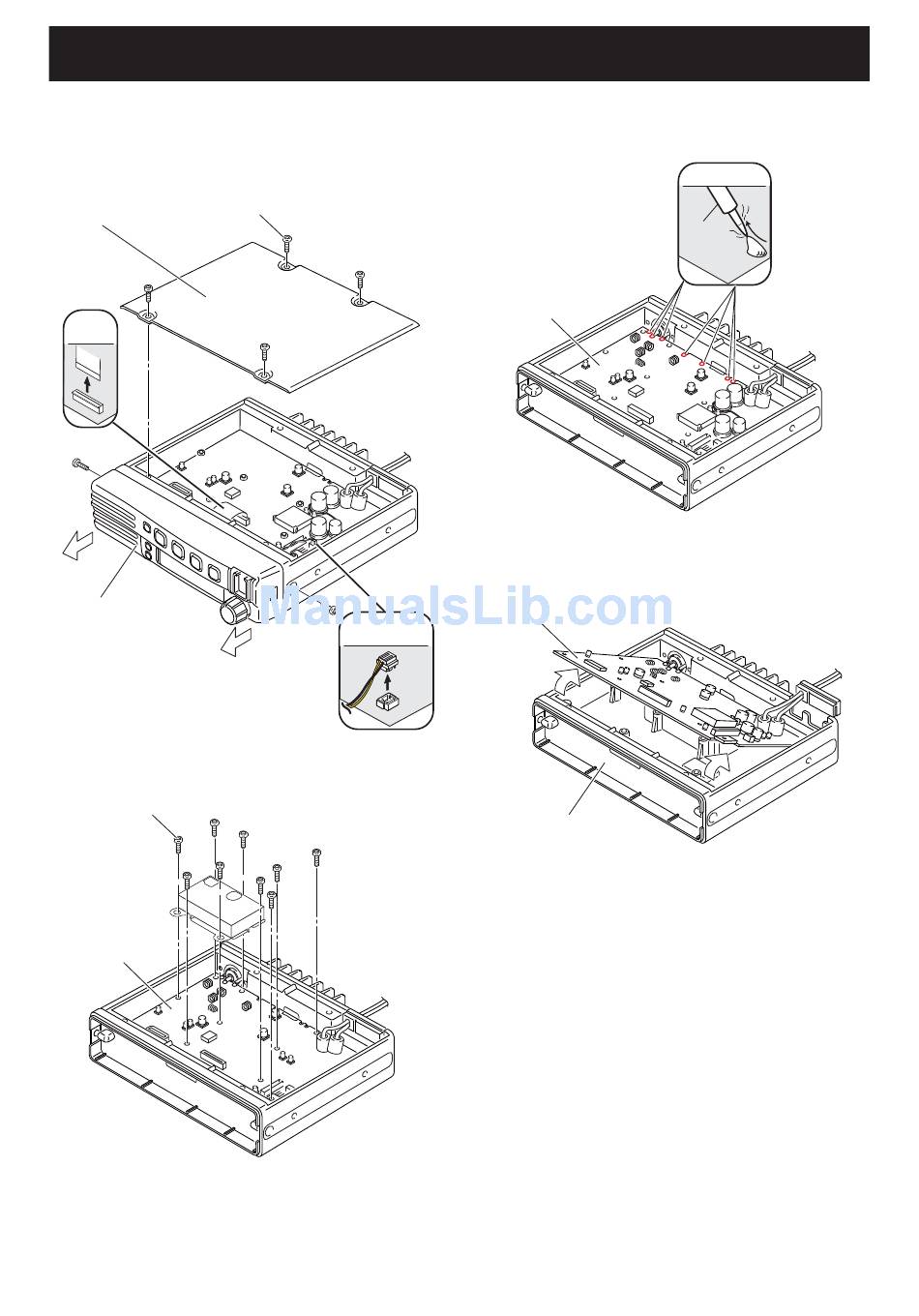

1) Remove 4 screws from the bottom cover, and then
remove it.
2) Disconnect the fl at cable and speaker cable.
3) Remove 2 screws from the both sides of the front panel,
and then remove it in the direction of the arrow.
BOTTOM COVER
FLAT
CABLE
FRONT PANEL
4) Remove 9 screws from the MAIN UNIT.
SCREW×9
MAIN UNIT
DISASSEMBLY INSTRUCTION
SCREW×4
SPEAKER
CABLE
5) Unsolder total of 7 points; 3 points at the antenna
connector, 4 points at the PA module.
MAIN UNIT
6) Remove the MAIN UNIT from the CHASSIS in the
direction of the arrow.
MAIN UNIT
CHASSIS
3 - 1
UNSOLDER
Solder
remover
