Switch Mounting
Installing the Switch on the Wall

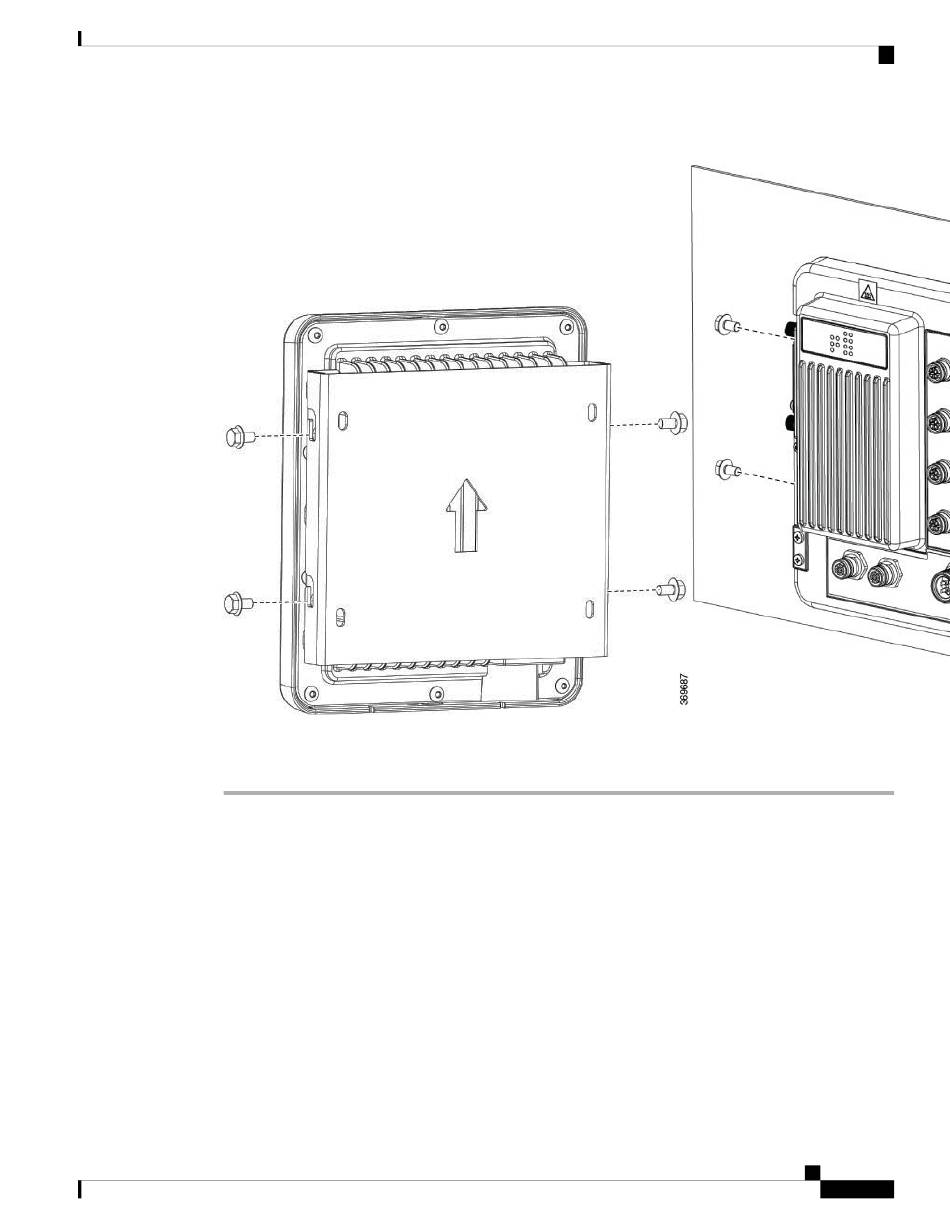

Figure 2: Attaching the Switch to the Mounting Bracket
Step 3
To remove the switch, loosen the 4 mounting screws and slide the switch up and forward, out of the mounting
bracket. Then the bracket itself can be unscrewed from the wall, if necessary.
What to do next
After the switch is mounted on the wall or panel, connect the power and alarm wires, as described in the
"Connecting Alarm Circuits" section on page -12
.
Switch Mounting
3
