Installing the Switch on the Wall

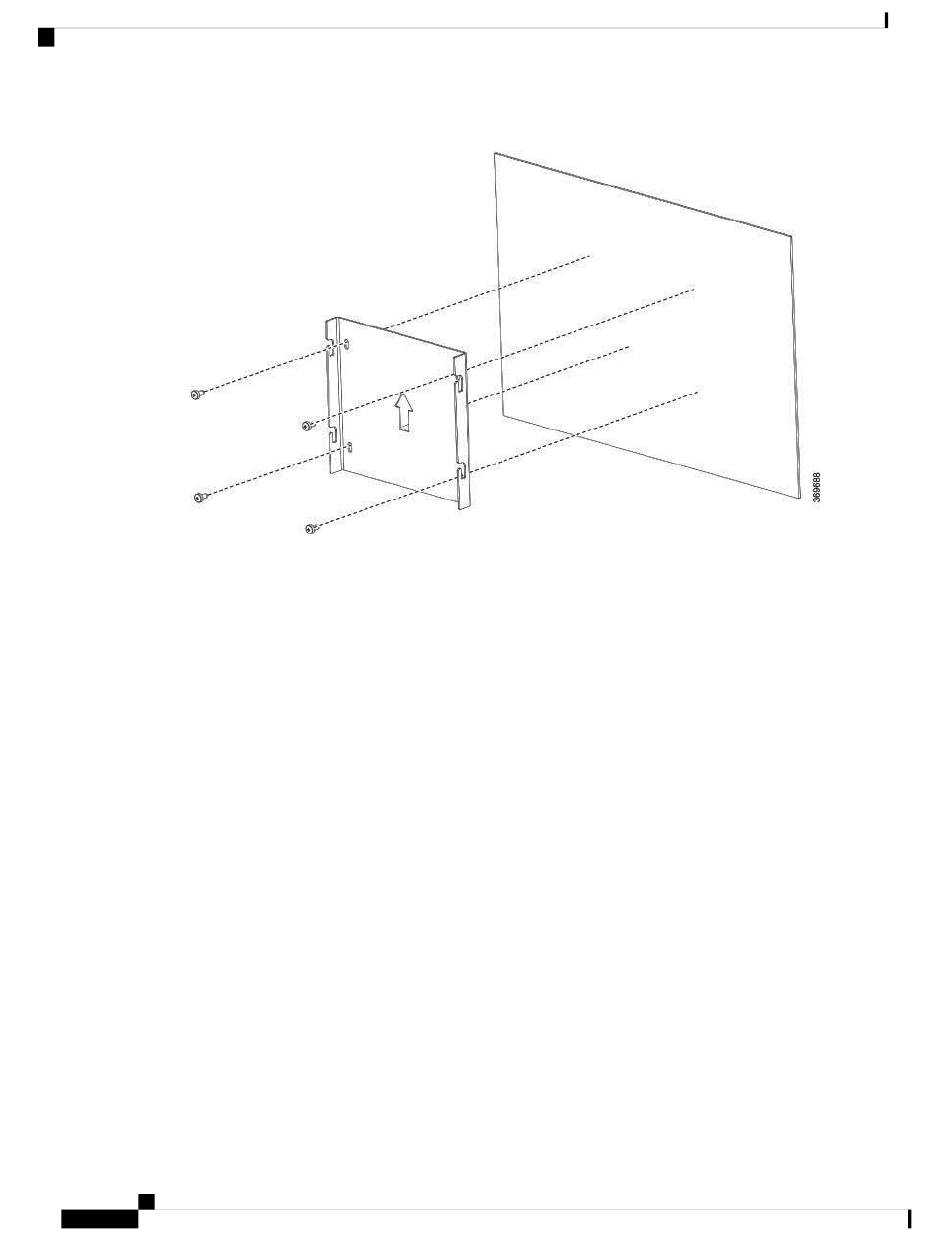

Figure 1: Mounting Wall Bracket to Wall

Note

Step 2

Loosly attach the 4 mounting screws to the switch and slide it into the bracket and down. See the following
figure.
Switch Mounting
2
When attaching the bracket to the wall or pannel, ensure that the screws engage a stud or support
structure capable of supporting the weight of the bracket and the switch.
