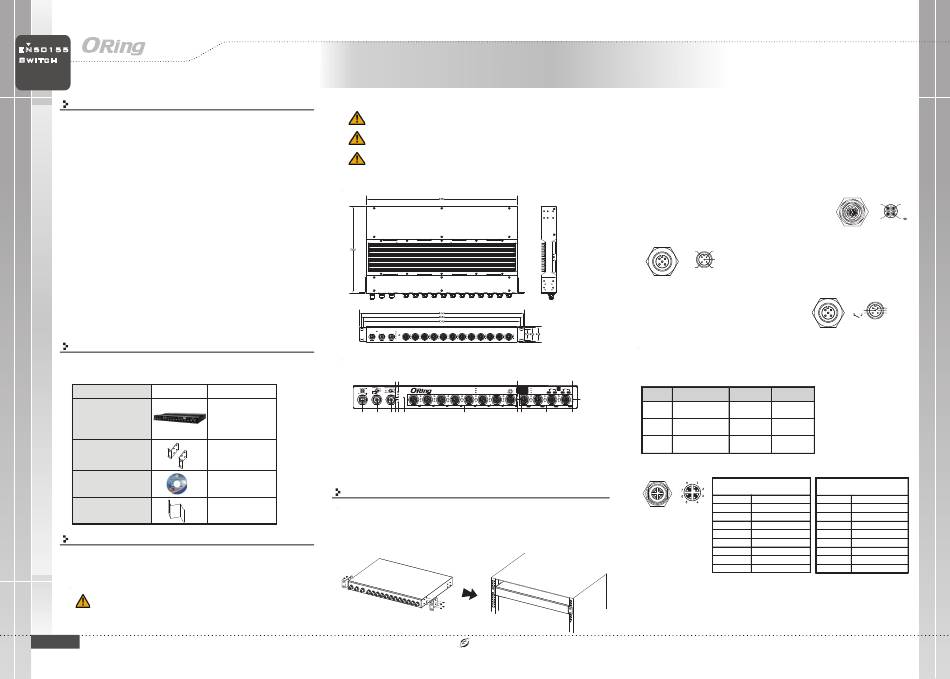

ORiNG TRGPS-9084TG-M12X-BP2-MV Quick Installation Manual

EN50155
Switch
Q I
I N D U S T R I A L
uick nstallation
Rack-Mount
Introduction
ORing's Transporter T M series managed Ethernet switches are designed for
industrial applications such as rolling stock, vehicle, and railway.
TRGPS-9084TG-M12X-BP2-MV, which is compliant with the EN50155
standard, is a managed 10G/2.5G Redundant Ring Ethernet switch with
8x10/100/1000Base-T(X) P.S.E. ports and 4x10GBase-T ports which is
specifically designed for the toughest and fully compliant with EN50155
requirement. The switch support Ethernet Redundancy protocol, O-Ring
(recovery time < 30ms over 250 units of connection), O-Chain and MSTP
(RSTP/STP compatible) can protect your mission-critical applications from
network interruptions or temporary malfunctions with its fast recovery
technology. It is specifically designed for the toughest industrial
environments. TRGPS-9084TG-M12X-BP2-MV
uses M12 connectors to ensure tight, robust connections, and guarantee
reliable operation against environmental disturbances, such as vibration
and shock. TRGPS-9084TG-M12X-BP2-MV
Ethernet, a system to transmit electrical power up to 30 watts, along with
data, to remote devices over standard twisted-pair cable in an Ethernet
n e t w o r k . E a c h T R G P S - 9 0 8 4 T G - M 1 2 X - B P 2 - M V
8x10/100/1000Base-T(X) P.S.E. (Power Sourcing Equipment) ports. P.S.E.
is a device (switch or hub for instance) that will provide power in a PoE
connection. And support wide operating temperature from -40 C to 75 C.
TRGPS-9084TG-M12X-BP2-MV can also be managed centralized and
convenient by Open-Vision, Except the Web-based interface, Telnet and
console (CLI) configuration. Therefore, the switch is one of the most
reliable choice for highly-managed and Ethernet application.
Package Contents
The device is shipped with the following items. If any of these items is
missing or damaged, please contact your customer service representative
for assistance.
Contents Pictures
TRGPS-9084TG-M12X-BP2-MV
Rack-mounted kit (L&R)
CD
QIG
Preparation
Before you begin installing the device, make sure you have all of the
package contents available and a PC with Microsoft Internet Explorer 6.0 or
later, for using web-based system management tools.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed environment, make sure
the operating ambient temperature is compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
Q I G
TRGPS-9084TG-M12X-BP2-MV
TRGPS-9084TG-M12X-BP2-MV
G
uide
Reduced Air Flow: Make sure the amount of air flow required for safe operation of the
equipment is not compromised during installation.
The
Mechanical Loading: Make sure the mounting of the equipment is not in a hazardous
condition due to uneven mechanical loading.
Circuit Overloading: Consideration should be given to the connection of the equipment to
the supply circuit and the effect that overloading of the circuits might have on overcurrent
protection and supply wiring. Appropriate consideration of equipment nameplate ratings
should be used when addressing this concern.
Dimension Unit =mm (Tolerance ±0.5mm)
EN50155 Ethernet switch
also support Power over
s w i t c h h a s
o o
Panel Layouts
3 2
72~110VDC
N.C.
Number
PWR
N/A
R.M
Ring
Fault
Power Relay Console
6 7 8 4 5 1
1
1. Reset button
2. Power status LED
3. R.M. status LED
4. Ring status LED
5. Fault LED
1
6. Power connector
7. Relay output port
8. Console port
1
Installation
Rack-mounting
1
Step 1: Install left and right front mounting brackets to the switch using 4 M3 screws on each side
provided with switch.
Step 2: With front brackets orientated in front of the rack, nest front and rear brackets
together. Fasten together using remaining M4 screws into counter sunk holes.
Step 3: Fasten the front mounting bracket to the front of the rack.
1907-200-Q9084TX2M1-FX021
Front View
12 16
Speed G1~G8 TG1~TG4 10G/1G Power
1.BI_DA+/PoE Vout+ 5.BI_DD+ 1.BI_DA+ 5.BI_DD+ Failure
PoE 5G/2.5G Bypass
2.BI_DA- /PoE Vout+ 6.BI_DD- 2.BI_DA- 6.BI_DD-
TRGPS-9084TG-M12X-BP2-MV LNK/ACT 3.BI_DB+/PoE Vout- 7.BI_DC- 3.BI_DB+ 7.BI_DC- LNK/ACT TG1 TG2 TG3 TG4
4.BI_DB- /PoE Vout- 8.BI_DC+ 4.BI_DB- 8.BI_DC+
Reset 15
G1 G2 G3 G4 G5 G6 G7 G8 TG1 TG2 TG3 TG4
9 10 11 13 14
9. PoE-enabled Gigabit Ethernet ports
10. Link/ACT LED for PoE-enabled Gigabit ports
11. PoE indicator for PoE-enabled Gigabit ports
12. Speed LED for PoE-enabled Gigabit ports
13. 1G/2.5G/ 5G/ 10GBase-T Ethernet ports with bypass
14. Link/ACT LED for non-PoE Gigabit ports
15. LED for 5G/2.5Gbps Ethernet speed indicator
16. LED for 10G/1Gbps Ethernet speed indicator
PRINTED ON RECYCLED PAPER
EN50155 Rack-mount managed
10G/2.5G PoE Ethernet switch
Wiring
For pin assignments of power, console and relay output ports, please refer to the following tables.
Grounding
Grounding and wire routing help limit the effects of noise due to electromagnetic interference
(EMI). Run the ground connection from the grounding pin on the power connector to the grounding
surface prior to connecting devices.
Power port pinouts
The device supports one set of power supply and uses the M12 S-coded
4-pin male connector on the front panel for power input.
Step 1: Insert a power cable to the power connector on the device.
Step 2: Rotate the outer ring of the cable connector until a snug fit is
achieved. Make sure the connection is tight.
Console port pinouts
RXD TXD
N.C.
RSVD GND
RS-232, 115200bps, 8, N, 1
Relay output port pinouts
The switch uses the M12 A-coded 5-pin female connector
on the front panel for relay output. Use a cable with an M12
A-coded 5-pin male connector to connect the relay. The
relay contacts will detect user-configured events and form
an close circuit when an event is triggered.
Network Connection
The switch has eight 10/100/1000Base-T(X) PoE and four 10/100/1000Base-T(X) non-PoE
Ethernet ports in the form of M12 connector. Depending on the link type, the switch uses CAT 3, 4,
5,5e UTP cables to connect to network devices (PCs, servers, switches, routers, or hubs). Please
refer to the following table for cable specifications.
Cable Type Max. Length Connector
8-pin female M12
10BASE-T Cat. 3, 4, 5 100-ohm UTP 100 m (328 ft)
X-coding connector
8-pin female M12
100BASE-TX Cat. 5 100-ohm UTP UTP 100 m (328 ft)
X-coding connector
8-pin female M12
1000BASE-T Cat. 5/Cat. 5e 100-ohm UTP UTP 100 m (328 ft)
X-coding connector
For pin assignments of the Ethernet ports, please refer to the following tables.
1G/2.5G/5G/10GBase-T M12
X-coding
Pin No. Pin Definition
#1 BI_DA+
#2 BI_DA-
#3 BI_DB+
#4 BI_DB-
#5 BI_DD+
#6 BI_DD-
#7 BI_DC-
#8 BI_DC+
Quick Installation Guide
Version 1.1
N.C V+
V-
Relay
N.C.
3A@24VDC
10/100/1000Base-T(X) P.S.E. M12
X-coding
Pin No. Pin Definition
#1 BI_DA+ with PoE Vout+
#2 BI_DA- with PoE Vout+
#3 BI_DB+ with PoE Vout-
#4 BI_DB- with PoE Vout-
#5 BI_DD+
#6 BI_DD-
#7 BI_DC-
#8 BI_DC+
