ORiNG Transporter Series Quick Installation Manual

EN50155
Switch
Q I
I N D U S T R I A L
uick nstallation

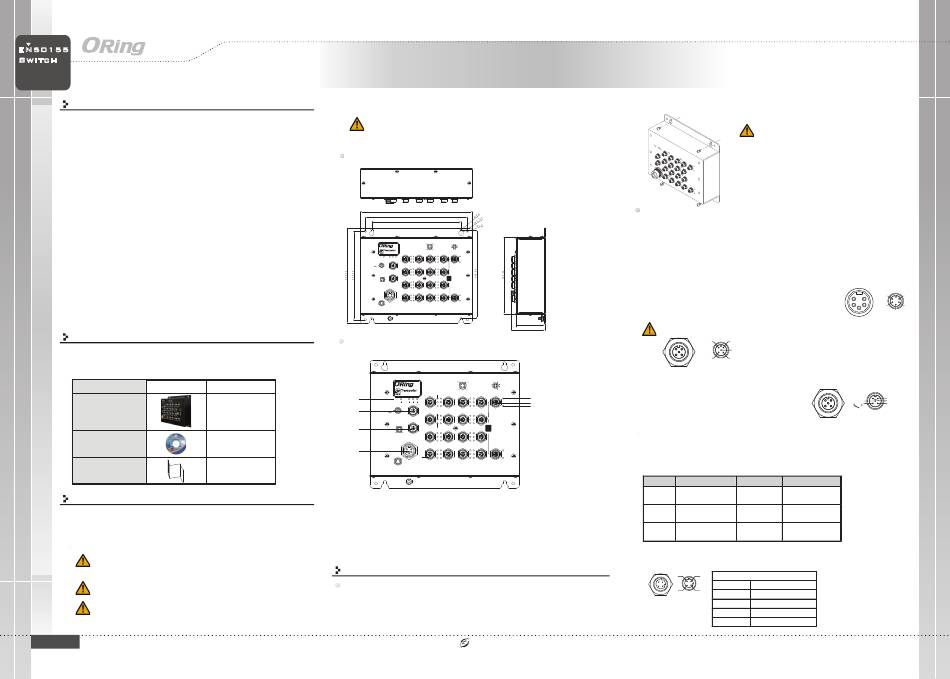

Introduction

T M

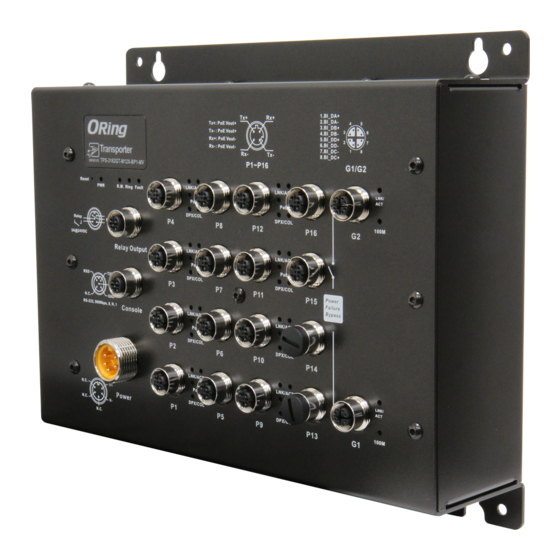

ORing's Transporter series managed Ethernet switches are designed for
industrial applications, such as rolling stock, vehicle, and railway
applications. The TPS-3162GT-M12X-BP1-MV
Redundant Ring Ethernet switch with 16x10/100Base-T(X) P.S.E. and
2x10/100/1000Base-T(X) ports which is specifically designed for the
toughest and fully compliant with EN50155 requirement. With completely
support of Ethernet Redundancy protocol, O-Ring (recovery time < 10ms
over 250 units of connection), O-Chain and MSTP/RSTP/STP (IEEE
802.1s/w/D) can protect your mission-critical applications from network
interruptions or temporary malfunctions with its fast recovery technology.
TPS-3162GT-M12X-BP1-MV also supports Power over Ethernet, a system
to transmit electrical power, along with data, to remote devices over
standard twisted-pair cable in an Ethernet network. Each TPS-3162GT-
M12X-BP1-MV switch has 16X10/100Base-T(X) P.S.E. (Power Sourcing
Equipment) ports. P.S.E. is a device (switch or hub for instance) that will
provide power in a PoE setup. TPS-3162GT-M12X-BP1-MV
Ethernet switch use M12 connectors to ensure tight, robust connections,
and guarantee reliable operation against environmental disturbances, such
as vibration and shock. TPS-3162GT-M12X-BP1-MV
centralized and convenient by a powerful windows utility ~ Open-Vision. In
addition, the wide operating temperature range from -40 C to 75 C can
satisfy most of operating environment. Therefore, the switch is one of the
most reliable choices for rolling stock and highly-managed PoE Ethernet
application.

Package Contents

The device is shipped with the following items. If any of these items is
missing or damaged, please contact your customer service representative
for assistance.
Contents Pictures
TPS-3162GT-M12X-BP1-MV
CD
QIG
Preparation
Before you begin installing the device, make sure you have all of the package
contents available and a PC with Microsoft Internet Explorer 6.0 or later, for
using web-based system management tools.
Safety & Warnings
Elevated Operating Ambient: If installed in a closed environment, make sure
the operating ambient temperature is compatible with the maximum
ambient temperature (Tma) specified by the manufacturer.
Reduced Air Flow: Make sure the amount of air flow required for safe operation
of the equipment is not compromised during installation.
Mechanical Loading: Make sure the mounting of the equipment is not in a
hazardous condition due to uneven mechanical loading.
Q I G
TPS-3162GT-M12X-BP1-MV
TPS-3162GT-M12X-BP1-MV
G
uide
Circuit Overloading: Consideration should be given to the connection of the equipment to
the supply circuit and the effect that overloading of the circuits might have on overcurrent
protection and supply wiring. Appropriate consideration of equipment nameplate ratings
is a managed PoE
should be used when addressing this concern.
Dimension Unit =mm (Tolerance ±0.5mm)
EN50155
TPS-3162GT-M12X-BP1-MV
Reset
PWR R.M. Ring Fault
Relay
N.C.
3A@24VDC
Relay Output
can be managed
RXD TXD
N.C.
N.C. GND
RS-232, 9600bps, 8, N, 1 Console
o o
N.C. V+
Power
N.C. V-
N.C.

Panel Layouts

Number
TPS-3162GT-M12X-BP1-MV
1
Reset
PWR
2
Relay
1 6 N.C.
3A@24VDC
RXD TXD
7
N.C.
RS-232, 9600bps, 8, N, 1
1
8
N.C. V+
N.C. V-
N.C.
1
1. Reset button
2. Power status LED
3. R.M. status LED
4. Ring status LED
5. Fault LED
6. Relay output port
7. Console port
8. Power connector

Installation

Wall-mount

The device can be fixed to the wall. Follow the steps below to install the device on the wall.
Step 1: Hold the d evice upright against the wall
Step 2: Insert four screws through the large opening of the keyhole-shaped apertures at the
top and bottom of the unit and fasten the screw to the wall with a screwdriver.
Step 3: Slide the d evice downwards and tighten the four screws for added stability.
1907-200-J3162X1MV1-FX020
260.00
237.90
207.90
Tx+ Rx+ 1.BI_DA+
2.BI_DA-
Tx+: PoE Vout+ 3.BI_DB+
Tx- : PoE Vout+ 4.BI_DB-
5.BI_DD+
Rx+: PoE Vout- 6.BI_DD-
Rx- : PoE Vout-
Rx- Tx- 7.BI_DC-
8.BI_DC+
P1~P16 G1/G2
LNK/ACT LNK/ACT LNK/
ACT
PoE PoE
DPX/COL DPX/COL
100M
P4 P8 P12 P16 G2
LNK/ACT LNK/ACT
PoE PoE
DPX/COL DPX/COL
P3 P7 P11 P15 Power
Failure
Bypass
LNK/ACT LNK/ACT
PoE PoE
DPX/COL DPX/COL
P2 P6 P10 P14
LNK/ACT LNK/ACT LNK/
ACT
PoE PoE
DPX/COL DPX/COL 100M
P1 P5 P9 P13 G1
68.00 68.00
79.30
Front View
1.BI_DA+
Tx+ Rx+
2.BI_DA-
Tx+: PoE Vout+ 3.BI_DB+
Tx- : PoE Vout+ 4.BI_DB-
5.BI_DD+
Rx+: PoE Vout-
6.BI_DD-
Rx- : PoE Vout- 7.BI_DC-
Rx- Tx-
8.BI_DC+
10 P1~P16 G1/G2
14
LNK/ACT LNK/ACT LNK/
R.M. Ring Fault
ACT 13
3 4 5 PoE PoE
15
DPX/COL DPX/COL
100M
P4 P8 P12 P16 G2
11
LNK/ACT LNK/ACT
Relay Output
PoE PoE
DPX/COL DPX/COL
Power
P3 P7 P11 P15
Failure
N.C. 12
Bypass
GND
LNK/ACT LNK/ACT
Console
PoE PoE
DPX/COL DPX/COL
P2 P6 P10 P14
LNK/ACT LNK/ACT LNK/
ACT
PoE PoE
9
DPX/COL DPX/COL
100M
Power P1 P5 P9 P13 G1
9. PoE Fast Ethernet ports
10. LNK/ACT indicator for PoE Fast Ethernet
port
11. PoE status LED for PoE Fast Ethernet ports
12. Duplex/collision indicator for
PoE Fast Ethernet port
13. Gigabit Ethernet ports with bypass
14. LNK/ACT indicator for Gigabit Ethernet port
15. Speed indicator for Gigabit Ethernet port
PRINTED ON RECYCLED PAPER
EN50155 18-port managed
PoE Ethernet switch
Instead of screwing the screws in all the way, it is
advised to leave a space of about 2mm to allow
room for sliding the switch between the wall and the
screws.

Wiring

For pin assignments of power, console and relay output ports, please refer to the following tables.

Grounding

Grounding and wire routing help limit the effects of noise due to electromagnetic interference
(EMI). Run the ground connection from the grounding pin on the power connector to the grounding
surface prior to connecting devices.

Power port pinouts

The device supports one set of power supplies and uses the 7/8 inch 5-
pin male connector on the front panel for the power input.
Step 1: Insert a power cable to the power connector on the device.
Step 2: Rotate the outer ring of the cable connector until a snug fit is
achieved. Make sure the connection is tight.

Console port pinouts

RXD TXD
N.C.
N.C. GND
RS-232, 9600bps, 8, N, 1

Relay output port pinouts

The switch uses the M12 A-coded 5-pin female connector
on the front panel for relay output. Use a cable with an M12
A-coded 5-pin female connector to connect the relay. The
relay contacts will detect user-configured events and form
an open circuit when an event is triggered.

Network Connection

The switch has sixteen 10/100Base-T(X) and two 10/100/1000Base-T(X) Ethernet ports and 1 x
bypass included the form of M12 connector. Depending on the link type, the switch uses CAT 3, 4,
5,5e UTP cables to connect to network devices (PCs, servers, switches, routers, or hubs). Please
refer to the following table for cable specifications.
Cable Type Max. Length Connector
4-pin female M12 D-coding
10BASE-T Cat. 3, 4, 5 100-ohm UTP 100 m (328 ft)
connector
4-pin female M12 D-coding
100BASE-TX Cat. 5 100-ohm UTP UTP 100 m (328 ft)
connector
8-pin female M12 X-coding
1000BASE-T Cat. 5/Cat. 5e 100-ohm UTP UTP 100 m (328 ft)
connector
For pin assignments of the LAN ports, please refer to the following tables.
4-Pin PoE Port Definition
1 2
Tx+ Rx+
10/100Base-T(X) P.S.E. M12 port
Pin No. Description
Rx- Tx-
#1 Tx+ with PoE Vout+
4 3
#2 Rx+ with PoE Vout-
#3 Tx- with PoE Vout+
#4 Rx- with PoE Vout-
Quick Installation Guide
Version 1.0
N.C. V+
N.C. V-
N.C.
Relay N.C.
3A@24VDC
