OPERATION
2.2.5 Deleting all remotes
1. Long press the P2 button two times and hold the P2 button on the second time until the following sound sequence is
heard.
a. The will be one beep and then followed by a quick and intermittent sound.
b. Continuous sound.
2. Hearing the sound sequence above indicates that the whole memory of the receiver is deleted.
2.2.6 Deleting a remote from a remote. See remote manual for detail on P3 button.
1. Press the P3 button inside the remote three times. There will be slow and intermittent sound.
2. During the intermittent sound, press a button of the remote to be deleted. The deletion is indicated by a continuous
sound.
2.3 RECOMMENDED PROGRAMMING
The recommended programming for the 4-channel remote is as follows:
• Ch1 & Ch2 to be used as a DOUBLE CHANNEL FUNCTION for output L1
• Ch3 & Ch4 to be used as a DOUBLE CHANNEL FUNCTION for output L2

TECHNICAL SPECIFICATION

WIRELESS CONTROLLER
Power Supply
Max Output Power
Reception Frequency
Operating Temperature Range
Maximum Remotes Memorised
Dimensions
Protection Class
The manufacturer reserves the right to modify design features and technical data without notice.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE
Control box does not receive No battery in remote
signals from remote
Control box memory full
Remote not programmed
into control box
All other
8
110/230VAC, 28A
3000W each relay @ 230VAC
1500W each relay @ 110VAC
916MHz
-20/+50°C
42
205 x 145 x 85mm
IP54
REMEDY
Change/Replace with
CR2430 battery.
Delete a remote from control
box memory.
Program remote as per '2.2
OPERATION' section.
Contact your dealer or
qualiied technician.
www.bromicheating.com

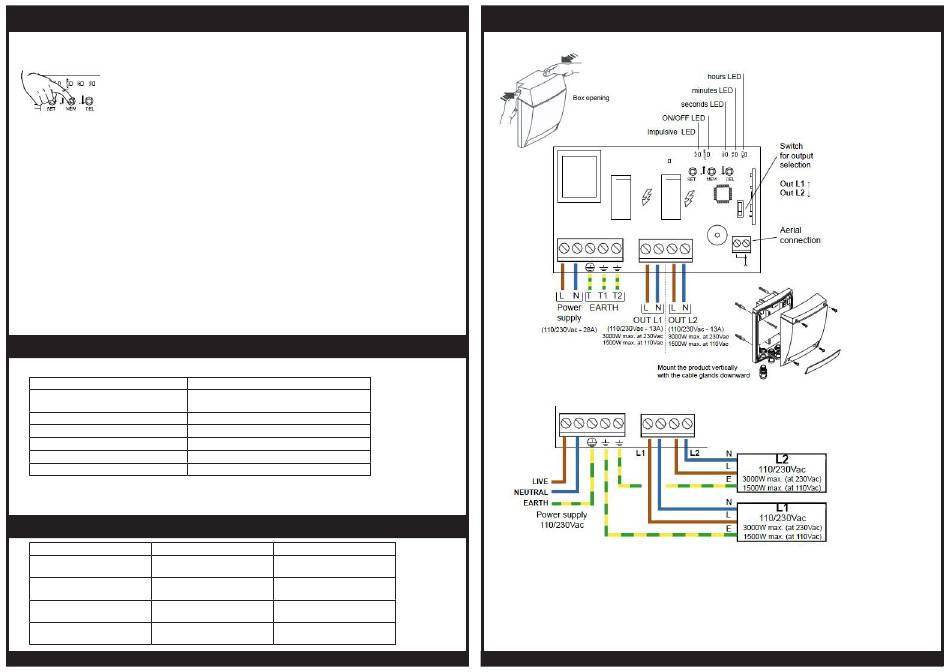

WIRING DIAGRAM
