Programming the Eclipse Master
Remote for use with the Eclipse Dimmer
Controller & Eclipse Portable Heater
Troubleshooting Guide

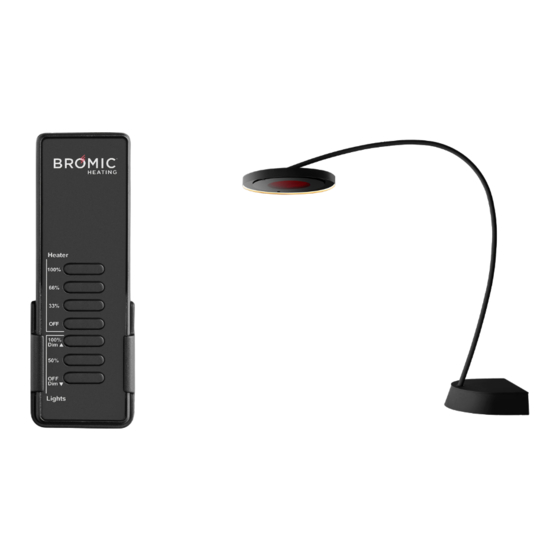

Bromic Eclipse Master Remote
•
US - BH3623002-1
•
AU - 2620662-1
•
EU - BH4623003-1
REQUIREMENTS
The Master Remote features 6 zones as indicated by the red led lights at the top of the remote. Each zone
can be programmed to control a single dimmer or multiple dimmers.
You will need to be in close proximity to the dimmer control and/or portable unit to be able to hear the
audible beeps of the controls during the programming process. You do not need to open the units them-
selves. You will need the individual standard remotes for this process along with the new master remote.
The original individual remotes can be stored to be used as back up. We recommend labeling the remotes
to the corresponding dimmers for future refence.
Bromic Eclipse Dimmer Remote
•
US - BH3230007-1
•
AU - 2620637-1
•
EU - BH3230017-1
Bromic.com
Bromic Eclipse Portable
•
US - BH0820001-1
•
AU - 2620611-1
•
EU - BH0820011
Advertisement
Related Manuals for Bromic Heating Eclipse Master Remote
Summary of Contents for Bromic Heating Eclipse Master Remote
- Page 1 Programming the Eclipse Master Remote for use with the Eclipse Dimmer Controller & Eclipse Portable Heater Troubleshooting Guide Bromic Eclipse Portable Bromic Eclipse Master Remote Bromic Eclipse Dimmer Remote • US - BH0820001-1 • US - BH3623002-1 • US - BH3230007-1 •...
- Page 2 Using a paper clip, press the P3 button. You will hear a continuous beep. Turn the Eclipse Standard Dimmer Remote and the Eclipse Master Remote over and confirm they have the same frequency (916 each) listed on the back label.
- Page 3 4. Paring the Light Functions 5. You can now add additional dimmers to the selected zone to create a group of dimmers or change the zone for individual dimmer control. Repeat steps 3 & 4 listed above for each standard remote to be paired to the master remote. We recommend labeling the standard remotes to match the dimmers and zones for future reference.
