Summary of Contents for vogel's PFW 6885

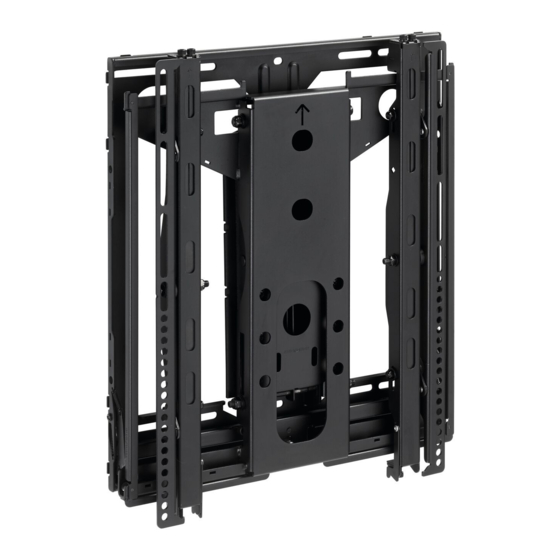

- Page 1 PFW 6885 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids www.vogels.com...
-
Page 2: Included Components
PFW 6885 Maximum Flat Panel Weight: 100 lb. / 45.35 kg. Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Included Components Wall Mount Extension Bracket Bracket (Qty 1) (Qty 1 Pair) (Qty 1 Pair) 5/16” Flat Washers... -
Page 3: Wood Stud Installation
PFW 6885 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Wood Stud Installation Use a stud finder to determine the wall studs in the Use a pencil to mark the upper right mounting location of the wall vicinity of the mount. - Page 4 PFW 6885 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids 1) Level the mount Drill a “pilot hole” in each of the three (3) marks with a power drill and 2) Use a pencil to mark the remaining three (3) mounting locations.
-
Page 5: Concrete Wall Installation
PFW 6885 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Concrete Wall Installation Drill a “pilot hole” in each of the four (4) mark areas with a 3/8” Two people recommended for this step; one person to level the masonry drill bit. -
Page 6: Installing Optional Model Specific Spacers
PFW 6885 large matrix video wall. Make sure the spacer is plumb and level and mark each corner where the PFW 6885 will be mounted (or secure to the wall). It is best to start from the bottom corner and work your way up. -
Page 7: Selecting The Mounting Hardware
Toothpick or Toothpick Mark Mark Securing the Adapters Optional adapters are available with your PFW 6885 mount. Secure the adapters to the PFW 6885 brackets with the supplied (4) M8 washers and (4) M8 nuts. BOTTOM www.vogels.com Page 7... -
Page 8: Universal Washer Installation
PFW 6885 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Universal Washer Installation Universal Washers are designed to accommodate the various M4, M6, and M8 hole sizes required by flat-panels. Do not place excessive pressure on the back of the flat- panel, as this may damage your flat-panel. -
Page 9: Attaching The Mounting Brackets To The Flat-Panel
PFW 6885 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Attaching the Mounting Brackets to the Flat-Panel Secure each mounting bracket to your flat-panel by inserting a minimum of two (2) screws per bracket. Do not over tighten the mounting hardware. -
Page 10: Post-Installation Adjustments
Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Post-Installation Adjustments The PFW 6885 has a set of post-installation adjustments on each mounting bracket (Figure 1). See Note Use the M5 Allen Driver (supplied) to fine-tune adjust. - Page 11 PFW 6885 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Move Inward Left Control Right Control Move Outward Left Control Right Control Tilt Left Left Control Right Control Tilt Right Left Control Right Control www.vogels.com...
- Page 12 PFW 6885 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Positive / Negative Tilt Positive Tilt Negative Tilt Control control Post Leveling (Up) Left Control Right Control Post Leveling (Down) Left Control Right Control www.vogels.com...
- Page 13 PFW 6885 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Use the GAPit GO/No Go Gauge (supplied with model specific spacer) as a final step in the process to inspect and adjust the gap to prevent costly replacement and extend the lifespan of the displays.
-
Page 14: Maintenance
PFW 6885 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Maintenance Push evenly in the front of the PFW 6885 to release the single latch spring lock(Figure 1). Single Latch Spring Lock Figure 1 Servicing Slowly pull the front of the PFW 6885 to extend the scissor arms (Figure 2).
