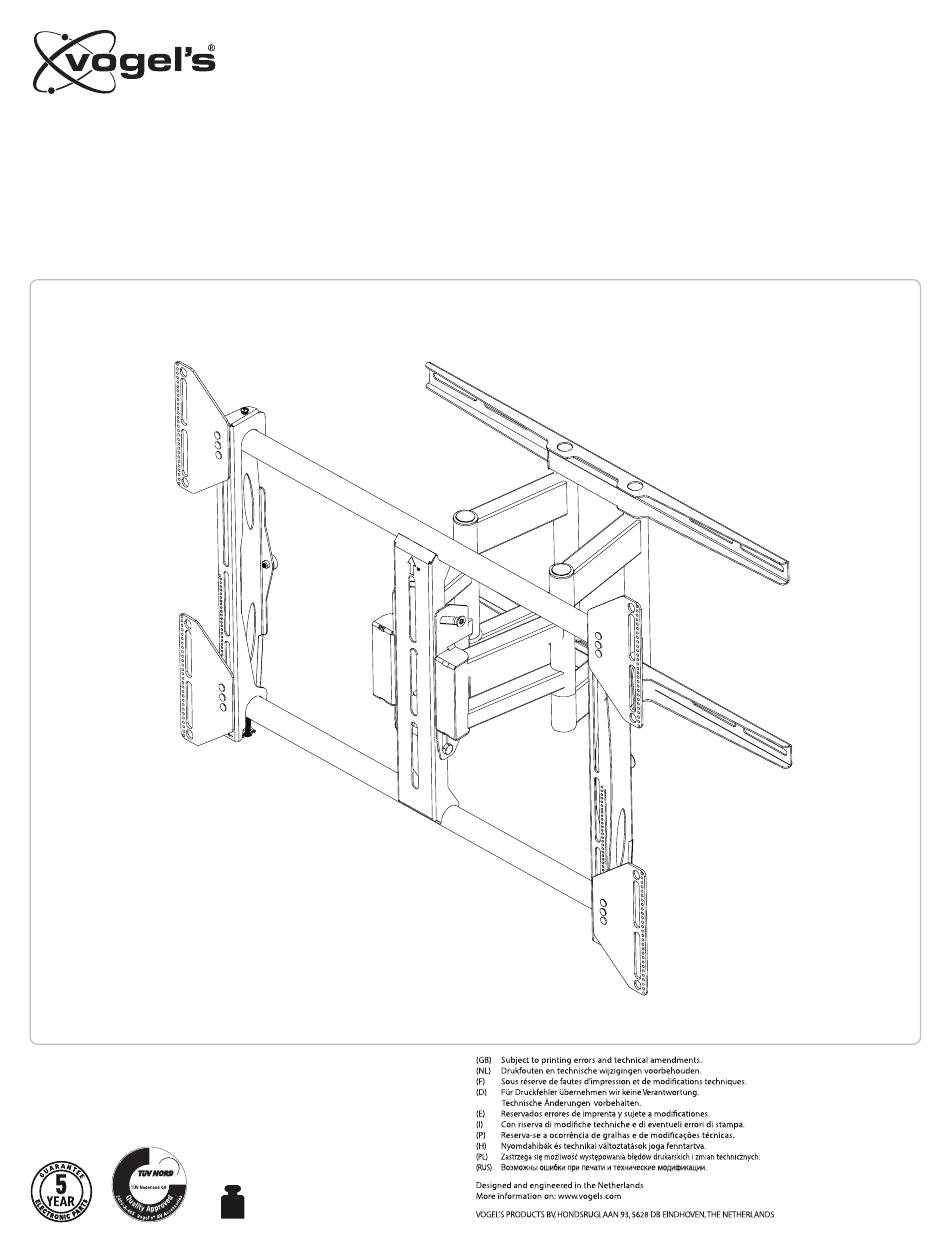

- Page 1 PFW 6851 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Max: 80 kg/175 lbs MOUIN_PFW6851_V02...
-
Page 2: Included Components
PFW 6851 Maximum Flat Panel Weight: 175 lb. / 80 kg. Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Included components x1 Pair M4 x 16mm 5/16" x 3" M4 x 25mm M4 x 30mm Universal Griplate™... - Page 3 PFW 6851 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Two people are recommended for this step; one person to level the Mount and another person to mark the wall stud location. Place the mount against the wall in the desired viewing location. Adjust the mount to align the mount slots in the wall plate with the center of the wall studs.
- Page 4 PFW 6851 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Level the Mount. Use a pencil to mark the remaining three (3) mounting locations along the center of each wall stud. Two people are recommended for this step; one person to level the Mount and another person to drill the pilot holes.
-
Page 5: Concrete Installation
PFW 6851 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Concrete Installation Two people are recommended for this step: one person to level the mount and another person to mark the mounting locations. Drill four (4) pilot holes of each mark using a drill and 3/8” masonary drill bit. -
Page 6: Selecting The Mounting Hardware
PFW 6851 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Selecting the Mounting Hardware Insert a small straw or toothpick into the threaded inserts found on the back of the flat panel. Use a pencil to mark the depth of the threaded insert on the small straw or toothpick. -
Page 7: Universal Washer Installation
PFW 6851 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Universal Washer Installation Universal Washers are designed to accommodate the various M4, M6, and M8 hole sizes required by flat panels. Do not place excessive pressure on the back of the flat panel, as this may damage your flat panel. -
Page 8: Adapter Plate Installation (Optional)
PFW 6851 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Adapter Plate Installation (Optional) The adapter plate can be used with mounting patterns from 200mm x 200mm x to 650mm x 840mm. In the event that you're flat panel has recessed or uneven mounting surface, universal spacers may be stacked to achieve proper spacing. Select the amount of universal spacer (s) that is closest in depth to keep your adapter plate as close to the flat panel as possible. - Page 9 PFW 6851 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Attaching the Flat Panel to the Wall Plate Do not release the flat panel until verifying the connection Two people are required for this step. between the universal brackets and the upper and lower mounting bars.
-
Page 10: Plastic Channel Cover Installation
PFW 6851 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Ajusting the Flat Panel Tilt TO ADJUST THE TILT TENSION OF THE PFW 6851, LOOSEN THE TENSION BOLTS LOCATED ON THE BOTTOM RIGHT AND LEFT SIDE OF THE MAIN ARM ASSEMBLY.
