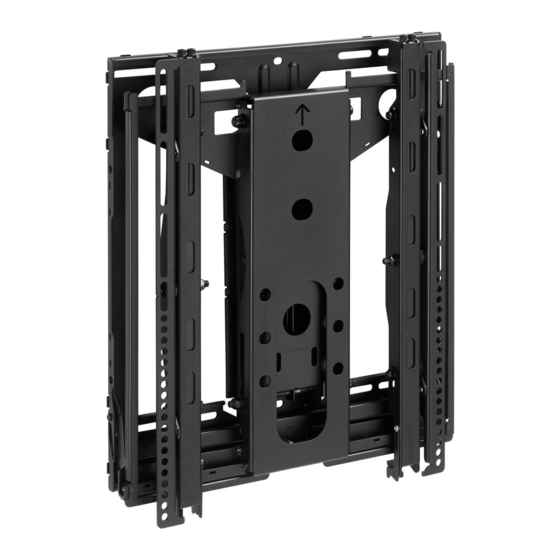

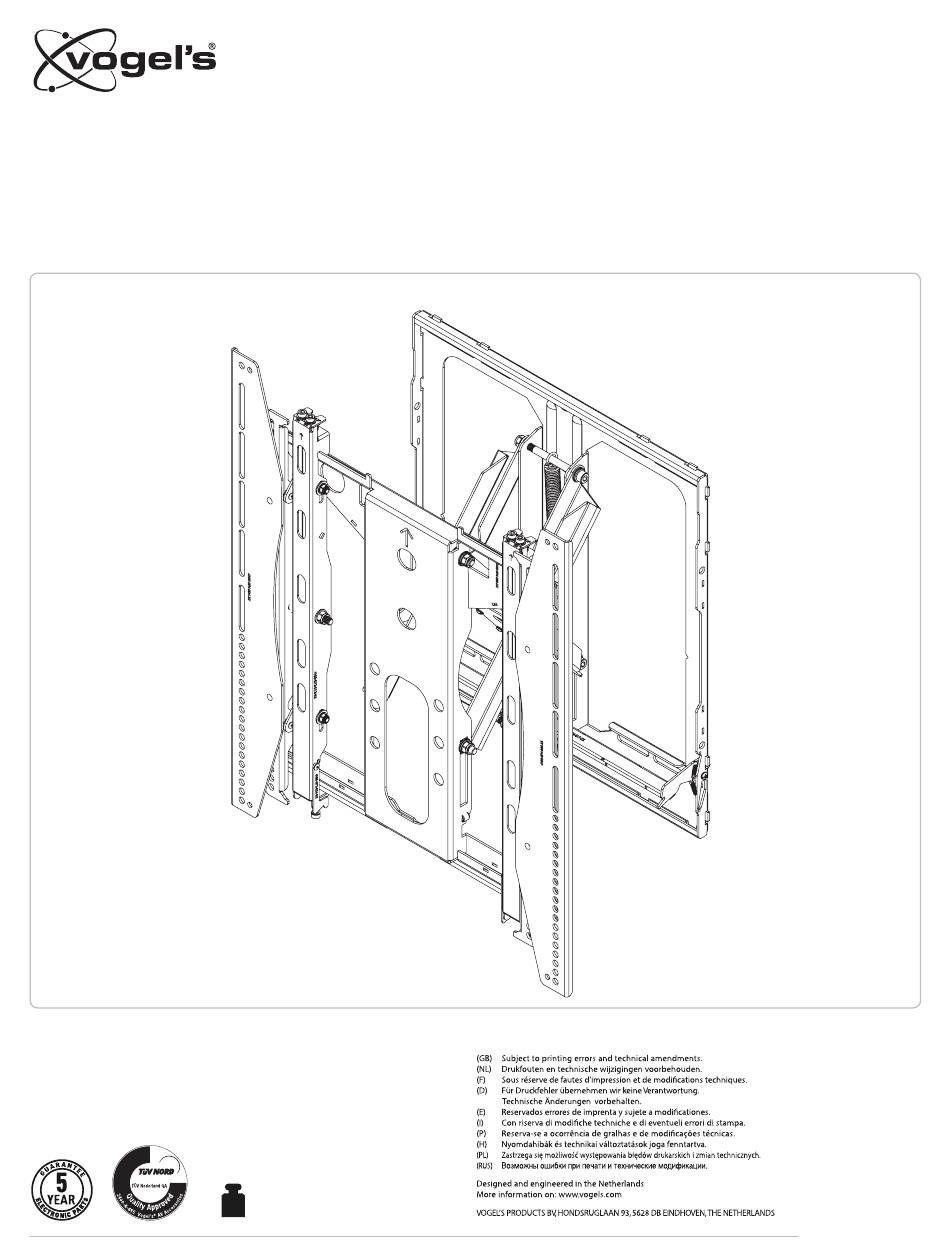

- Page 1 PFW 6885 PFW 6885 Installation Guide Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Guide d’Installation, Installatie gids www.vogels.com | Europe +31 (0)40 26 47 400 Max: 45kg/100lbs...
-
Page 2: Included Components
PFW 6885 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Maximum Flat Panel Weight: Included Components 100 lb. / 45.35 kg. Wall Mount Extension Bracket Bracket (Qty 1) (Qty 1 Pair) (Qty 1 Pair) 5/16” Flat Washers... -
Page 3: Wood Stud Installation
PFW 6885 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Wood Stud Installation Use a pencil to mark the upper right mounting location 1. Use a stud finder to determine the wall studs in of the wall stud. - Page 4 PFW 6885 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids 1. Level the mount Drill a pilot hole in each of the three (3) marks with a 2. Use a pencil to mark the remaining three (3) power drill and a M6 or 1/4”...
-
Page 5: Concrete Wall Installation
PFW 6885 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Concrete Wall Installation Two people recommended for this step; one person Drill a pilot hole in each of the four (4) mark areas to level the mount and another person to mark the with a 3/8”... - Page 6 PFW 6885 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Installing OPTIONAL Model Specific Spacers Level For ease of installation Mount the PFW6885 to the desired location. Model-specific spacers are availible for most flat-panel Align and Level the spacer to the corner register tabs displays.
-
Page 7: Selecting The Mounting Hardware
Selecting the Mounting Hardware Insert a small straw or toothpick into the threaded inserts found on the back of the flat-panel. Use a pencil to mark the depth of the threaded insert on the small straw or toothpick. Mark the straw or toothpick 1/8” above the depth of the threaded insert, as shown in Figure 1. -
Page 8: Universal Washer Installation
PFW 6885 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Universal Washer Installation Universal Washers are designed to accommodate the various M4, M5, M6 and M8 hole sizes required by flat-panels. M5, M6 Place the flat-panel screen-side down on a soft, flat surface. - Page 9 PFW 6885 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Attaching the Flat-Panel to the Mount Mounting bracket adjustments are factory pre-set (see Note). This section requires two people. Do not release the flat-panel prematurely. The top and bottom...
- Page 10 PFW 6885 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids MOVE INWARD Left Right Control Control MOVE OUTWARD Left Right Control Control TILT UP AND/ TILT DOWN AND/ Page 10 www.vogels.com www.vogels.com | Europe +31 (0)40 26 47 400...
- Page 11 PFW 6885 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids LEVEL UP Left Control Right Control LEVEL DOWN Left Control Right Control ROTATE LEFT Left Control Right Control ROTATE RIGHT Left Control Right Control www.vogels.com www.vogels.com...
-
Page 12: Maintenance
PFW 6885 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Maintenance Single Latch Spring Lock Figure 1 1) Push evenly in the front of the PFW6885 to release the single latch spring lock (Figure 1). - Page 13 PFW 6885 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Use the GAPit GO/No Go Gauge (supplied with model specific spacer) as a final step in the process to inspect and adjust the gap to prevent costly replacement and extend the lifespan of the displays.
