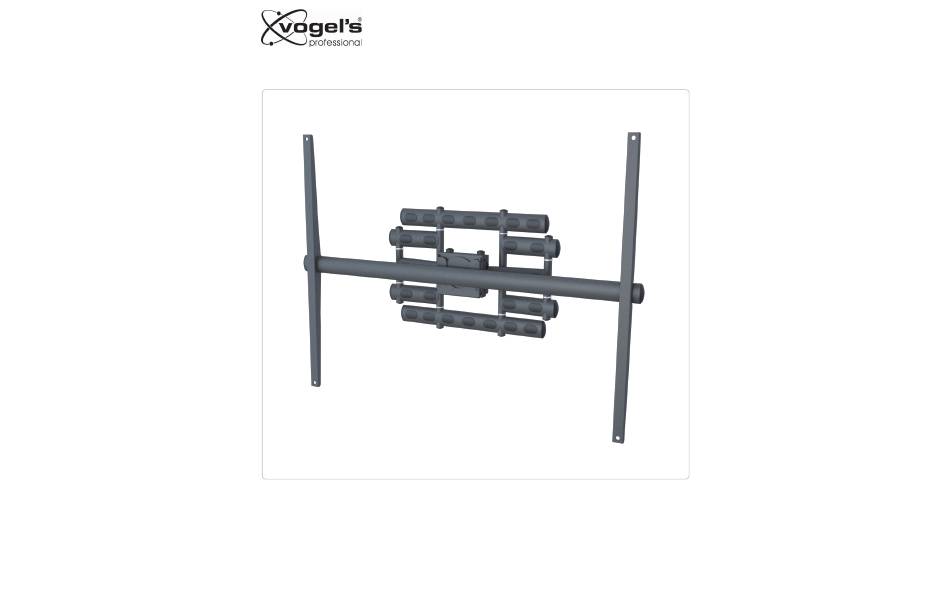

- Page 1 PFW6857 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids www.vogels.com 9531-060-Z02-01...
- Page 2 Note: It is extremely important that this installation be carried out by well qualified installation personal and the mounting surface capable of supported the weight of the display mount together through out the articulating range of the PFW6857 series mount. www.vogels.com 9531-060-Z02-01...
- Page 3 PFW6857 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids With minimum two people place the PFW6857 wall plate Take the mounting template supplied insure the template 4 6A assembly and secure to the wall using the top center hole of is centered and level at the desired height on the mounting the wall plate.
- Page 4 PFW6857 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Remove the two security screws from the right and left side of the mounting bracket crossbar and slide the two mounting brackets inside the left and right side security screw hole and reinstall the two security screws.
- Page 5 PFW6857 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Invert the flat panel display and place it on a smooth flat surface so the back of the display panel is facing up. Align the two mounting bracket to the four mounting points on the rear of the display and secure them bracket to the display with the proper “pitch”...
- Page 6 PFW6857 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Note: appropriate number of personal and possible installa- With the cross bar fully seating into the receiver tion lift aids lift and insert the round portion of the crossbar reinstall the 6mm safety knurl knob.
- Page 7 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids The PFW6857 has a unique “load offset adjustment” feature The two side mounted screws in the receiver head of the that allow for the heavier weight displays to be tilt corrected mount can be adjusted to add or subtract tension in the rota- past base center back to level from top to bottom.
- Page 8 PFW6857 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids ITEM NO. QTY. PART NO. REV DESCRIPTION 3106-000-032-XX 00 WALL BRACKET TUBE WELDED ASSEMBLY (ELLIPTICAL) 3106-000-031-XX 01 DOUBLE ARM TUBE WELDED ASSEMBLY 3106-000-033-XX 00 SHORT ARM WELDED ASSEMBLY (ELLIPTICAL) 2482-21-AM3 01 SHAFT .75 X 12"...
