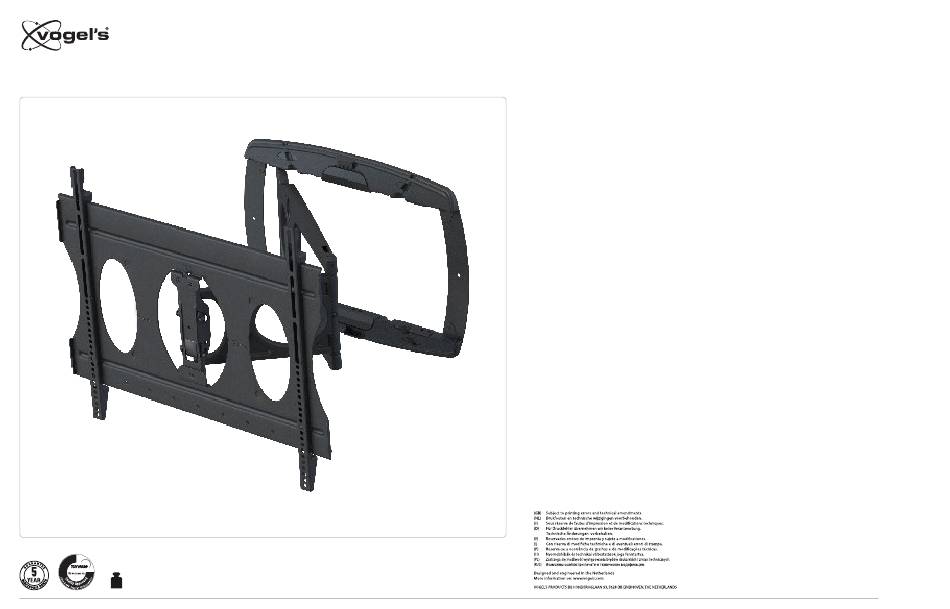

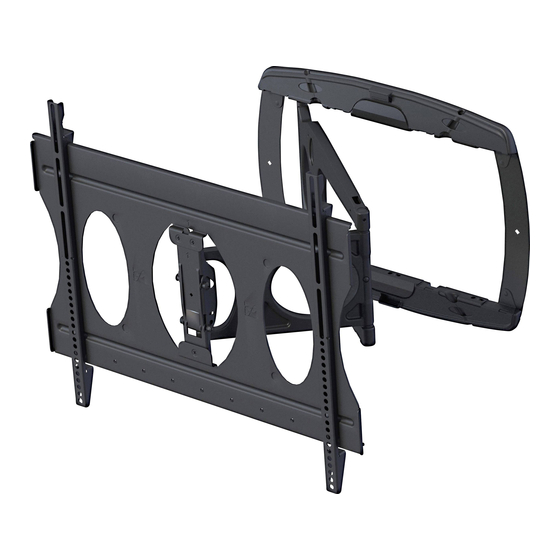

- Page 1 PFW 6850 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Max: 45kg/100lbs MOUIN_PFW6850_V01...
- Page 2 Hammer Leveler Remove the plastic hole covers from the upper and lower Prior to initial step 1 of the installation, your PFW 6850 can Set Screw plates. Loosen the (2) set screws on the plate using the easily have the main “swing left” pivot point of the main swing Locations 2.5mm allen key supplied.
- Page 3 PFW 6850 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Take the thick cardboard mounting template supplied and Using a suitable stud-finder device for frame walls, mark the place the it over the mounting studs with the screen center position of the stud centers.
- Page 4 PFW 6850 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Raise the PFW 6850 assembly so the mounting slots 1. Level the wall mount in following order on figure 6 Wood Stud Concrete Wall are over the four drilled mounting holes. Confirm mount and below.
- Page 5 PFW 6850 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids Once the correct pitch and depth screws are pulled from Place the display face down on a smooth flat surface. Place the hardware pack supplied, secure the two brackets to the...
- Page 6 PFW 6850 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids We recommend where possible that the power and signal Tilting of the display on the mount is easily accomplished by cables be run separately through the mount until mating at placing one hand on top of the display edge center and one the display plug in points to minimize possible “cross talk”...
- Page 7 PFW 6850 Installation Guide Installationsanleitung, Guía de Instalacíon, Guida de Installazione, Guide d’Installation, Installatie gids 26.33 32.20 1.50 23.06 15° 24.80 MAX TILT 1.60 29.49 20.73 15.86 12.56 21.38 16.00 1.00 18.00 1.85 34.16 23.66 (D2) (D2) 10.50 21.00 12.12...
