User manual
Box Contents
Before the installation of your ERT unit, please check the contents of the shipping box, it must contain the following items::
›
ERt unit
›
Power cord
›
User manual
›
Power supply 100-240Vac, 50-60Hz. Output 12V.

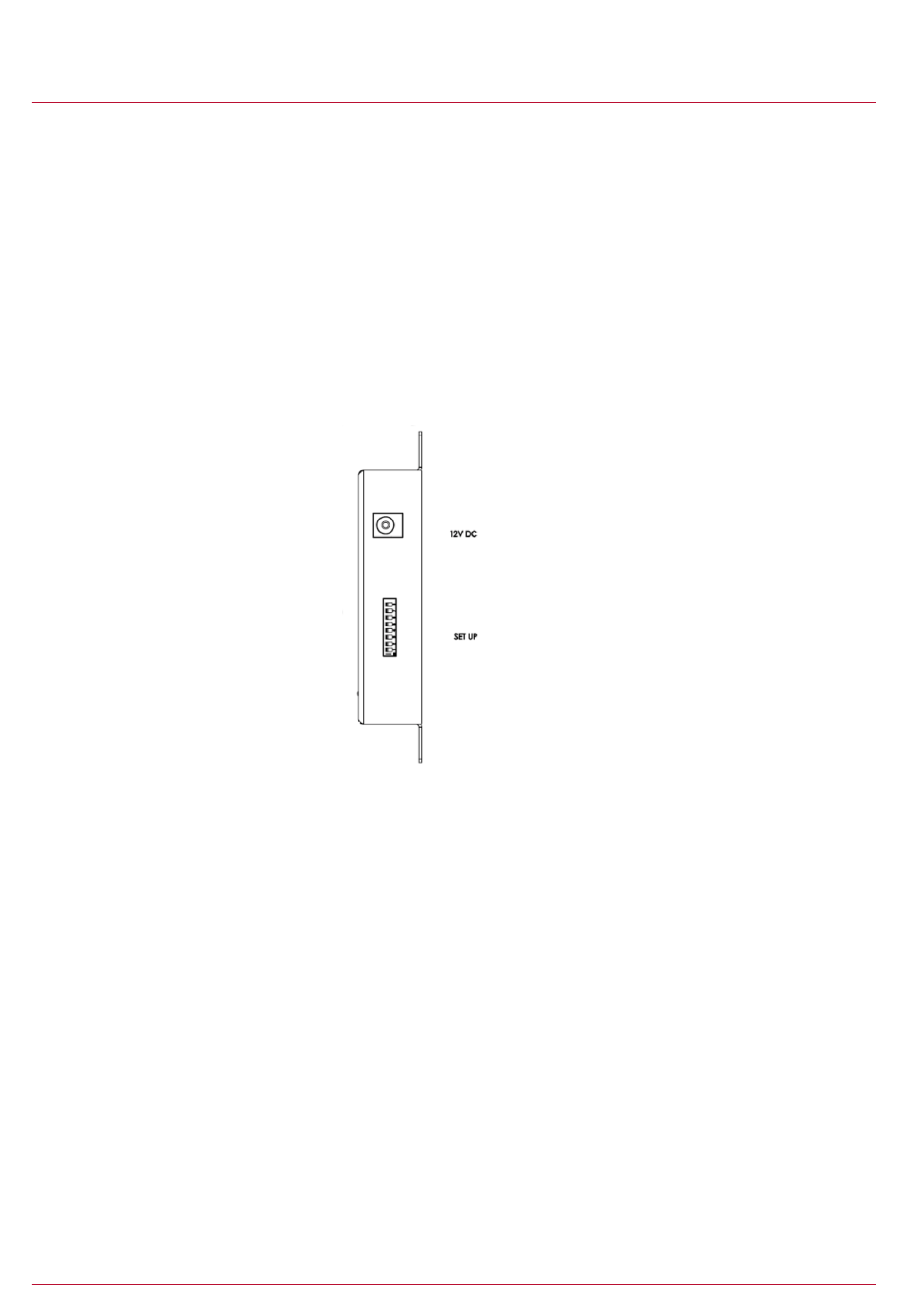

Controls and connectors
12VDC: Power input connector. Plug the power supply supplied
SETUP: Eight deep switches to control and setup the unit
DIP1: Activates the radio signal to control the unit using AHlink APP
DIP2: Activates the automatic AHnet ID configuration on the RS422 bus
DIP3: Not used
DIP4: Activates the firmware upgrade
DIP5: Not used
DIP6: Configures the factory IP address
IP: 192.168.0.128
MASK: 255.255.255.0
GATEWAY: 192.168.0.3
MAC: 70:B3:D5:49:70:00
DIP7: Not used
DIP8: Not used
8
Box Contents and Start
