User manual

AHnet adress configuration

There is an ERT functionality that helps the users to configure the AHnet address. To send AHnet commands to a unit, first
do you need to configure the AHnet address to individually send commands. Installing the unit (monitor, microphone or oth-
er device), do you need to configure a different AHnet address on each unit. The ERT has a utility that helps the assignation
of the AHnet address task
First of all, note that this utility it is only available on devices that has LCD screen configuration. The devices that has AHnet
address rotary switches, don't have this functionality

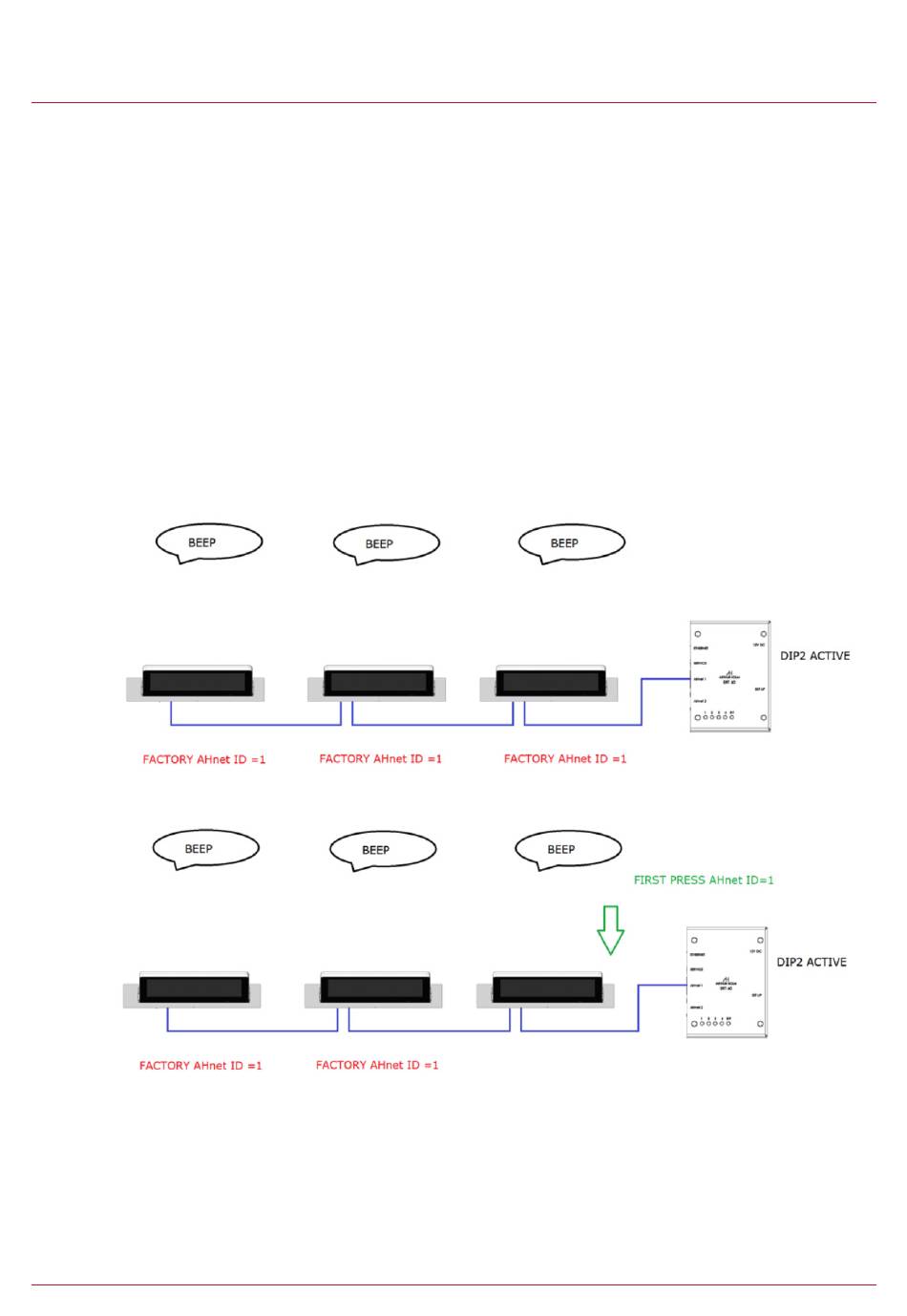

To activate this function, activate DIP2 on SETTINGS ERT switches, and power the unit. The ERT will periodically send a
special AHnet command to configure the AHnet address on each unit. When the units receive the special AHnet address
configuration command, you hear a BEEP sound. Pressing the UP button on unit cover plate, the unit configures her new
AHnet address. The configuration is incremental. First unit that the user pres the UP button, gets AHnet address 1. Second,
AHnet address 2........
16
AHnet adress configuration
