  • Page 1 User manual AERT 30/ ERT 60 › IP TO RS422 Interface control...
  • Page 2 The company Arthur Holm has its origins in the Danish furniture designer Jorgen Alex Jensen, who was active during the sixties and the seventies. His design inspiration and his concept of ergonomics have been continued by his family, the design force behind Arthur Holm product range.
  • Page 3 User manual Welcome Thank you for purchasing an ARTHUR HOLM product. Our product range has been designed to create the perfect meeting room, where the screens are a part of the interior design as well as essential communication tools. Please read these installation and operation instructions carefully and keep them in a safe place for future reference.
  • Page 4: Table Of Contents

    User manual Table of contents EC Normative and Security Norms Box Contents Controls & Connector System Cionfiguration AHNet Adress Configuration AHnet Protocol Disposal Information...
  • Page 5: Ec Normative And Security Norms

    User manual EC Normative and Security Norms ATTENTION: Do not disassemble or modify the device in any way This symbol warns of the presence of dangerous non-insulated voltages inside some of the components, which are high enough to cause risk of electric shock. This symbol draws attention to important use and maintenance instructions in the manual that accompanies the unit.
  • Page 6 User manual EC Normative and Security Norms Wiring connected to hazardous voltage requires installation by qualified personnel or the use of ready-made flexible cables For your safety, your equipment must be connected to an electrical outlet with grounding connection protection The operating electrical outlet must be in an easily accessible place.
  • Page 7 The ERT interface unit, is an Ethernet IP to RS422 interface, in order to use the local network to send AHnet commands to the Arthur Holm or Albiral units. Just only opening an IP ERT port, the system can send AHnet commands by network, and the ERT will send the commands to both of the two RS422 RJ45 buses.
  • Page 8: Box Contents

    User manual Box Contents and Start Box Contents Before the installation of your ERT unit, please check the contents of the shipping box, it must contain the following items:: › ERt unit › Power cord › User manual › Power supply 100-240Vac, 50-60Hz. Output 12V. Controls and connectors 12VDC: Power input connector.

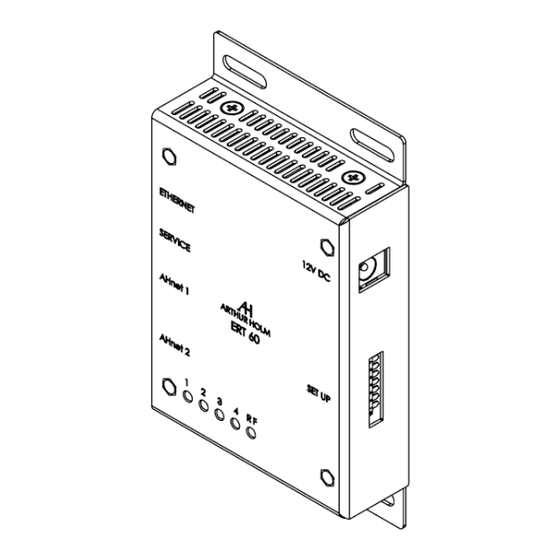

  • Page 9: Controls & Connector

    SERVICE: USBA connector used only to firmware upgrade AHnet1: RJ45 RS422 port. Connect the Arthur Holm or Albiral units to control using AHnet commands AHnet2: RJ45 RS422 port. Connect the Arthur Holm or Albiral units to control using AHnet commands Note: ERT-30 has only one AHNet RS422 port connector.
  • Page 10 User manual Controls & Connector LEDs sytem indicators LED1: Change the state when an AHnet command is received from the two RS422 ports (AHnet1 or AHnet2) 2. LED2: Change the state when the unit receives data from the local network port (ETHERNET) 3.
  • Page 11 Use the ETHERNET unit port to connect the ERT to your local network area. Using this port, opens the 2002 ERT IP port, and send AHnet commands to control the devices connected to RS422 ERT ports (AHnet1 and AHnet2). The Arthur Holm or Albiral units, has an AHnet IN and AHnet OUT port to easily install a RS422 BUS.
  • Page 12 User manual System Configuration On App options, is recommended not select “Auto Connect” and select “Portrait” on “Orientation”. To connect to the device, selects “Scan for local devices” The name always begins by “ERT” characters and the fourth last MAC radio address. Select the device to control and configure the unit...
  • Page 13 User manual System Configuration Selecting the device, the first page is upload on the mobile phone. This page is used to check the device. When the mobile APP is connected to the unit the RF LED brights...
  • Page 14: System Cionfiguration

    User manual System Configuration First line, shows the model name of the device Serial: Serial number of the unit Ver: Firmware version Address: Configure the AHnet Address to send the command. Use address 0 to broadcast the com- mand instruction Dynamic2 Control: Send basic commands to Dy- namic2 monitors family.
  • Page 15 User manual System Configuration Network configuration: Change the network configuration and press “NETWORK INI” button to update the new network settings...
  • Page 16: Ahnet Adress Configuration

    User manual AHnet adress configuration AHnet adress configuration There is an ERT functionality that helps the users to configure the AHnet address. To send AHnet commands to a unit, first do you need to configure the AHnet address to individually send commands. Installing the unit (monitor, microphone or oth- er device), do you need to configure a different AHnet address on each unit.
  • Page 17 User manual AHnet adress configuration...
  • Page 18: Ahnet Protocol

    User manual AHnet protocol AHnet Protocol: Using 5 bytes to communication: BYTE 0 is the header and should always FA in HEX mode BYTE 1 is the unit AHnet address to send the command. To send the command to all the devices, there are special AHnet address used as broadcast.
  • Page 19 User manual AHnet protocol Dynamic2 family ZZ Value (0-99Dec) XX AHnet address Broadcast XX=F9...
  • Page 20 User manual AHnet protocol Dynamic 3 family ZZ Value (0-99Dec) XX AHnet address Broadcast XX=F8 Dynamic Talk XX: AHnet address Broadcast XX=F7...
  • Page 21 User manual Information on Disposal for Users of Waste Electrical & Electronic Equipment This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery and recycling, please take these products to des- ignated collection points, where they will be accepted on a free of charge basis.
  • Page 22 08512 Barcelona - Spain Tel.: +34 93 850 23 76 / 23 83 Fax: +34 93 850 25 50 www.arthurholm.com marketing@arthurholm.com This manual can be modified without previous notice Arthur Holm is a registered brand by Albiral Display Solutions S.L.
